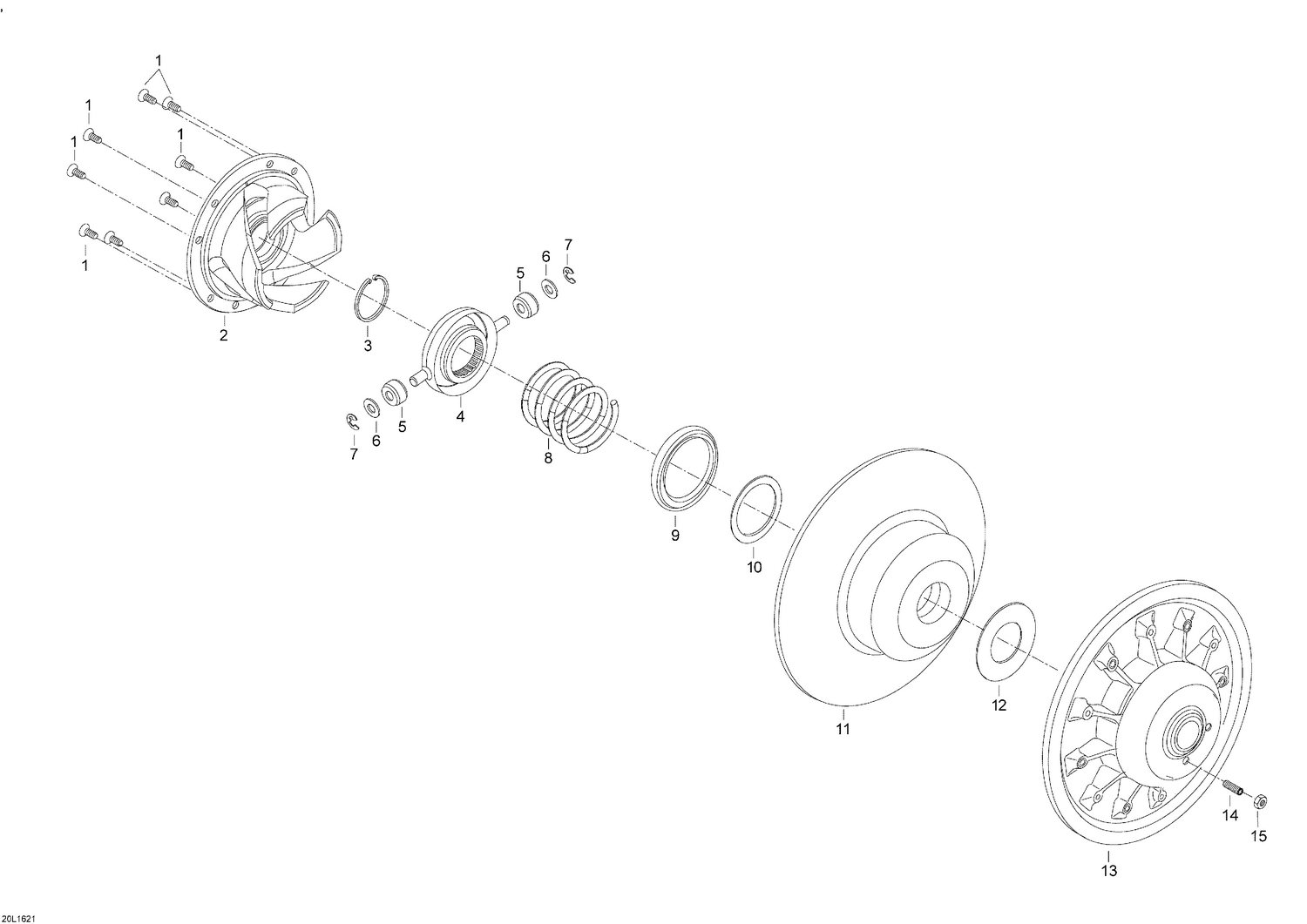

05- Driven Pulley
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 619100011 | Torx Screw |
| 2 | Not | Available As Spare Part - Cam |
| 3 | 619100018 | Circlip |
| 4 | Not | Available As Spare Part - Spider |
| 5 | 415128853 | Roller |
| 6 | 619100019 | Thrust Qasher |
| 7 | 619100020 | Circlip |
| 8 | Not | Available As Spare Part - Spring |
| 9 | Not | Available As Spare Part - Thrust Washer |
| 10 | 619100022 | Plain Washer |
| 11 | Not | Available As Spare Part - Sliding Flange Ass'y |
| 12 | Not | Available As Spare Part - Spacer |
| 13 | Not | Available As Spare Part - Fixed Flange Ass'y |
| 14 | 619100014 | Set Screw M6 x 30 |
