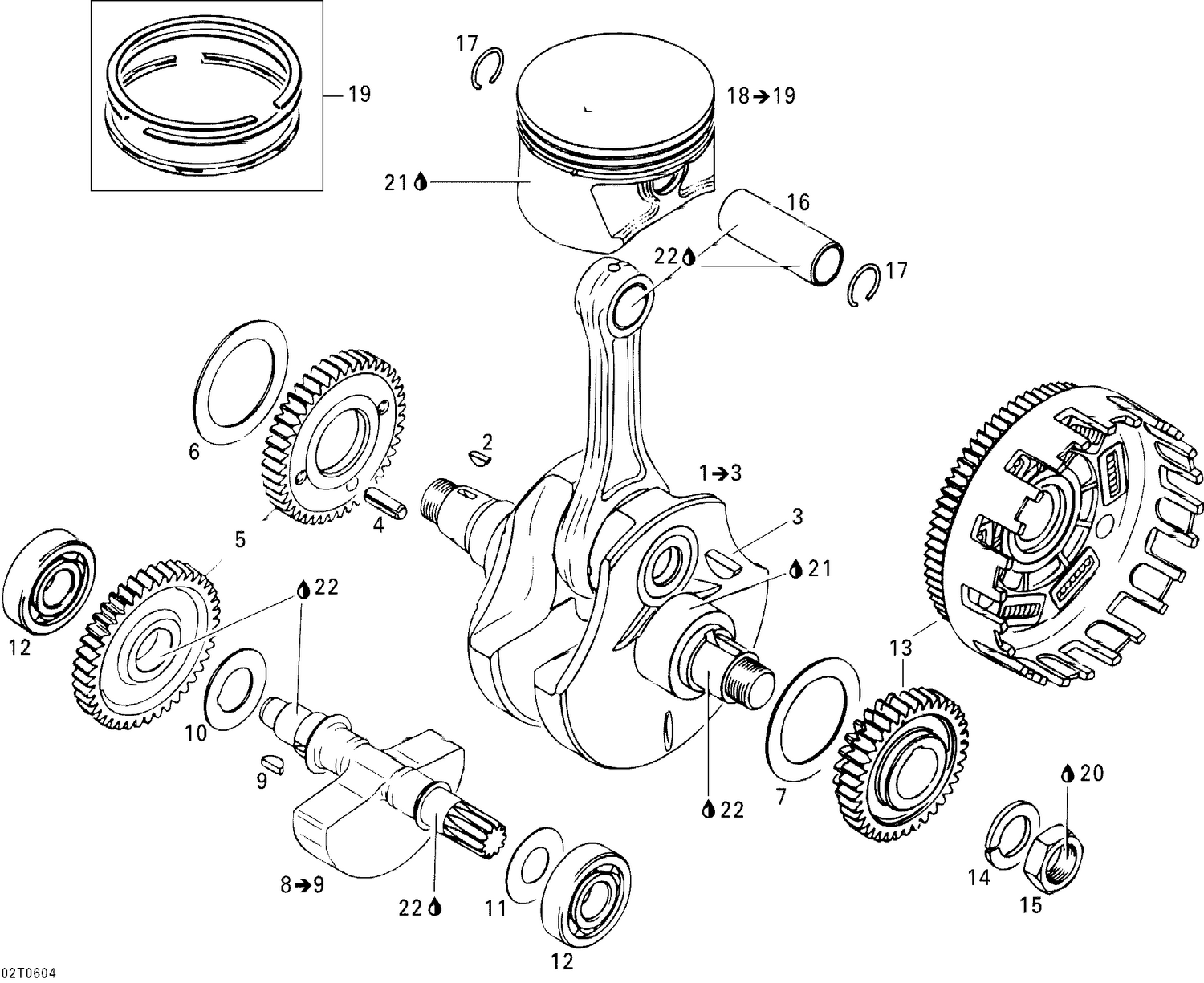

| Ref | Part Number | Description |
|---|
| 2 |
420246570 |
Woodruff Key 4 X 5 |
| 3 |
420946015 |
WOODRUFF KEY 6 X 9 - Call your local BRP dealership |
| 4 |
732804009 |
Pin M8 X 24 |
| 5 |
420294478 |
BALANCE GEAR ASS'Y - Call your local BRP dealership |
| 6 |
420627030 |
Shim 48/67/1 |
| 7 |
420627031 |
Shim 48/67/1,25" |
| 7 |
420627032 |
SHIM 48/67/1,5 - Call your local BRP dealership |
| 7 |
420627033 |
Shim 48/67/1,75" |
| 7 |
420627035 |
Shim 48/67/1,4 - Call Your Local BRP Dealership |
| 9 |
420246570 |
Woodruff Key 4 X 5 |
| 10 |
420227542 |
THRUST WASHER 24,3/41/1 - Call your local BRP dealership |
| 11 |
420627070 |
THRUST WASHER 20/41/0,8 - Call your local BRP dealership |
| 11 |
420627071 |
THRUST WASHER 20/41/1 - Call your local BRP dealership |
| 11 |
420627072 |
THRUST WASHER 20/41/1,2 - Call your local BRP dealership |
| 11 |
420627073 |
THRUST WASHER 20/41/1,4 - Call your local BRP dealership |
| 12 |
420932090 |
BALL BEARING - Call your local BRP dealership |
| 13 |
420296365 |
PRIMARY DRIVE ASS'Y - Call your local BRP dealership |
| 14 |
420945759 |
Lock Washer, 22 mm |
| 15 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 16 |
420216201 |
PISTON PIN - Call your local BRP dealership |
| 17 |
420245435 |
CIRCLIP #22 - Call your local BRP dealership |
| 19 |
420295184 |
Piston Ring Set |
| 20 |
293800060 |
Loctite 243, 10 ml |
| 21 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039. |
