| Ref | Part Number | Description |
|---|
| 2 |
0125457 |
HOUSING |
| 3 |
0125456 |
HOUSING |
| 4 |
0173598 |
TRAY |
| 5 |
0123261 |
SHAFT, Remote control |
| 6 |
0123496 |
DRIVE GAR, Starboard |
| 8 |
0123265 |
SPRING, Drive gear |
| 9 |
0123266 |
BRUSHING, Shaft to housing |
| 10 |
0123267 |
WASHER |
| 11 |
0123268 |
ROLLER Throttle cam |
| 12 |
0123269 |
WASHER |
| 13 |
0123270 |
CAM Neutral switch |
| 14 |
0173587 |
FIRCTION CONTROL |
| 15 |
0909859 |
SCREW, Control housing |
| 17 |
0123274 |
SCREW, Tray to housing |
| 18 |
0123278 |
HANDLE |
| 19 |
0125198 |
KNOB, Binnacle |
| 20 |
0125394 |
KNOB Trim switch |
| 24 |
0123610 |
COVER, Handle |
| 25 |
0125393 |
GROMMET TRIM SWITCH |
| 26 |
0124885 |
COVER, Remote control |
| 29 |
0123324 |
RETAINER, Trim |
| 30 |
0123340 |
SCREW, Retainer |
| 32 |
0123342 |
SHOE Detent roller |
| 33 |
0123343 |
TRIM INSERT |
| 34 |
0123350 |
BUSHING |
| 35 |
0173571 |
THROTTLE CAM & ARMS ASSY. |
| 36 |
0173478 |
THROTTLE CAM & ARM ASSY. |
| 37 |
0173480 |
NEUTRAL START SWITCH |
| 38 |
0176406 |
TRIM SWITCH & LEAD ASSY. |
| 40 |
0176392 |
LEAD ASSY., Neutral start switch |
| 42 |
0513370 |
TERMINAL |
| 45 |
0173581 |
CABLE MOUNT HARDWARE KIT |
| 48 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 51 |
0124890 |
BRACKET |
| 52 |
0124891 |
CLAMP, Cable assy |
| 53 |
0175819 |
SWITCH, Ignition cutoff |
| 57 |
0176414 |
CABLE ASSY., Key switch |
| 70 |
0330184 |
VIS, montage pompe This part replaces 0306259. |
| 73 |
0125005 |
BEZEL, Ignition switch |
| 74 |
0309164 |
WASHER, Choke plate to adapter |
| 75 |
0124894 |
SCREW, Control mounting |
| 76 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 78 |
0328717 |
NUT, Ground lead |
| 84 |
0173542 |
SHAFT GEAR & ARMS ASSY |
| 86 |
0308335 |
CLAMP, Coil |

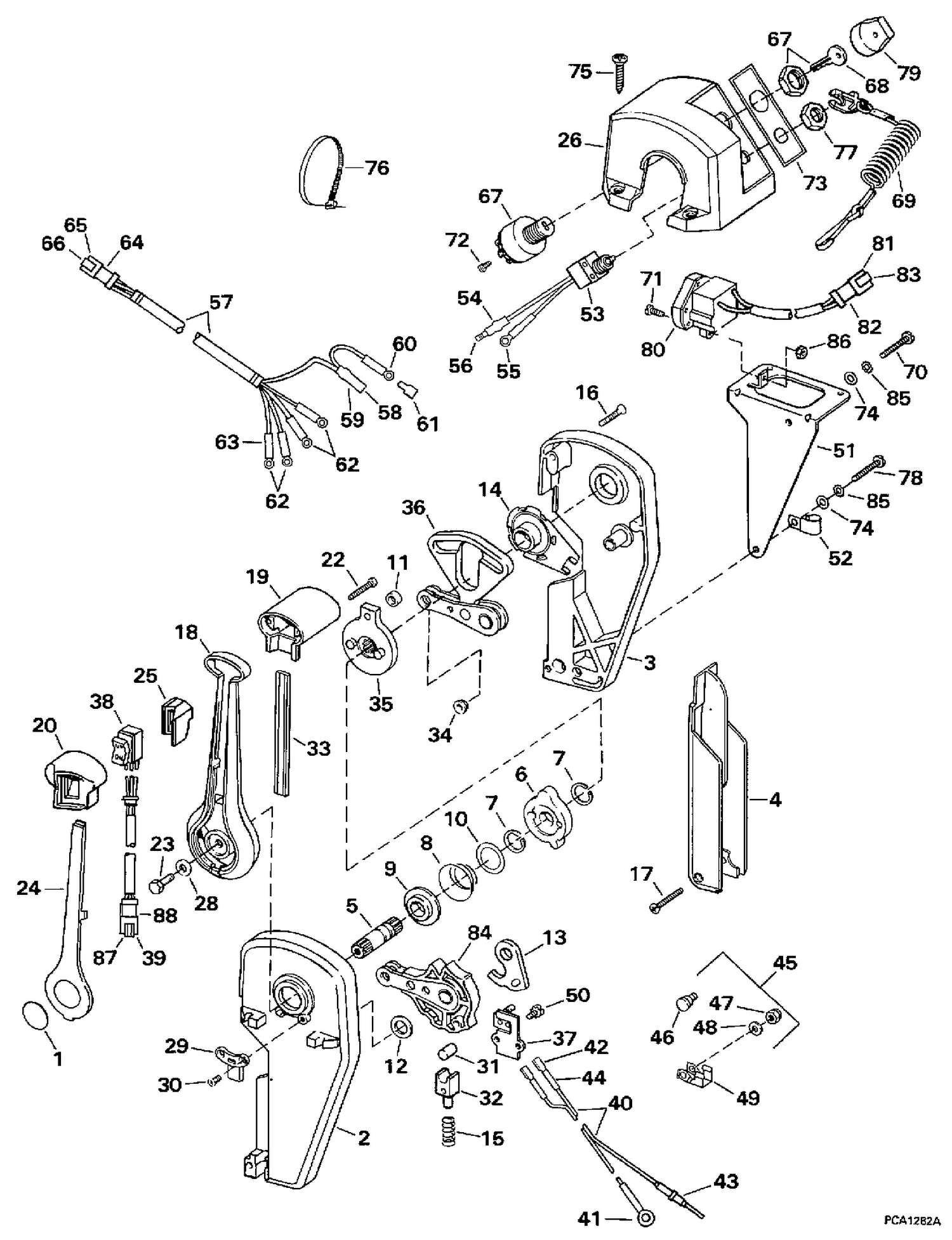

| 0176376 |
0176376 |
REMOTE CONTROL ASSY. |
