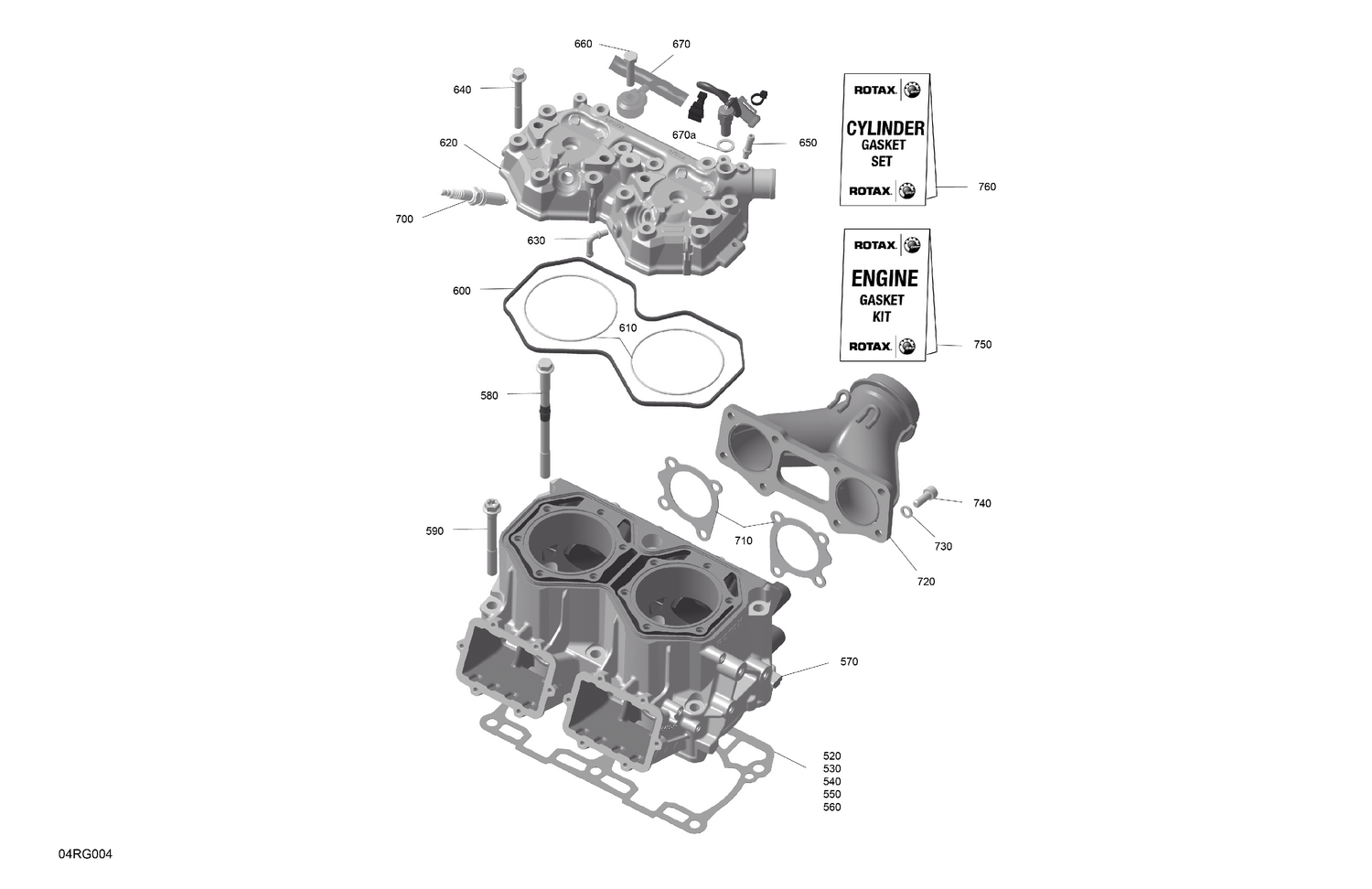

01- ROTAX - Cylinder
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 520 | 420831022 | Double Gasket 0.7MM |
| 530 | 420831023 | Double Gasket 0.8MM |
| 540 | 420831024 | Double Gasket 0.9MM |
| 550 | 420831020 | Double Gasket 0.5MM |
| 560 | 420831021 | Double Gasket 0.6MM |
| 570 | 420413575 | Cylinder Block Plasma |
| 580 | 420641762 | Hex. Flanged Screw M10 X 150 |
| 590 | 420441187 | Flanged Torx Screw M10 X 90 -SW 13/T50 |
| 600 | 420430041 | Square Ring |
| 610 | 420931410 | O-Ring |
| 620 | 420413308 | Head Cylinder Cover |
| 630 | 420924802 | Fittin 90D |
| 640 | 420640959 | Collar Hex Screw M8 X 68.5 |
| 650 | 420924724 | Hose Nipple |
| 660 | 207083544 | Hex. Screw M8 X 35 |
| 670a | 420250016 | Aluminum Sealing Ring |
| 700 | 415130651 | Spark Plug NGK ILKR8Q7 |
| 710 | 420430486 | Gasket |
| 720 | 420873032 | Exhaust Manifold |
| 730 | 420427290 | Washer |
| 740 | 420841051 | Allen Screw M8 X 22 |
| 750 | 420894376 | Engine Gasket Set |
