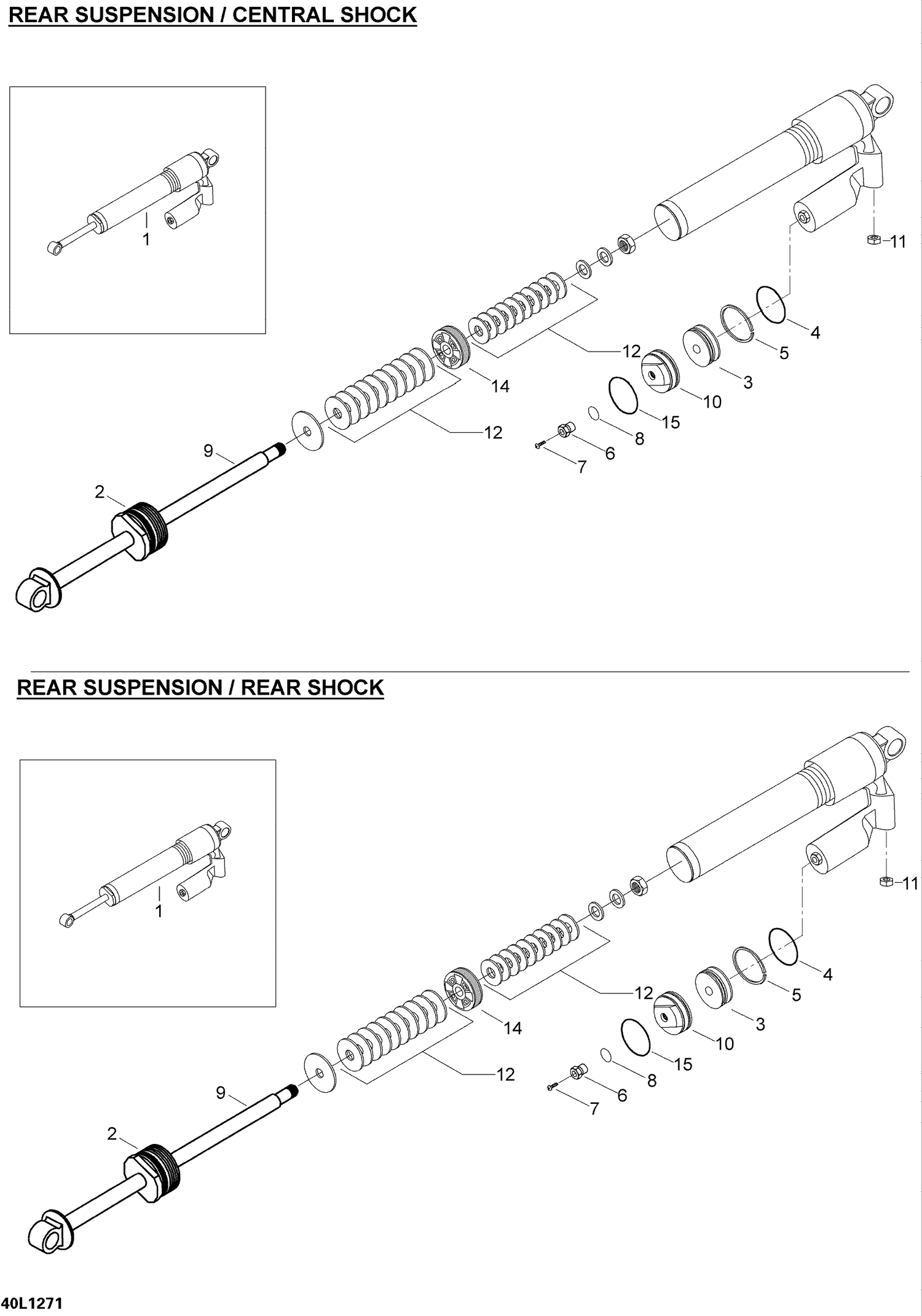

08- Rear Shocks

08- Rear Shocks

Parts (76)

RefPart NumberDescription
1 503193039 Shock, front arm (cal.503193039)
1 503193041 Shock, rear arm (cal.503193041)
2 230060 Seal carrier assy
3 Not Available As Spare Part - Floating piston
4 415093807 O-Ring
5 503189006 PISTON RING - Call your local BRP dealership
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 619300013 Rod ass'y, front arm
9 Not Available As Spare Part - Rod ass'y, rear arm
10 619300009 Seal carrier assy
11 619300015 Valve ass'y
12 230029 Shim 46 mm. 20 X 0,114
12 230030 Shim 46 mm. 20 X 0,152
12 230031 Shim 46 mm. 20 X 0,203
12 230032 Shim 46 mm. 20 X 0,254
12 230033 Shim 46 mm. 34 X 0,114
12 230034 Shim 46 mm. 34 X 0,152
12 230035 Shim 46 mm. 34 X 0,203
12 230036 Shim 46 mm. 34 X 0,254
12 230037 Shim 46 mm. 36 X 0,114
12 230040 Shim 46 mm. 38 X 0,152
12 230041 Shim 46 mm. 38 X 0,203
12 230042 Shim 46 mm. 38 X 0,254
12 230082 Shim 46 mm. 32 X 0,114
12 503189015 Leaf Valve Ø22 X 0.305 (C46)
12 503189016 Leaf Valve Ø24 X 0.114 (C46)
12 503189017 Leaf Valve Ø24 X 0.152 (C46)
12 503189018 Leaf Valve Ø24 X 0.203 (C46)
12 503189020 Leaf Valve Ø24 X 0.305 (C46)
12 503189021 Leaf Valve Ø26 X 0.114 (C46)
12 503189023 Leaf Valve Ø26 X 0.203 (C46)
12 503189027 Leaf Valve Ø28 X 0.152 (C46)
12 503189030 Leaf Valve Ø28 X 0.305 (C46)
12 503189033 Leaf Valve Ø30 X 0.203 (C46)
12 503189036 Leaf Valve Ø36 X 0.152 (C46)
12 503189038 Leaf Valve Ø36 X 0.254 (C46)
12 503189039 Leaf Valve Ø40 X 0.152 (C46)
12 619300022 Shim 46 mm. 32 X 0,305
12 619300056 Shim 46 mm. 30 X 0,305
12 619300059 Shim 46 mm. 32 X 0,254
12 619300060 Shim 46 mm. 17 X 0,114
12 619300067 Shim 46 mm. 18 X 0,152
12 619300068 Shim 46 mm. 18 X 0,114
12 619300069 Shim 46 mm. 17 X 0,203
12 619300070 Shim 46 mm. 34 X 0,305
12 619300095 Shim 46 mm. 24 X 0,254
12 619300097 Shim 46 mm. 20 X 0,305
12 619300098 Shim 46 mm. 22 X 0,203
12 619300099 Shim 46 mm. 26 X 0,254
12 619300100 Shim 46 mm. 26 X 0,305
12 619300101 Shim 46 mm. 28 X 0,114
12 619300102 Shim 46 mm. 28 X 0,203
12 619300103 Shim 46 mm. 28 X 0,254
12 619300104 Shim 46 mm. 30 X 0,152
12 619300105 Shim 46 mm. 36 X 0,305
12 619300106 Shim 46 mm. 38 X 0,305
12 619300107 Shim 46 mm. 40 X 0,305
12 619300112 Shim 46 mm. 40 X 0,203
12 619300113 Shim 46 mm. 30 X 0,254
12 619300133 Shim 46 mm. 22 X 0,114
12 619300134 Shim 46 mm. 22 X 0,254
12 619300135 Shim 46 mm. 30 X 0,114
12 619300136 Shim 46 mm. 40 X 0,254
12 619300137 Shim 46 mm. 32 X 0,152
12 619300138 Shim 46 mm. 32 X 0,203
12 619300140 Shim 46 mm. 22 X 0,152
12 619300141 Shim 46 mm. 26 X 0,152
12 619300142 Shim 46 mm. 36 X 0,203
12 Not Available As Spare Part - Shim 46 mm. 17 X 0,152
14 230039 Piston 2.0 mm
14 230043 Piston 0 mm.
14 503189002 Piston, Ø1.7 (C46)
14 503189003 Piston, Ø1.2 (C46)
14 Not Available As Spare Part - Piston 2.2 mm
