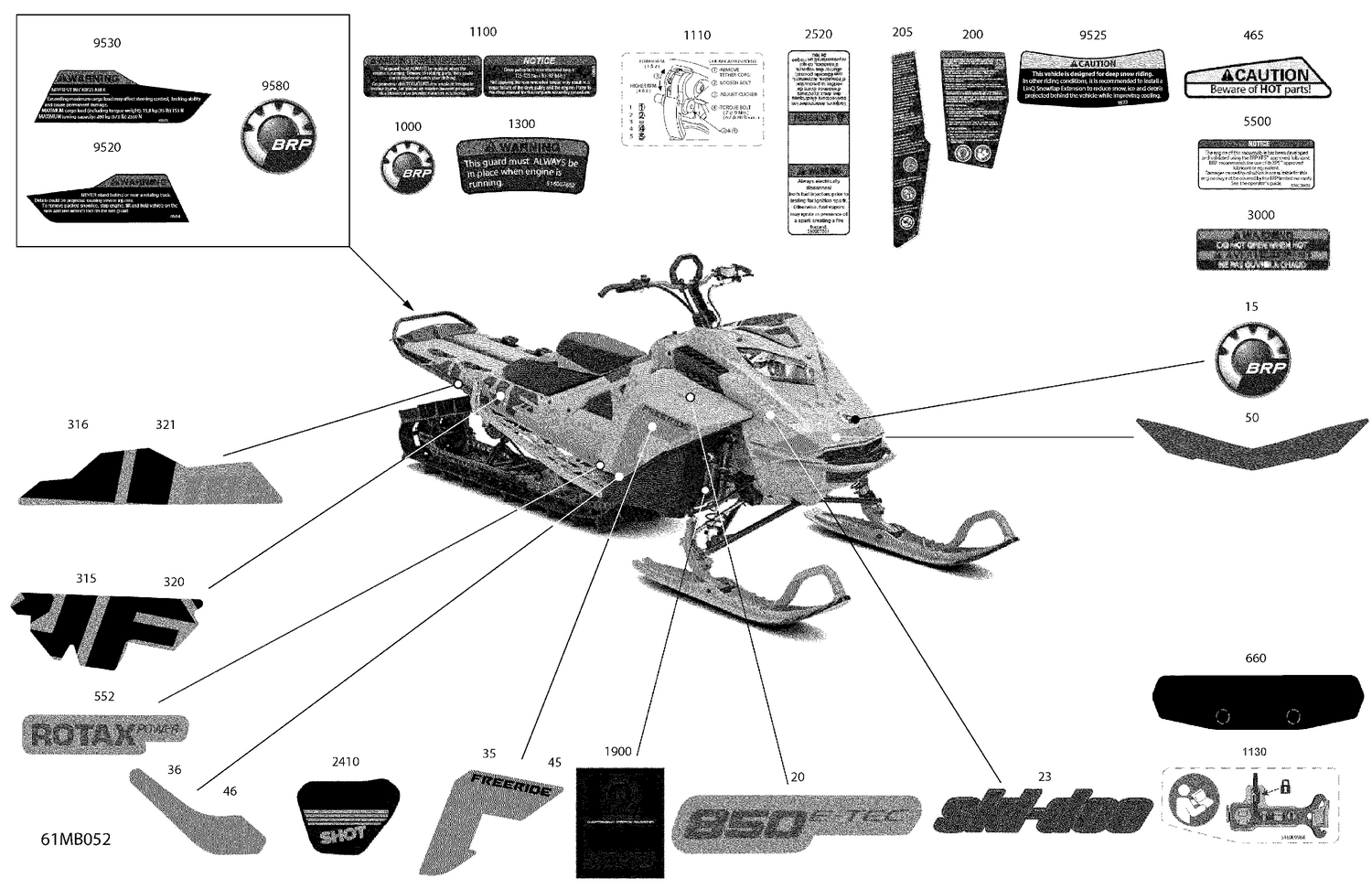

07- Body - Decals
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 704909041 | BRP Logo Emblem 68 MM UV |
| 20 | 516010920 | Decal "850 E-TEC" |
| 23 | 516010922 | Decal "Ski-Doo" |
| 35 | 516010919 | RH Central Panel Decal "Freeride" |
| 36 | 516010917 | RH Lower Panel Decal |
| 45 | 516010918 | LH Central Panel Decal "Freeride" |
| 46 | 516010916 | LH Lower Panel Decal |
| 50 | 516010923 | Front Hood Decal |
| 200 | 516010681 | LH General Warning Label |
| 205 | 516010924 | RH General Warning Label |
| 315 | 516010914 | RH Central Tunnel Decal |
| 316 | 516010912 | RH Tunnel Decal "165" |
| 320 | 516010913 | LH Central Tunnel Decal |
| 321 | 516010911 | LH Tunnel Decal "165" |
| 465 | 516009975 | Decal Caution Hot Parts |
| 552 | 516010915 | Decal ROTAX POWER |
| 660 | 516010932 | Linq Decal Ligthweight Tunnel |
| 1000 | 516010651 | BRP Logo 13 MM |
| 1100 | 516010898 | Clutch Instruction Label |
| 1110 | 516009265 | Decal Ramp Clicker |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 1900 | 516005534 | Shock Adjustment Decal |
| 2520 | 516007661 | Warning Decal, Injectors |
| 3000 | 516005904 | Warning Decal |
| 5500 | 516008439 | Oil Warning Decal |
| 9520 | 516008594 | LH Safety Label |
| 9525 | 516009973 | Rear Caution Label |
| 9530 | 516010575 | Cargo Load Instruction Label |
