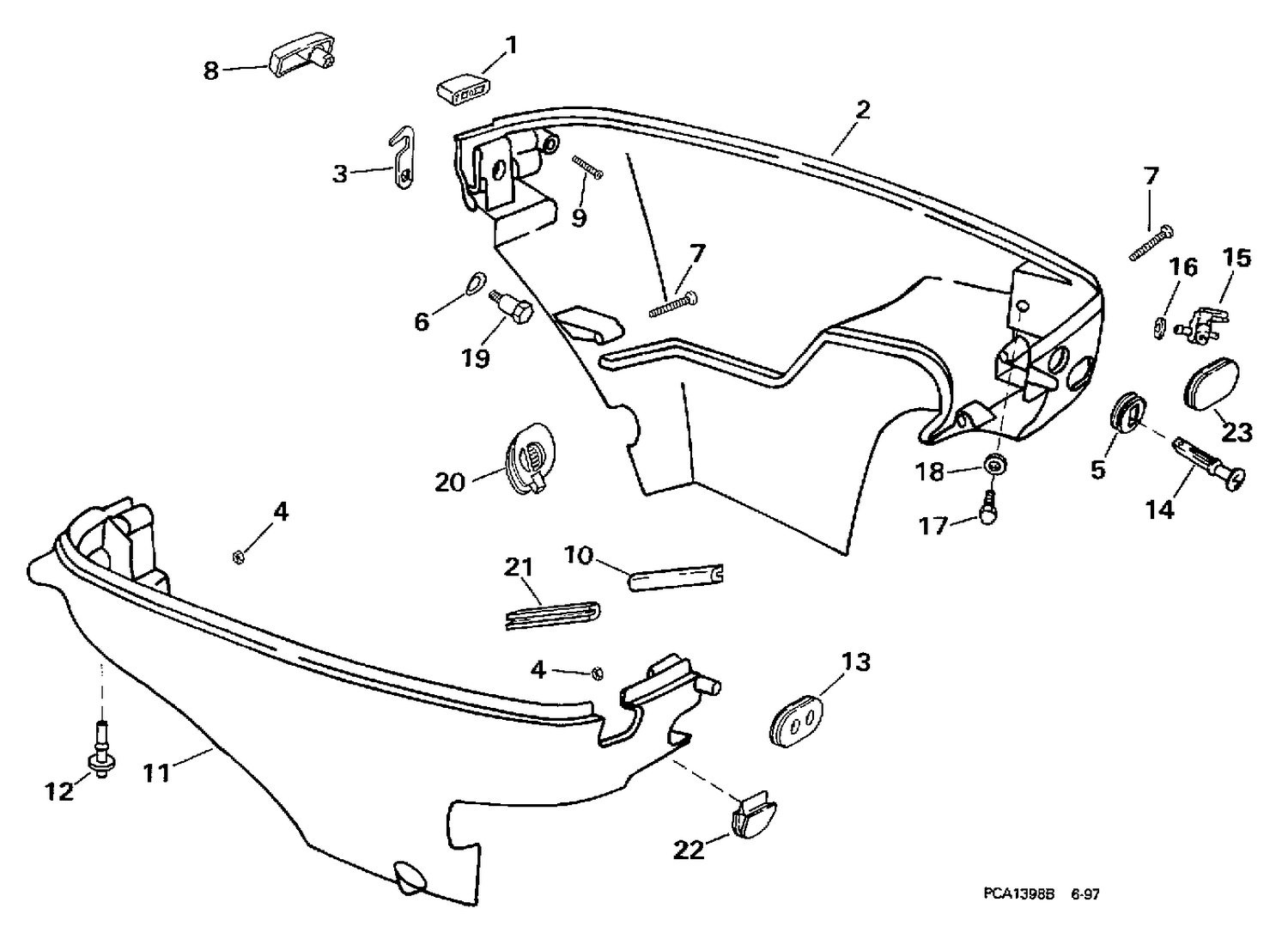

LOWER ENGINE COVER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0337413 | BUMPER, Cover |
| 2 | 0440197 | ENGINE COVER, Lower, port |
| 3 | 0337414 | LATCH, Rear |
| 7 | 0446245 | SCREW, Cover |
| 8 | 0437002 | HANDLE ASSY. |
| 10 | 0441150 | SEAL, Cover |
| 11 | 0440196 | ENGINE COVER, Lower, stbd. |
| 12 | 0336597 | INDICATOR, Overboard pump |
| 13 | 0441208 | GROMMET, Shift & throttle cables |
| 14 | 0338965 | CHOKE KNOB |
| 19 | 0441226 | SCREW, Handle to cover |
| 20 | 0441209 | GROMMET, Exhaust |
| 21 | 0441168 | SEAL, Cover |
| 22 | 0441206 | GROMMET |
