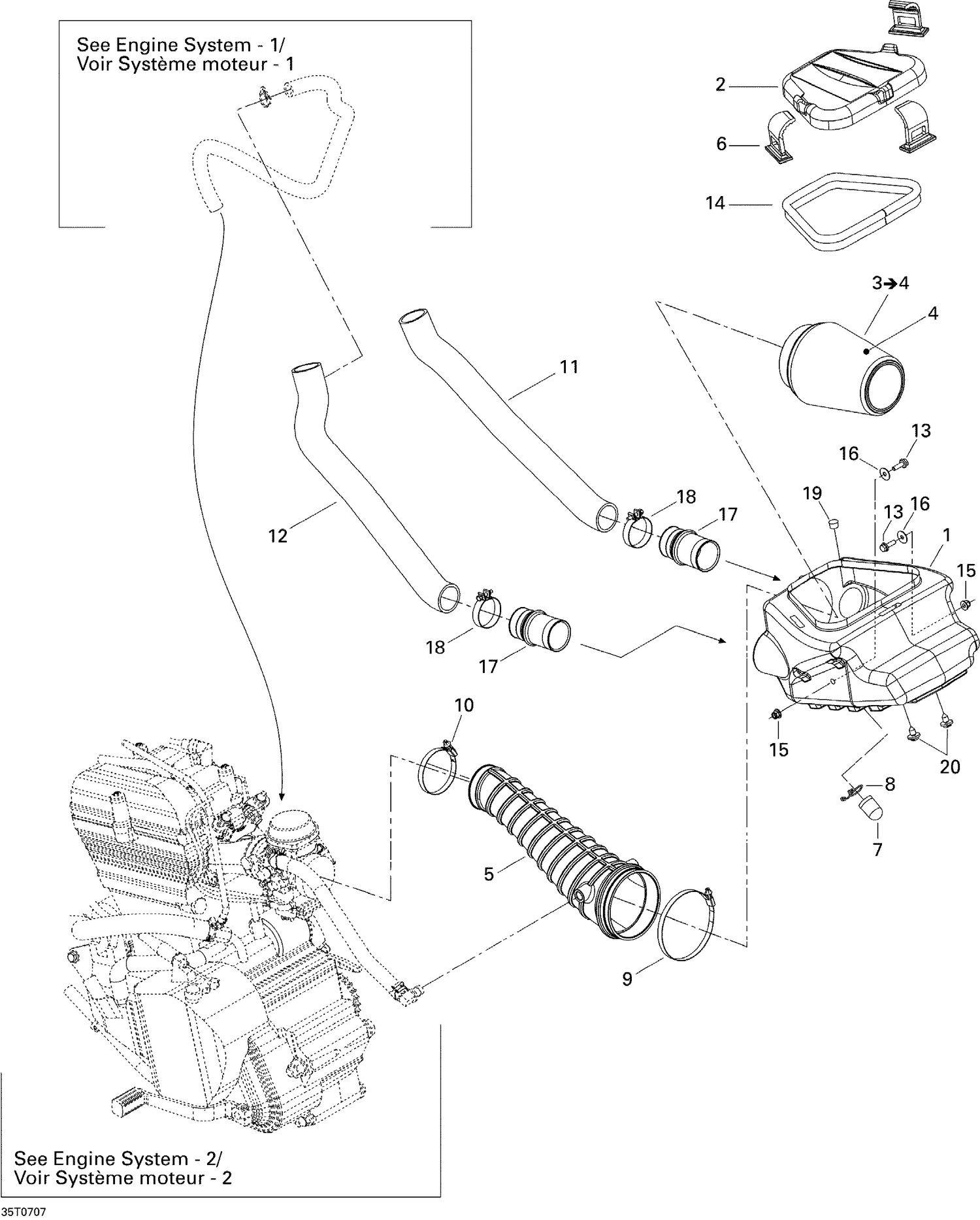

02- Air Intake
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707800021 | Air Silencer |
| 2 | 707800022 | Air Silencer Cover |
| 4 | 707800074 | Foam |
| 5 | 707800142 | INTAKE ADAPTOR - Call your local BRP dealership |
| 6 | 708200003 | COVER LATCH - Call your local BRP dealership |
| 7 | 707800080 | Drain Tube |
| 8 | 707800081 | RETAINER CLIP - Call your local BRP dealership |
| 9 | 514052983 | Norma Gear Clamp |
| 10 | 293650079 | Norma Clamp |
| 11 | 707800093 | Vent Hose |
| 12 | 707800094 | Vent Hose |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 |
| 14 | 219704371 | Neoprene Seal 3000 mm Long |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 250200082 | Flat Washer This part replaces 391302000. |
| 17 | 707800038 | DEFLECTOR - Call your local BRP dealership |
| 18 | 293650160 | GEMI CLAMP - Call your local BRP dealership |
| 19 | 572051500 | Cap |
