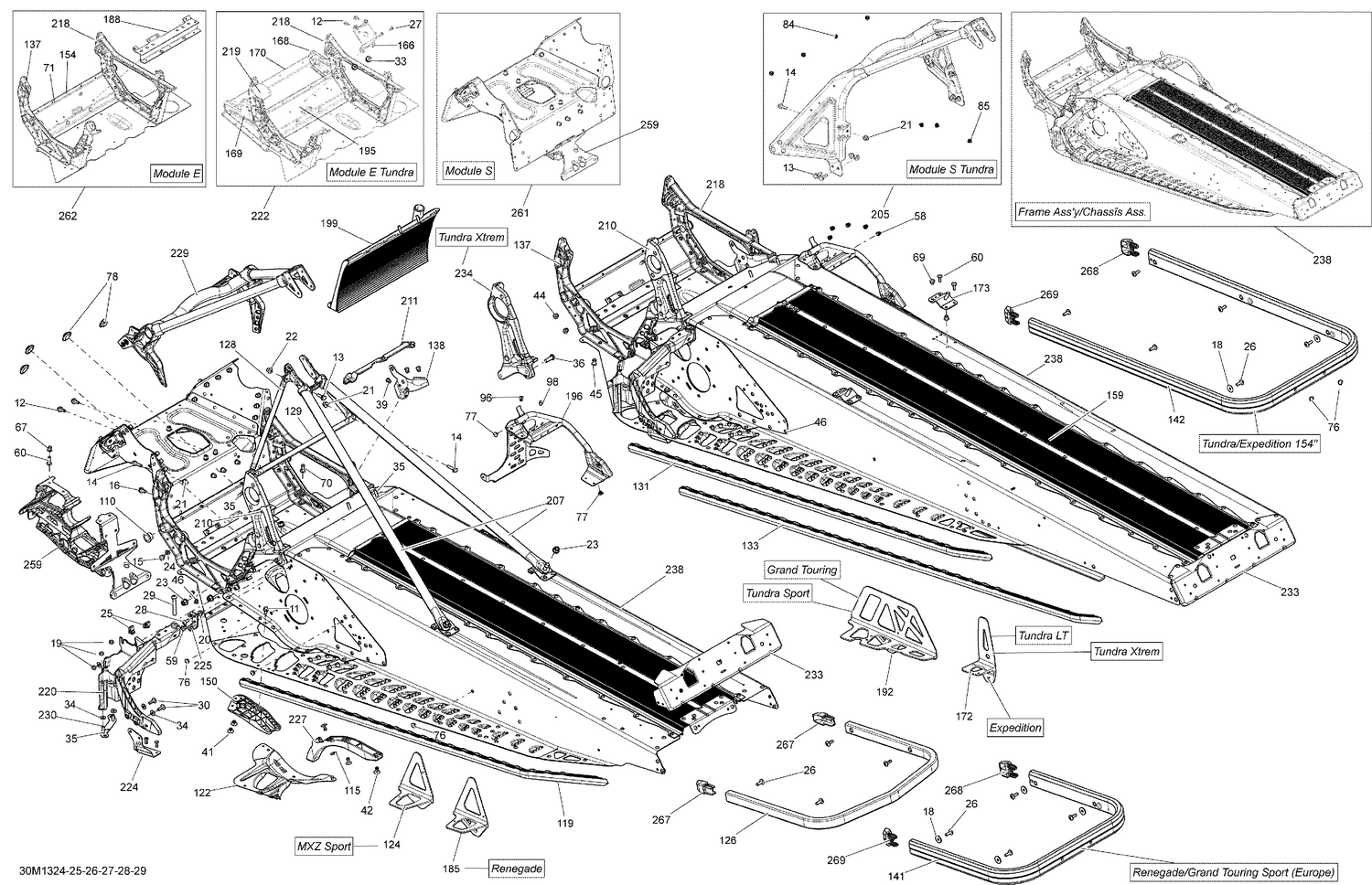

| Ref | Part Number | Description |
|---|
| 11 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 12 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 13 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 14 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 15 |
210261040 |
Hex. Flange Screw M6 X 10 |
| 16 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 18 |
224061201 |
Flat Washer |
| 19 |
232561414 |
Elastic Stop Nut M6 |
| 20 |
233061414 |
Hex. Flange Nut M6 |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 24 |
234061410 |
Flat Washer 6 mm |
| 25 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 26 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 27 |
250000512 |
Socket Screw Head 1/4-20 X 5/8'' |
| 28 |
250000534 |
Tork Screw M6 X 16 |
| 29 |
250000535 |
Torx Screw M8 X 55 |
| 30 |
250000536 |
Tork Screw M6 X 18 |
| 33 |
250100140 |
Elastic Hex. Flange Nut 1/4-20 |
| 34 |
250200039 |
Flat Washer |
| 35 |
250300027 |
Clinch Stud M6 X 20 |
| 36 |
250300038 |
Clinch Stud |
| 39 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 41 |
293150104 |
Pop Rivet 3/16" |
| 42 |
XXX |
Not Available As Spare Parts |
| 44 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 45 |
293150120 |
Hemlock Rivet 6.5 mm |
| 46 |
293150144 |
Stavex Rivet |
| 58 |
293150146 |
Henrob Rivet |
| 59 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 60 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 67 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 69 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 70 |
293150182 |
Monobolt Rivet 6.4 |
| 71 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 76 |
293730047 |
Black, Dart 8 mm |
| 77 |
293730042 |
Full Moon Dart 5 mm |
| 78 |
293730052 |
Black, Plug |
| 84 |
390402200 |
Pop Rivet 3/16" |
| 85 |
390402400 |
Pop Rivet 3/16" |
| 96 |
390909100 |
Avex Rivet |
| 98 |
390909200 |
Avex Rivet |
| 110 |
505073317 |
Leg Cushion |
| 115 |
517124300 |
Washer |
| 119 |
XXX |
Not Available As Spare Parts |
| 122 |
518324874 |
RH Reinforcement |
| 122 |
518324875 |
LH Reinforcement |
| 124 |
XXX |
Not Available As Spare Parts |
| 126 |
XXX |
Not Available As Spare Parts |
| 128 |
518325114 |
Upper Lateral Column Support |
| 129 |
518325115 |
Center Column Support |
| 137 |
518325558 |
LH Member |
| 138 |
XXX |
Not Available As Spare Parts |
| 150 |
518325782 |
RH Deflector, Black Polypropylene |
| 150 |
518325783 |
LH Deflector, Black Polypropylene |
| 154 |
XXX |
Not Available As Spare Parts |
| 173 |
518325973 |
RH Rear Base |
| 173 |
518325974 |
LH Rear Base |
| 188 |
XXX |
Not Available As Spare Parts |
| 196 |
518328938 |
RH Stirup This part replaces 518326216. |
| 207 |
518326559 |
Rear Member |
| 210 |
XXX |
Not Available As Spare Parts |
| 211 |
518326656 |
Seal |
| 218 |
518326795 |
RH Member |
| 220 |
518326820 |
LH Stirup |
| 224 |
518326960 |
Support |
| 225 |
518326961 |
U-Attach |
| 227 |
518326973 |
Front Tunnel Protector |
| 229 |
518326975 |
Front Member |
| 230 |
518326986 |
Attach |
| 233 |
518327105 |
Rear Cap |
| 238 |
415130261 |
FRAME TUNDRA XTREME NOIR - Call your local BRP dealership This part replaces 415129761. |
| 259 |
518327487 |
Front Suspension Support This part replaces 518327475. |
| 261 |
518327737 |
CROSS MEMBER S MODULE - Call your local BRP dealership This part replaces 518327501. |
| 262 |
XXX |
Not Available As Spare Parts |
| 267 |
520000567 |
Full Moon Cap |
