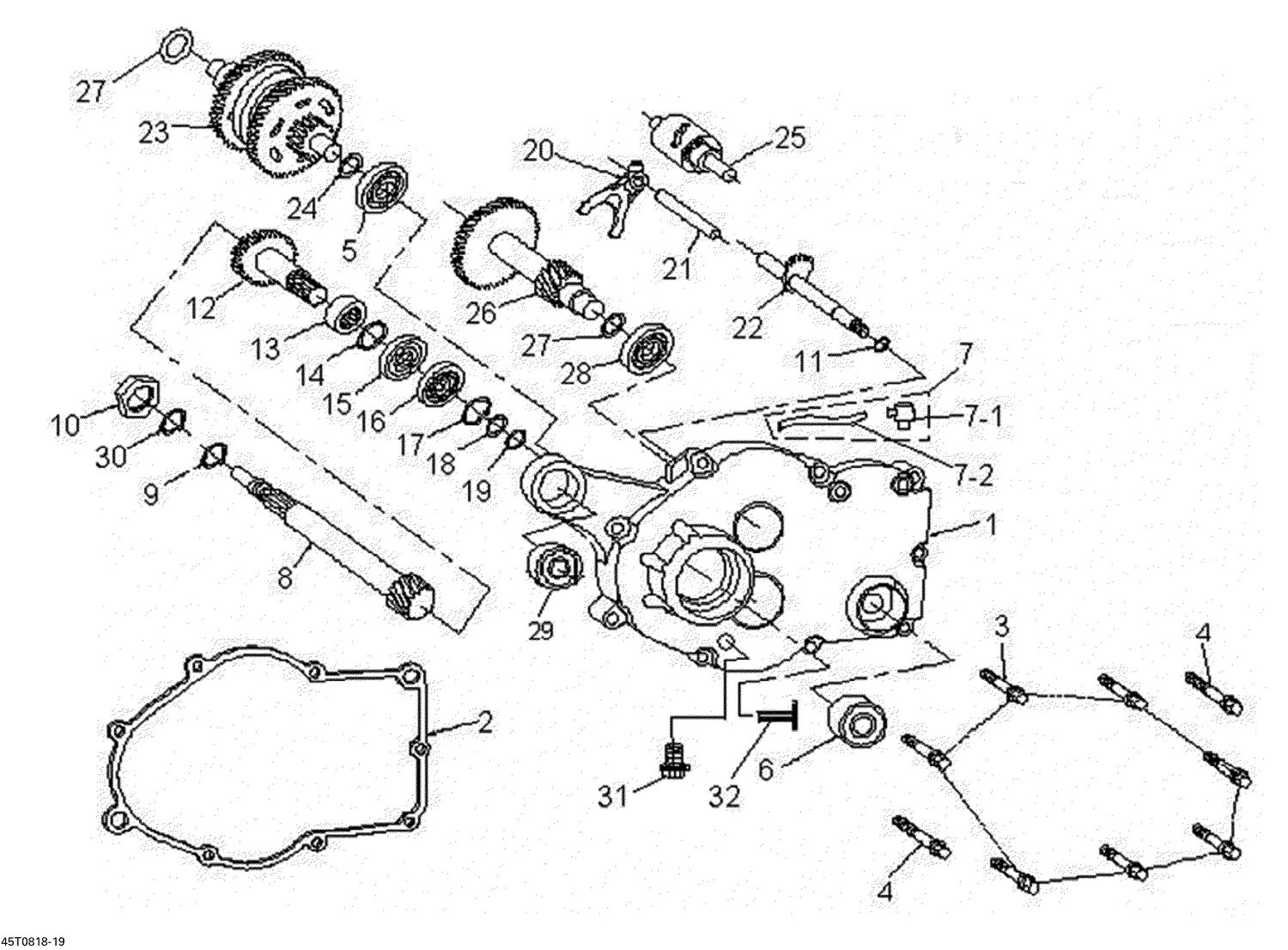

01- Gear Box
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V213004DMR030LL | Cover This part replaces V213004DMR00. |
| 2 | V213954DMR020 | Transmission Cover Gasket This part replaces V213954DMR00. |
| 3 | 207663544 | Hex. Flange Screw M6 X 35 |
| 4 | 207664044 | Hex. Flange Screw M6 X 40 |
| 5 | V961006202310 | Ball Bearing |
| 6 | V92104MAA000 | Oil Seal |
| 7 | V11220CJF020 | Breather This part replaces V11220CJF000. |
| 8 | V234114DMR00 | Primary Drive Gear |
| 9 | V9451017000 | Circlip |
| 10 | V9400310000 | Nut This part replaces V9400310000B. |
| 11 | V9451013000 | Circlip |
| 12 | V234303XGR01 | Main Shaft This part replaces V234303XGR00. |
| 13 | V91130253315 | Needle Bearing |
| 14 | V9453032000 | Circlip |
| 15 | V912044DM000 | Oil Seal |
| 16 | V961506004010 | Bearing |
| 17 | V9453042000 | Circlip |
| 18 | V941012028010 | Flat Washer |
| 19 | V9451019000 | Circlip |
| 20 | V242114DMR000 | Shifting Fork |
| 21 | V242414DMR01 | Pin |
| 22 | V246104DMR000 | Shift Shaft |
| 23 | V234504DMR00 | Reverse Axle |
| 24 | V941011522010 | Flat Washer |
| 25 | V243014DMR000 | Shift Drum |
| 26 | V234204DMR00 | Reverse Axle |
| 27 | V941011218010 | Flat Washer |
| 28 | V961006201310 | Ball Bearing |
| 29 | V112034DM000 | Rubber Bushing |
| 30 | V91304DGF000 | O-Ring |
| 31 | 207681244 | Hex. Flange Screw |
