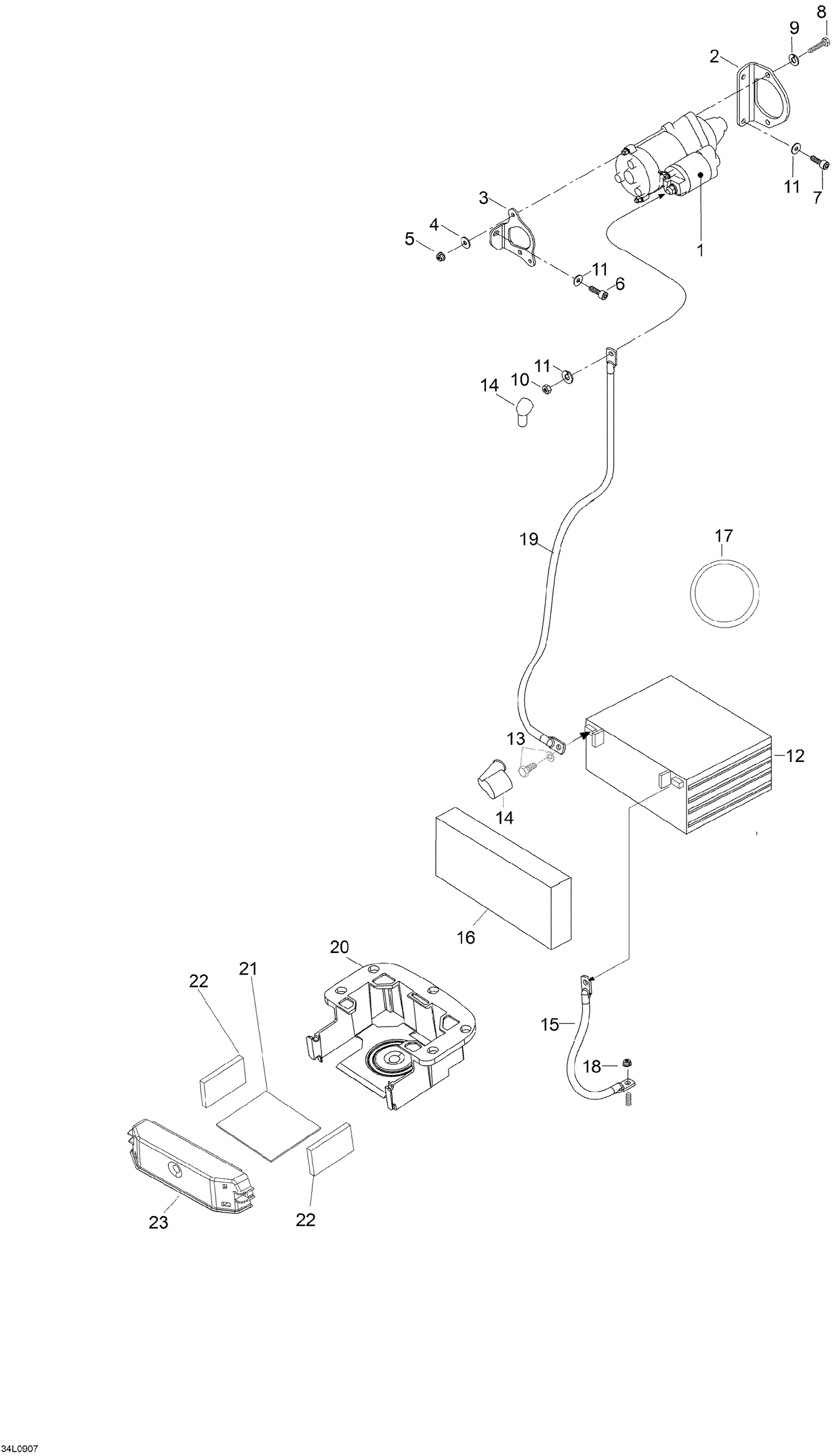

| Ref | Part Number | Description |
|---|
| 1 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 2 |
420951415 |
STARTER BRACKET, P.T.O. - Call your local BRP dealership |
| 3 |
420951426 |
STARTER BRACKET, M.A.G. - Call your local BRP dealership |
| 4 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 5 |
232551414 |
Elastic Stop Nut M5 |
| 6 |
M40066 |
Hex. Screw M8 X 16 |
| 7 |
205082044 |
Socket Head Screw M8 X 20 |
| 8 |
207182044 |
Hex. Screw M8 X 20 |
| 9 |
234181401 |
Lock Washer 8 mm |
| 10 |
M33003 |
NUT - Call your local BRP dealership |
| 11 |
234181401 |
Lock Washer 8 mm |
| 13 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 14 |
570151000 |
Protection Cap |
| 15 |
515175483 |
GROUND WIRE - Call your local BRP dealership |
| 16 |
605352572 |
COVER - Call your local BRP dealership |
| 17 |
605676001 |
O'RING 130 X6,0 - Call your local BRP dealership |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 19 |
Not |
Available As Spare Part - Wire + |
| 20 |
605255588 |
Battery Holder - Call your local BRP dealership |
| 21 |
605355846 |
FOAM - Call your local BRP dealership |
| 22 |
605355847 |
FOAM - Call your local BRP dealership |
