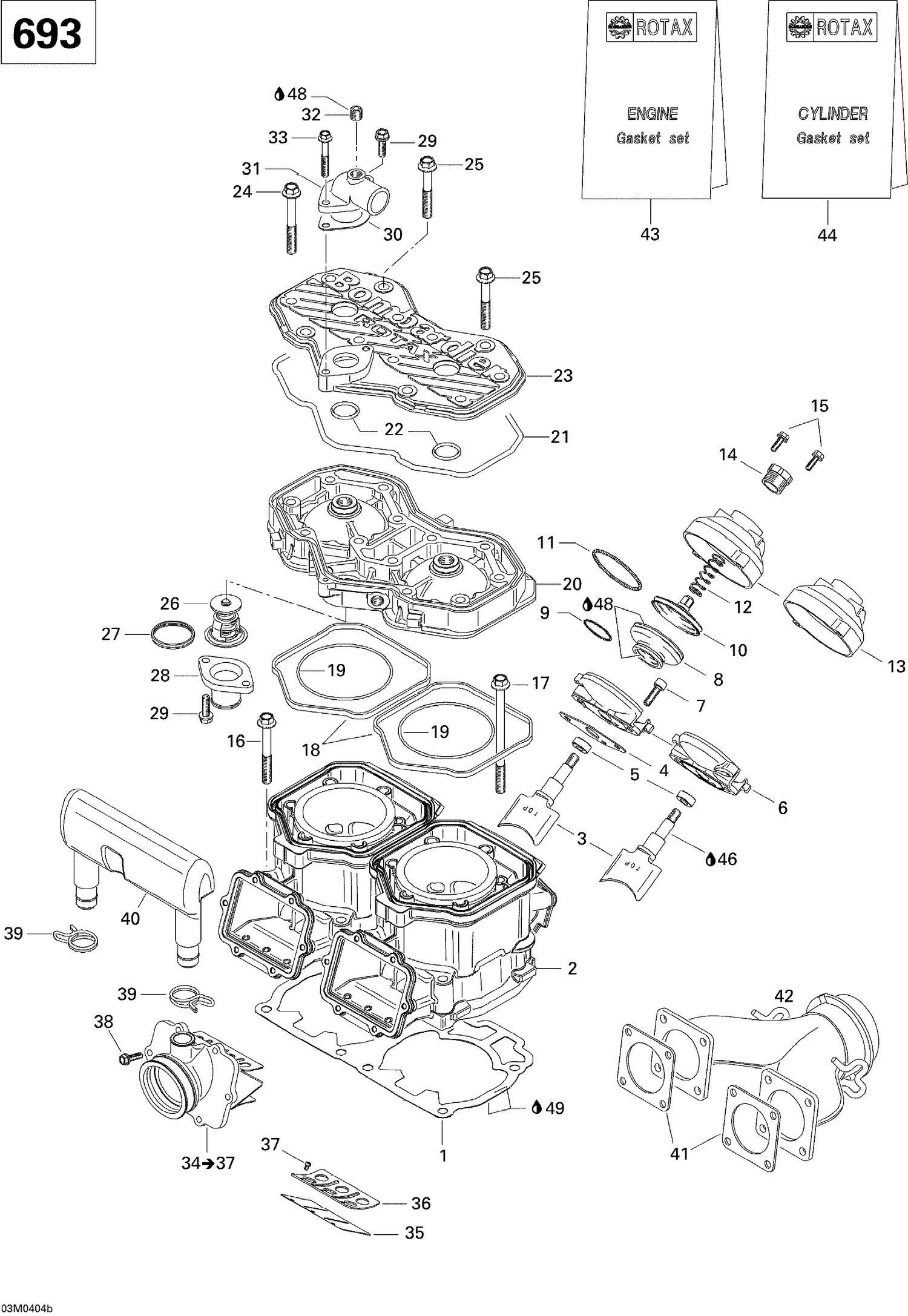

01- Cylinder, Exhaust Manifold, Reed Valve (693)

01- Cylinder, Exhaust Manifold, Reed Valve (693)

Parts (51)

RefPart NumberDescription
1 420431161 Gasket 0.6 mm This part replaces 420931892.
2 420923695 Cylinder With Sleeve, Nicasil
3 420854332 EXHAUST VALVE - Call your local BRP dealership
4 420250239 Gasket
5 420950732 Oil Seal This part replaces 420950730.
6 420854266 Valve Housing
7 205062044 Socket Head Screw M6 X 20
8 420260723 Exhaust Bellows
9 420838255 Hose Spring This part replaces 420838253.
10 420854449 Exhaust Valve
11 420939281 Hose Spring This part replaces 420239048.
12 420239954 Spring This part replaces 420239944.
13 420911552 Valve Cover
14 420241221 Adjuster Screw
15 420841555 Hex. Tapping Screw M5 X 20
16 420640524 Hex. Collar Screw
17 420640534 Hex. Collar Screw
18 420931590 Rubber Ring
19 420931840 O-RING - Call your local BRP dealership
20 420613840 Cylinder Head, Silver
21 420950320 O-Ring
22 420430782 O-Ring
23 420923465 CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
24 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
25 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
26 420922519 Thermostat This part replaces 420922518.
27 420931272 Sealing Ring
28 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
29 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
30 420850339 Gasket This part replaces 420850338.
31 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
32 420240480 PLUG SCREW - Call your local BRP dealership
33 420941451 HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
35 420924680 Reed Pedal
36 420924695 Reed Pedal Stop
37 420941215 Phillips Screw M3 X 5
38 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
39 420851440 CLAMP - Call your local BRP dealership
40 420867817 Intake Resonator
41 420850552 Gasket
42 420973593 Exhaust Manifold
43 420888604 Engine Gasket Set
44 420888608 Cylinder Gasket Set
45 293800060 Loctite 243, 10 ml
46 420297433 Molykote G-N, 50 g This part replaces 711297433.
47 413707000 Dow Corning 111, 150 g
48 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
420431160 Joint De 0.5 mm This part replaces 420931893. 420431160
420431162 Joint De 0.7 mm This part replaces 420931894. 420431162
420431163 Double Gasket 0.8 mm This part replaces 420931895. 420431163
420431163 Joint Double De 0.8 mm This part replaces 420931895. 420431163
