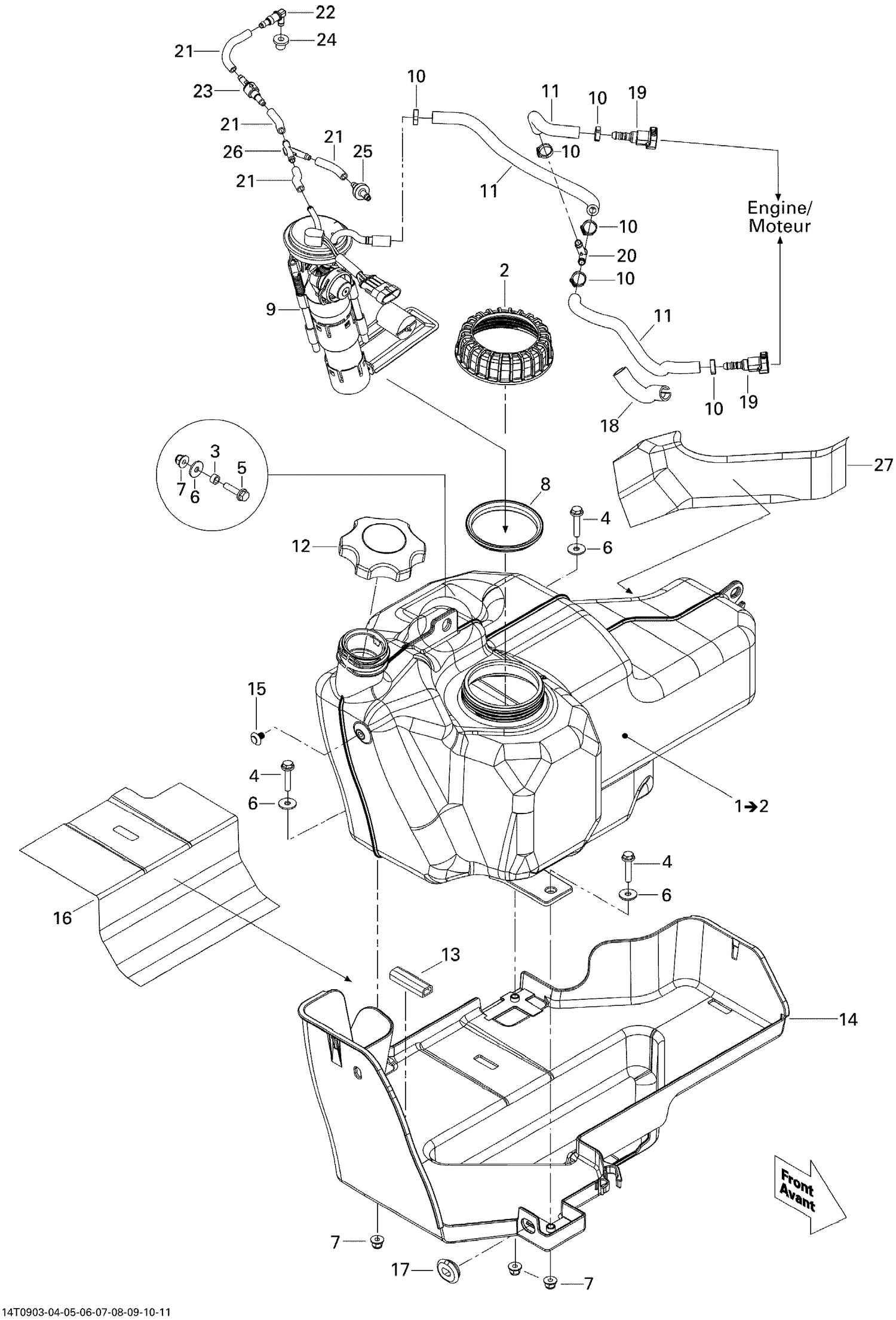

02- Fuel System
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033040 | Nut, Fuel Pump Module |
| 3 | 293900104 | Bushing This part replaces 293900029. |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 5 | 207662544 | Hex. Flange Screw M6 X 25 |
| 6 | 250200082 | Flat Washer This part replaces 391302000. |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 709000208 | Seal |
| 9 | 703500766 | Fuel Pump Kit Ass'y This part replaces 709000194. |
| 10 | 293650046 | Oetiker Clamp |
| 11 | 219704440 | Was 709000163 Fuel Line |
| 12 | 513033025 | Fuel Tank Cap |
| 13 | 219704365 | Was 293200017 Neoprene Seal |
| 14 | 709000207 | TANK PROTECTOR - Call your local BRP dealership |
| 15 | 293150168 | PLASTIC TUKLOCK RIVET - Call your local BRP dealership |
| 16 | 709000149 | REFLECTIVE SHEET - Call your local BRP dealership |
| 17 | 705005156 | Oval Washer |
| 18 | 219704400 | Was 409901800 Tubing (13 mm) |
| 19 | 709000125 | Female Quick Fitting Ass'y |
| 20 | 293710136 | Y-Fitting, 5/16'' This part replaces 293710115. |
| 21 | 219704410 | Polyurethane Hose 10000Mm Long |
| 22 | 414580600 | Elbow Male Connector |
| 23 | 513033469 | Check Valve |
| 24 | 293720029 | Grommet |
| 25 | 275500398 | Check Valve |
| 26 | 293710059 | Y-Fitting |
