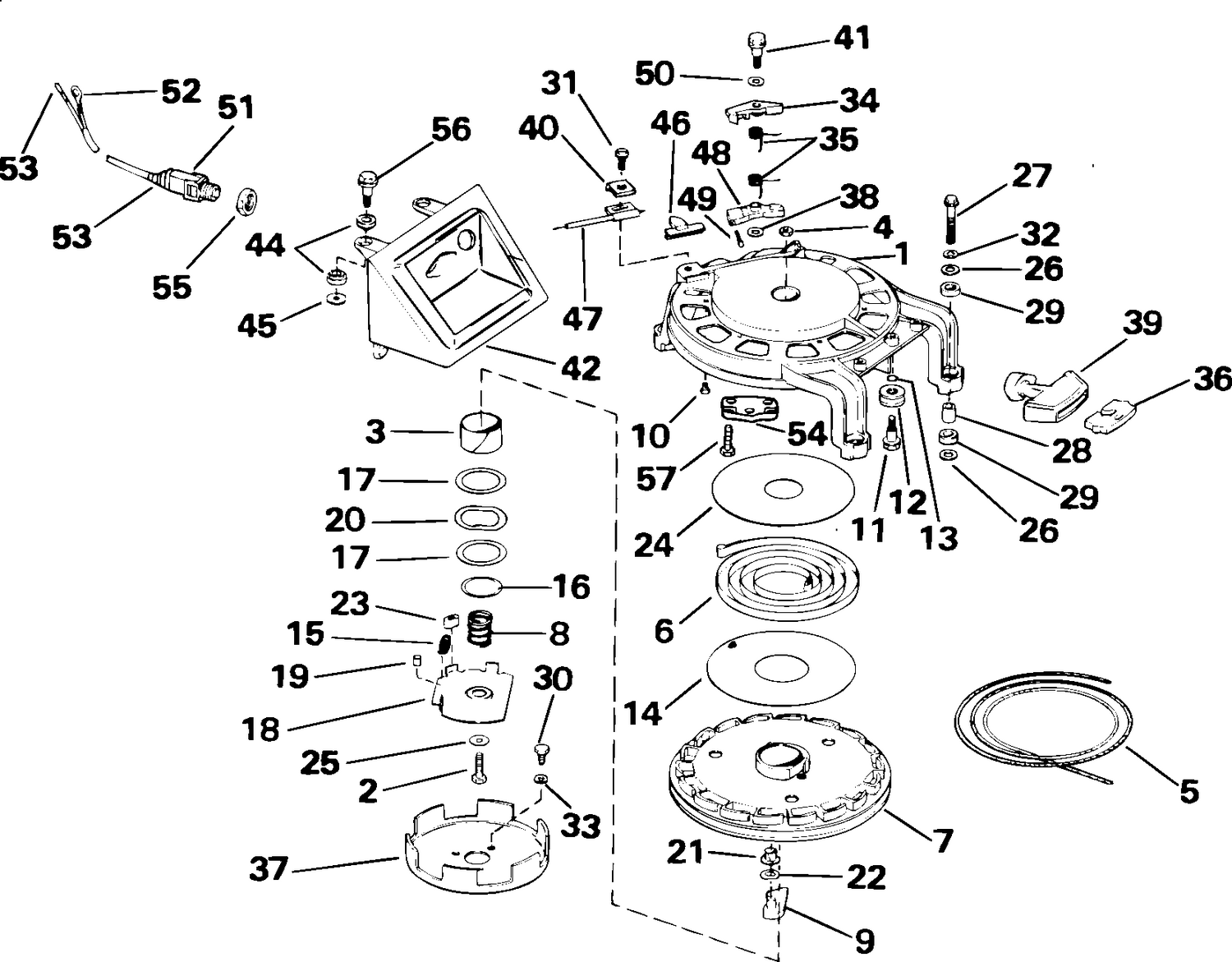

MANUAL STARTER
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 27 | 0326248 | SCREW |
| 28 | 0326129 | SLEEVE |
| 29 | 0326130 | GROMMET |
| 30 | 0306861 | SCREW |
| 31 | 0328731 | VIS, câble de verrouillage |
| 34 | 0330276 | LOCKOUT LEVER |
| 35 | 0326128 | SPRING |
| 37 | 0329211 | RATCHET |
| 38 | 0326609 | RONDELLE, levier de verrouillage |
| 39 | 0326249 | HANDLE, Starter |
| 40 | 0328456 | CLAMP |
| 41 | 0319415 | SCREW |
| 42 | 0436662 | BRACKET, Starter handle |
| 44 | 0326136 | GROMMET |
| 46 | 0330338 | SLIDE |
| 47 | 0436201 | CABLE |
| 48 | 0437040 | LOCKOUT LEVER Assy |
| 51 | 0585024 | IDLE STOP SWITCH ASSY. |
