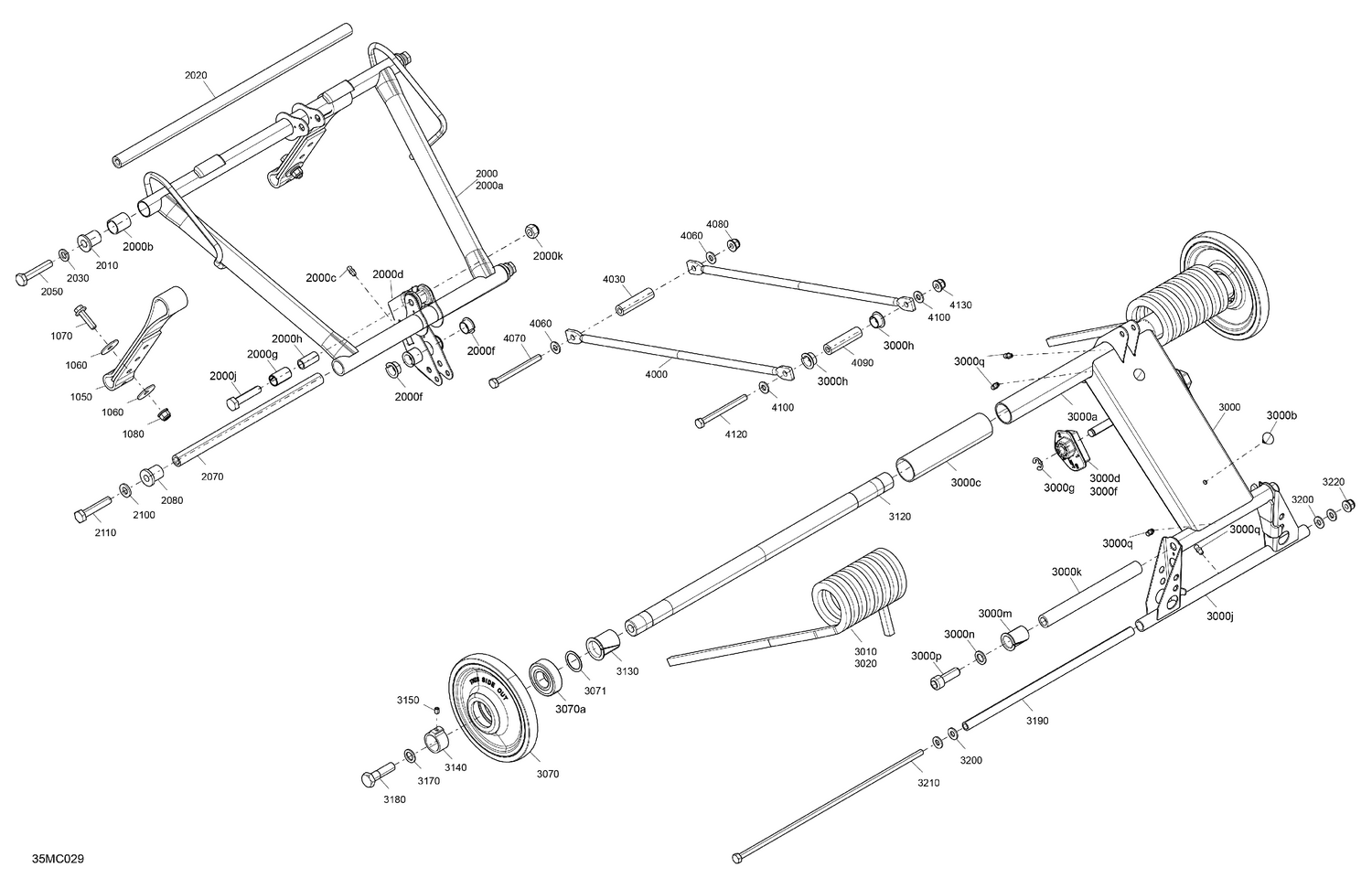

05- Suspension - Rear - Upper Section
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503195313 | Stopper Strap |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1080 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2000a | 503195491 | Front Arm |
| 2000b | 503191556 | Extended Bushing |
| 2000c | 408200700 | Grease Fitting |
| 2000d | 503192211 | Rocker |
| 2000f | 503191555 | Swivel Bushing |
| 2000g | 503193037 | Bushing |
| 2000h | 503189282 | Bushing |
| 2000j | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2000k | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2010 | 503191262 | Bushing |
| 2020 | 503195664 | Upper Shaft |
| 2030 | 503192496 | Washer |
| 2050 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 2070 | 503191390 | Lower Shaft |
| 2080 | 503189324 | Bushing |
| 2100 | 503192496 | Washer |
| 2110 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 3000a | 503195403 | Rear Arm |
| 3000b | 414644300 | Black, Dart |
| 3000c | 503191740 | Plastic Bushing |
| 3000d | 503191565 | LH Cam Adjuster |
| 3000f | 503191566 | RH Cam Adjuster |
| 3000g | 293370013 | E-Circlip |
| 3000h | 503191555 | Swivel Bushing |
| 3000j | 503195154 | Pivot Arm |
| 3000k | 503192330 | Lower Shaft |
| 3000m | 503191640 | Cushion |
| 3000n | 503192491 | Washer |
| 3000p | 205523554 | Socket Head Screw M12 X 35 |
| 3000q | 408200700 | Grease Fitting |
| 3010 | 503192378 | Black LH Square Spring |
| 3020 | 503192377 | Black RH Square Spring |
| 3070a | 293350153 | Ball Bearing |
| 3071 | 503190328 | Washer |
| 3120 | 503195618 | Upper Shaft |
| 3130 | 503191451 | Cushion |
| 3140 | 503194366 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3170 | 503196491 | Washer |
| 3180 | 207024554 | Screw Hex Cap Din 931 |
| 3190 | 503191396 | Axle Pivot |
| 3200 | 503192494 | Washer |
| 3210 | 503195156 | Bolt 369MM |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503196616 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503190643 | Axle Bar (Long) |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
