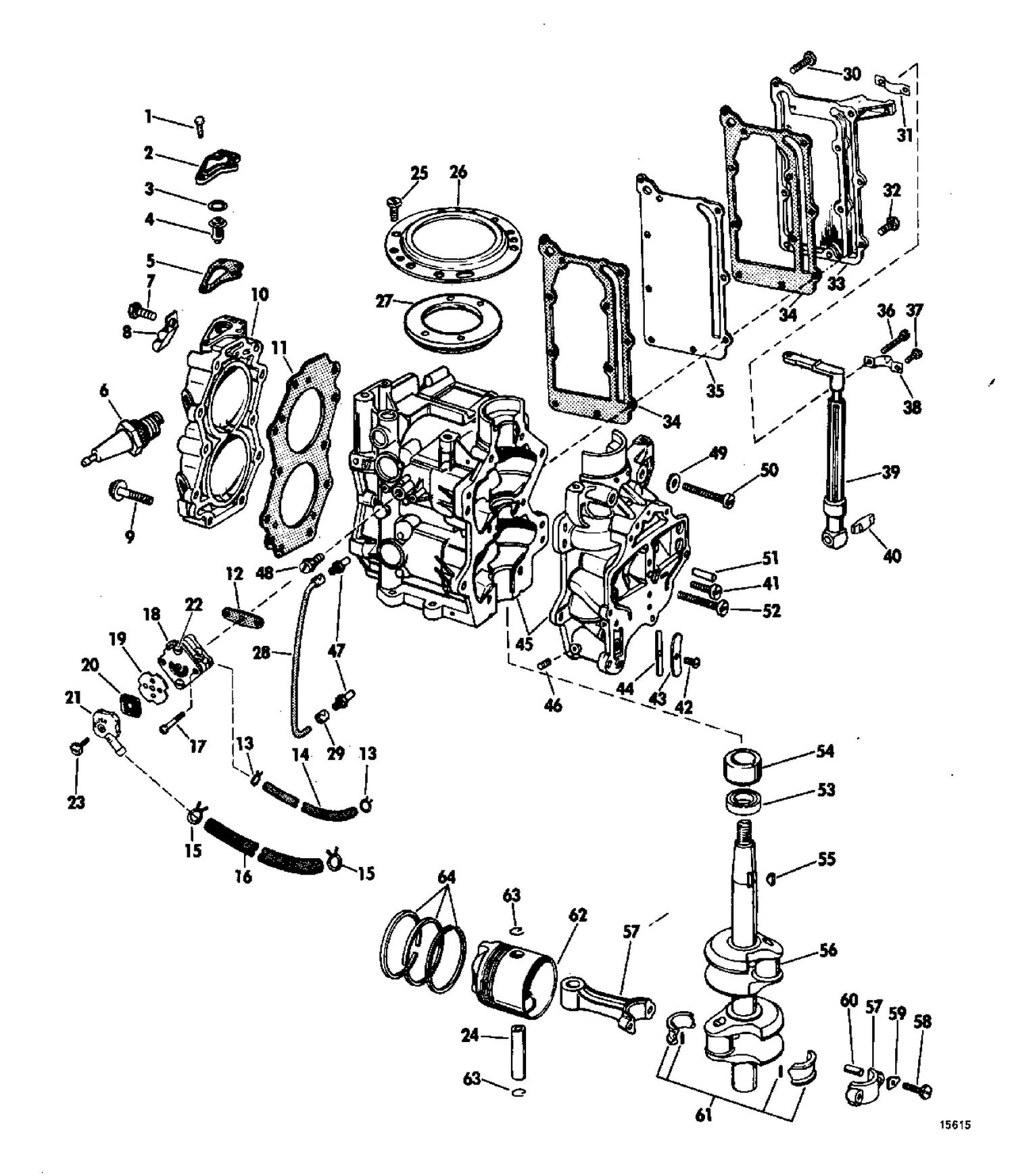

| Ref | Part Number | Description |
|---|
| 2 |
0312714 |
CAP, Thermostat |
| 3 |
0310058 |
GASKET, Thermostat |
| 4 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 5 |
0311145 |
GASKET, Cap |
| 6 |
0378101 |
SPARK PLUB, Champion j4j |
| 6 |
0378320 |
SPARK PLUG, AC - M42K |
| 6 |
0378368 |
SPARK PLUG, Auto - Lite A21X |
| 7 |
0306049 |
SCREW |
| 8 |
0304790 |
CLAMP, H t leads |
| 9 |
0308728 |
SCREW |
| 10 |
0311212 |
CYLINDER HEAD |
| 11 |
0306204 |
GASKET, Clyinder head |
| 12 |
0303615 |
GASKET |
| 14 |
0311460 |
HOSE, Carburetor to pump |
| 15 |
0302647 |
CLAMP |
| 16 |
0311461 |
HOSE, Carburetor to pump |
| 17 |
0309654 |
SCREW |
| 18 |
0388685 |
FUEL PUMP ASSY This part replaces 0382875. |
| 22 |
0310302 |
SCREW PUMP ASSY |
| 24 |
0303333 |
PIN, Wrist |
| 25 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 26 |
0303278 |
SUPORT, Armature plate |
| 27 |
0303277 |
RETAINING RING |
| 28 |
0303463 |
HOSE, Oil return |
| 29 |
0303473 |
CLAMP, Hose |
| 30 |
0132346 |
SCREW, Cover |
| 31 |
0303109 |
BEARING CLAMP, INNER |
| 33 |
0306200 |
COVER, Exhaust, outer |
| 34 |
0306201 |
GASKET, Cover |
| 35 |
0306202 |
COVER, Exhaust, inner |
| 37 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 38 |
0305609 |
BEARING CLAMP |
| 39 |
0311286 |
LEVER, Armature control |
| 40 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 41 |
0306483 |
SCREW, Clamp to lower cover |
| 42 |
0306402 |
SCREW, Drain valve |
| 43 |
0203248 |
PLATE, Drain valve |
| 44 |
0203235 |
LEAF VALVE, Oil drain |
| 45 |
0381362 |
CYLINDER & CRANKCASE ASSEMBLY |
| 49 |
0300399 |
WASHER |
| 50 |
0334220 |
SCREW, CPS bracket This part replaces 0306530. |
| 52 |
0306468 |
SCREW, Armature plate |
| 53 |
0312389 |
OIL SEAL |
| 54 |
0316583 |
CAM, Magneto This part replaces 0510168. |
| 55 |
0120395 |
KEY |
| 56 |
0307812 |
CRANKSHAFT |
| 57 |
0378280 |
CONNECTING ROD ASSEMBLY |
| 58 |
0307560 |
SCREW ROD CAP |
| 59 |
0307558 |
LOCKPALTE,Cap screw |
| 60 |
0203319 |
DOWEL CONNECTING ROD |
| 61 |
0378371 |
LINDERS & NEEDLES, Rod |
| 62 |
0376427 |
LESS RINGS, .020" o.s. |
| 62 |
0386692 |
PISTON ASSY., Std This part replaces 0376994. |
| 63 |
0120110 |
RETAING RING |
| 64 |
0378417 |
RING SET, Piston, .020 o.s |
| 64 |
0378432 |
RING SET , Std. |
