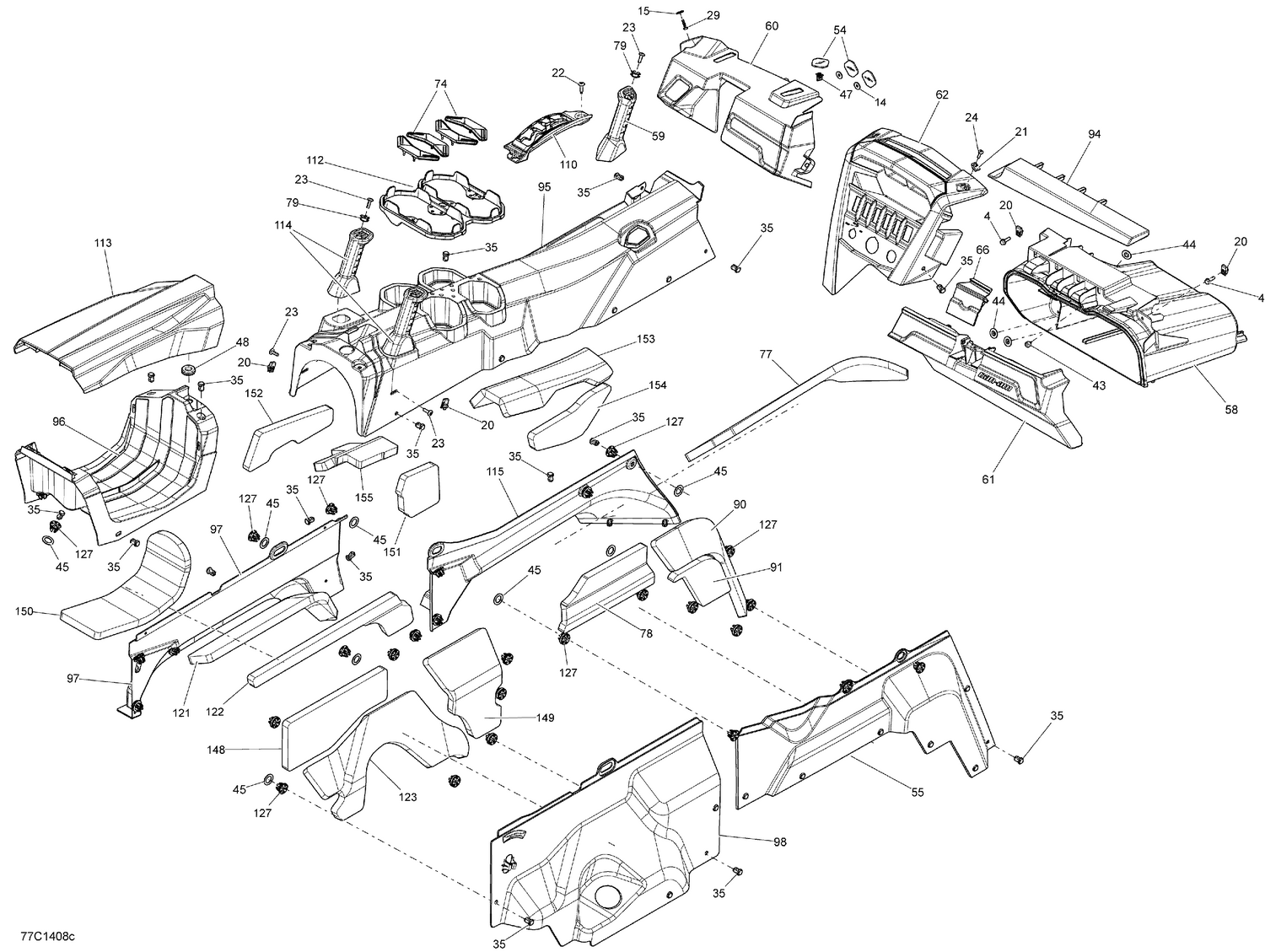

| Ref | Part Number | Description |
|---|
| 4 |
207662034 |
Hex. Flange Screw M6 X 20 |
| 14 |
234062410 |
Flat Washer 6 mm |
| 15 |
234062670 |
Stainless Steel Flat Washer |
| 20 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 21 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 22 |
250000728 |
Torx Screw M6 X 25 This part replaces 250000081. |
| 23 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 24 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 29 |
250000297 |
Truss Head Torx Screw K50 X 20 |
| 35 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 43 |
293830005 |
Rubber Bumper |
| 44 |
414859400 |
CAP - Call your local BRP dealership |
| 45 |
503189273 |
Washer |
| 47 |
517302785 |
Edge Clip |
| 48 |
517303756 |
Grommet |
| 54 |
705003841 |
Support Plate |
| 55 |
707900002 |
RH Side Console |
| 58 |
707900009 |
Storage Bin |
| 59 |
707900011 |
Passenger Handle |
| 60 |
715001250 |
Dashboard Ass'y |
| 61 |
707900221 |
LUGGAGE COVER KIT - Call your local BRP dealership This part replaces 715001263. |
| 62 |
715001265 |
Central Dashboard Ass'y |
| 66 |
707900031 |
Latch |
| 74 |
707900036 |
Cup Retainer |
| 77 |
707900621 |
LH Lower Lateral Console Foam This part replaces 707900044. |
| 78 |
707900622 |
RH Lateral Console Foam This part replaces 707900045. |
| 79 |
707900048 |
Connector Tube |
| 90 |
707900623 |
RH Lateral Console Foam This part replaces 707900055. |
| 91 |
707900624 |
RH Lateral Console Foam This part replaces 707900056. |
| 94 |
707900062 |
Trim Glove Box |
| 95 |
707900072 |
Front Control Console |
| 96 |
707900075 |
Rear Central Console |
| 97 |
707900298 |
LH REAR CONSOLE PANEL - Call your local BRP dealership This part replaces 707900079. |
| 98 |
707900080 |
RH Rear Console Panel |
| 110 |
707900088 |
Shift Lever Indicator |
| 112 |
707900100 |
Cup Holder |
| 114 |
707900103 |
Handle |
| 115 |
707900001 |
LH Side Console |
| 121 |
707900119 |
INSULATION_ACOUSTIC - Call your local BRP dealership |
| 122 |
707900626 |
LH Rear Lateral Foam This part replaces 707900120. |
| 123 |
707900121 |
INSULATION_ACOUSTIC - Call your local BRP dealership |
| 127 |
707900133 |
Insert |
| 148 |
707900205 |
INSULATION_ACOUSTIC - Call your local BRP dealership |
| 149 |
707900627 |
RH Rear Lateral Foam This part replaces 707900206. |
| 150 |
707900307 |
INSULATION_ACOUSTIC - Call your local BRP dealership This part replaces 707900208. |
| 151 |
707900209 |
INSULATION_ACOUSTIC - Call your local BRP dealership |
| 152 |
707900628 |
Front Central Foam This part replaces 707900210. |
| 153 |
707900629 |
Front Central Foam This part replaces 707900211. |
| 154 |
707900630 |
Front Central Foam This part replaces 707900212. |
