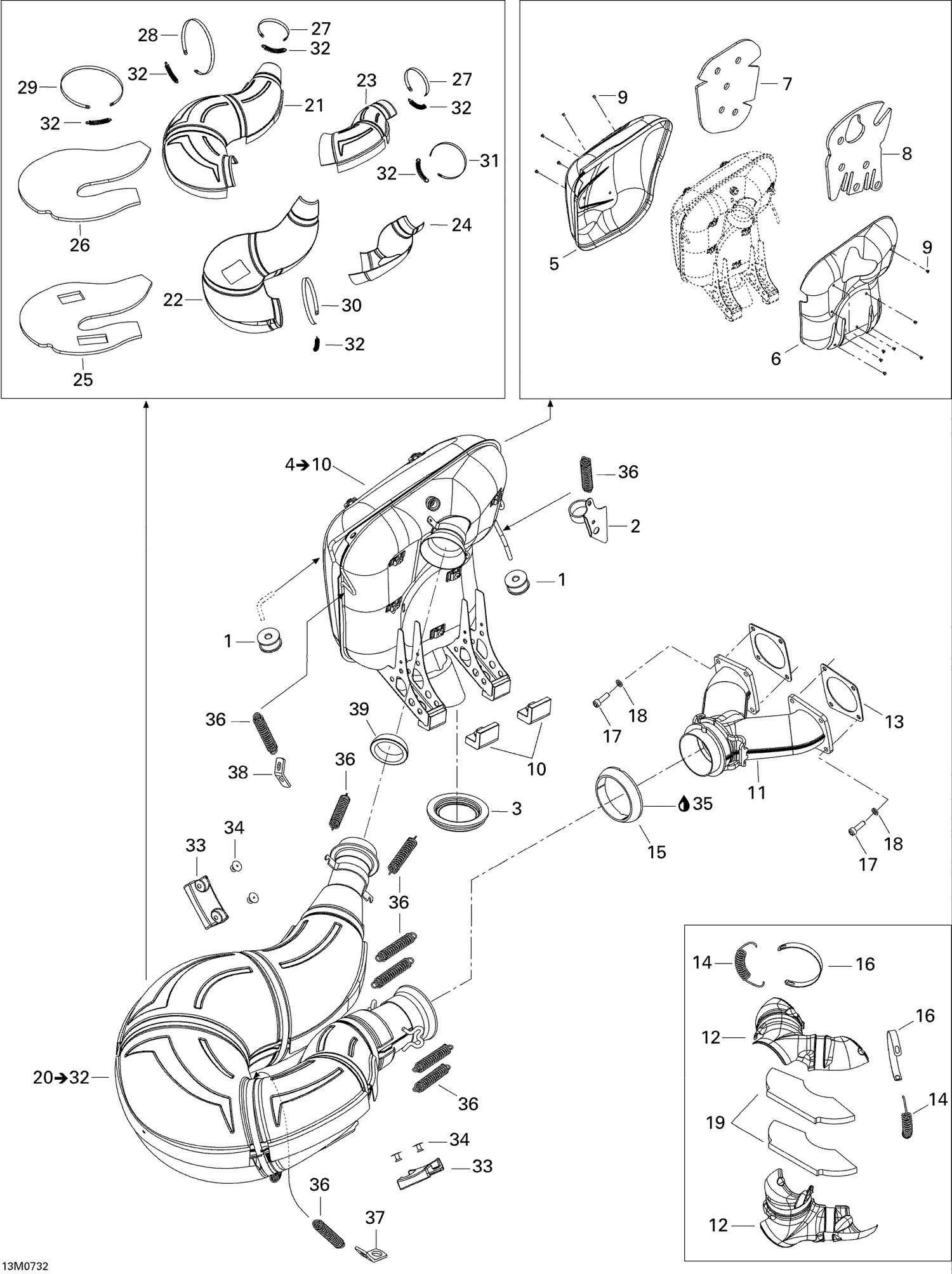

| Ref | Part Number | Description |
|---|
| 1 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 2 |
514053810 |
MUFFLER BRACKET - Call your local BRP dealership |
| 3 |
514053935 |
EXHAUST GROMMET - Call your local BRP dealership |
| 5 |
514054173 |
RH HEAT DEFLECTOR - Call your local BRP dealership |
| 6 |
514053778 |
LH HEAT DEFLECTOR - Call your local BRP dealership |
| 7 |
514053904 |
RH INSULATING WOOL - Call your local BRP dealership |
| 8 |
514053905 |
LH Insulating Wool |
| 9 |
390910000 |
Pop Rivet 3/16” |
| 10 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 11 |
420673150 |
EXHAUST MANIFOLD - Call your local BRP dealership |
| 12 |
514054033 |
EXHAUST MANIFOLD ENVELOPE - Call your local BRP dealership |
| 13 |
420630820 |
GASKET - Call your local BRP dealership |
| 14 |
514053643 |
Spring |
| 15 |
514053487 |
Exhaust Gasket |
| 16 |
514053493 |
RETAINING STRAP - Call your local BRP dealership |
| 17 |
250001077 |
Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054047. |
| 18 |
514053953 |
Washer |
| 19 |
514054034 |
INSULATING WOOL - Call your local BRP dealership |
| 21 |
514053770 |
UPPER FRONT HALF ENVELOPE - Call your local BRP dealership |
| 21 |
514053772 |
UPPER REAR HALF ENVELOPE - Call your local BRP dealership |
| 22 |
514053771 |
LOWER FRONT HALF ENVELOPE - Call your local BRP dealership |
| 22 |
514053773 |
LOWER REAR HALF ENVELOPE - Call your local BRP dealership |
| 23 |
514053770 |
UPPER FRONT HALF ENVELOPE - Call your local BRP dealership |
| 23 |
514053772 |
UPPER REAR HALF ENVELOPE - Call your local BRP dealership |
| 24 |
514053771 |
LOWER FRONT HALF ENVELOPE - Call your local BRP dealership |
| 24 |
514053773 |
LOWER REAR HALF ENVELOPE - Call your local BRP dealership |
| 25 |
514053910 |
LOWER INSULATING WOOL - Call your local BRP dealership |
| 26 |
514054035 |
UPPER INSULATING WOOL - Call your local BRP dealership |
| 27 |
514053498 |
Retaining Strap |
| 28 |
514053975 |
RETAINING STRAP - Call your local BRP dealership |
| 29 |
514053976 |
RETAINING STRAP - Call your local BRP dealership |
| 30 |
514053605 |
RETAINING STRAP - Call your local BRP dealership |
| 31 |
514053501 |
Retaining Strap |
| 32 |
514053643 |
Spring |
| 33 |
514053352 |
BUMPER - Call your local BRP dealership |
| 34 |
293150104 |
Pop Rivet 3/16" |
| 35 |
293800090 |
Sealant, Loctite, 80 ml |
| 36 |
415107100 |
Spring |
| 37 |
514054087 |
SPRING BRACKET - Call your local BRP dealership |
| 38 |
514053026 |
Spring Bracket |
| 39 |
514053677 |
Exhaust Gasket |
