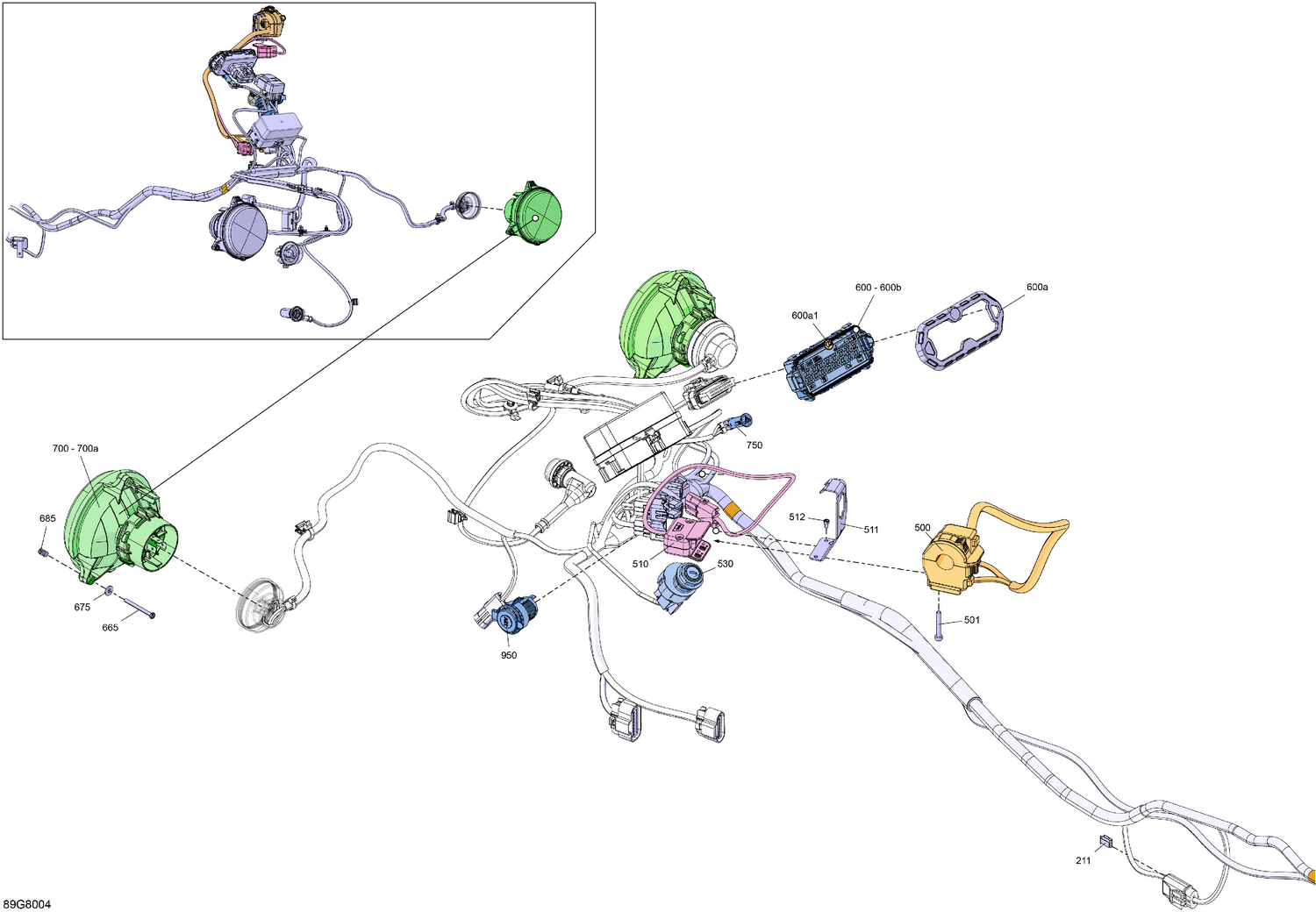

08- Electric - Front Section
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 211 | 710000992 | Clip |
| 500 | 710005072 | Multi-Function Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 510 | 710005241 | Winch Switch |
| 511 | 710004670 | Black Support |
| 512 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 530 | 710007864 | Ignition Switch |
| 600a1 | 516010651 | BRP Logo 13 MM |
| 600b | 715900265 | Button |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 675 | 517225900 | Flat Washer |
| 685 | 517168600 | Spring |
| 700a | 710000871 | Bulb, 12V 35/35W |
| 750 | 710003910 | Pilot Lamp Cap |
