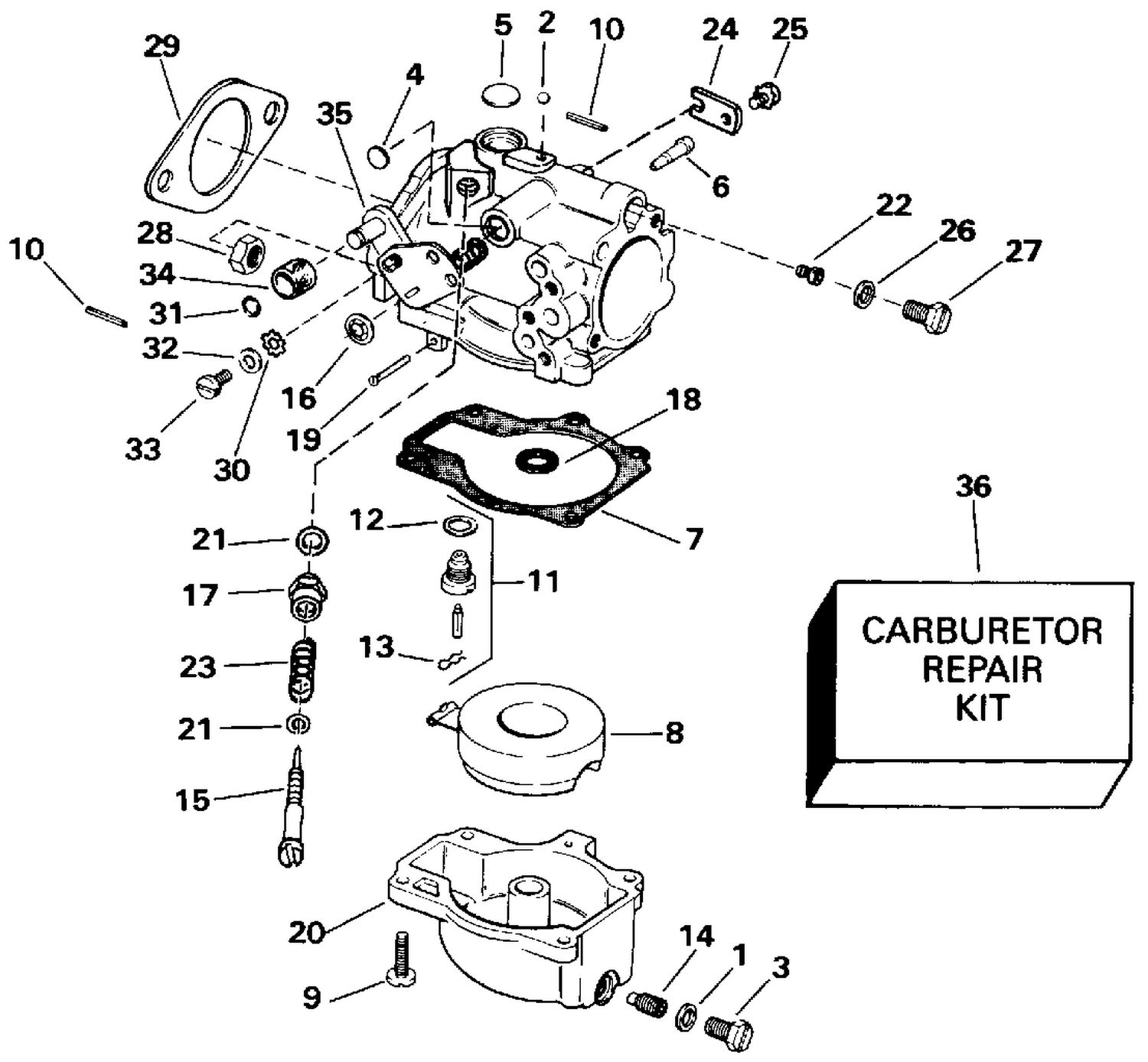

CARBURETOR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 13 | 0336842 | CLIP, SPRING |
| 14 | 0326526 | ORIFICE PLUG, #50 D - 50 models |
| 14 | 0328540 | ORIFICE PLUG, No. 44D, 60 |
| 15 | 0336652 | NEEDLE VALVE, Slow speed |
| 22 | 0322776 | ORIFICE 150 only |
| 28 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 29 | 0325092 | GASKET |
| 31 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 33 | 0306014 | VIS, ancrage |
| 34 | 0432639 | GALET, contre-came |
| 35 | 0432638 | LEVER & PIN |
| 0434529 | 0434529 | CARBURETOR ASSEMBLY, 70 |
| 0434530 | 0434530 | CARBURETOR ASSEMBLY, 60 |
