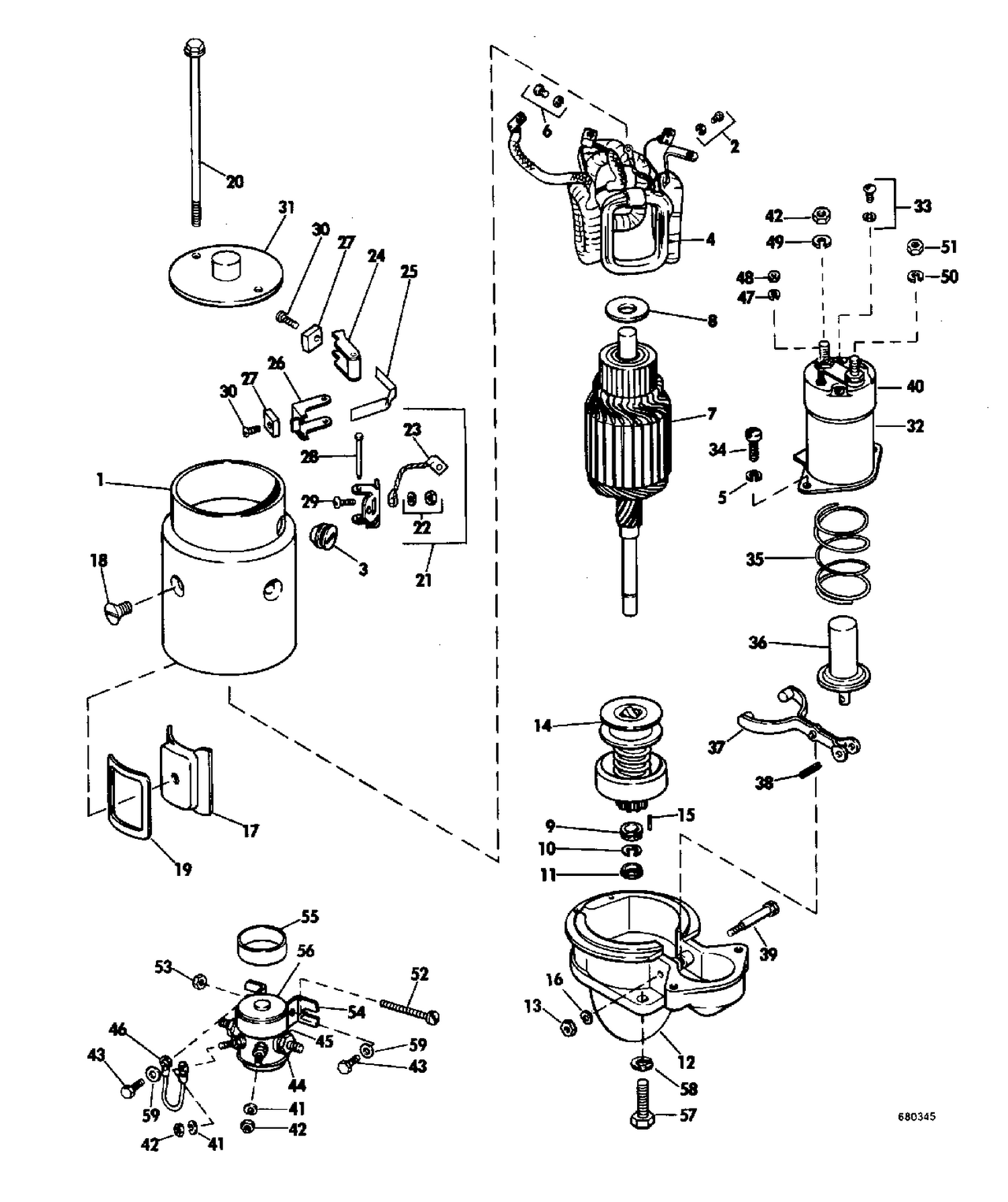

| Ref | Part Number | Description |
|---|
| 1 |
FRAME |
Ref: 2 SCREW & WASHER |
| 3 |
1966391 |
GORMMET |
| 4 |
1967968 |
FEILD COIL |
| 5 |
9421423 |
LOCKWASHER, Switch attach |
| 7 |
1955937 |
ARMATURE |
| 8 |
0818265 |
WASHER |
| 9 |
1927849 |
COLLAR, Stop |
| 10 |
1927848 |
RIKNG |
| 11 |
1927850 |
COLLAR, Thrust |
| 12 |
1967319 |
DRIVE HOUSING (INCL.1923907) BUSHING |
| 13 |
1926640 |
NUT |
| 14 |
1954842 |
DRIVE ASSEMBLY |
| 15 |
0809593 |
DOWEL PIN |
| 16 |
9421424 |
WASHER |
| 17 |
POLE,Shoe |
Ref: 18 1913960 POLE,Shoe crew 1913960 |
| 19 |
1927853 |
INSULATOR |
| 20 |
1960908 |
THRU BOLT |
| 21 |
1928015 |
SUPPORT PACKAGE |
| 23 |
1926605 |
GROUND,Lead |
| 24 |
1926618 |
BRUSH HOLDER, Insulated |
| 25 |
1940475 |
SPRING,Brush |
| 26 |
1940477 |
BRUSH HODLER,Grounded |
| 27 |
1906945 |
BRUSH |
| 28 |
1938058 |
PIN |
| 29 |
SCREW |
Ref: 30 1967747 SCREW 1967747 |
| 31 |
1928966 |
FRAME & BUSHING |
| 32 |
1114356 |
SWITCH |
| 34 |
0132255 |
SCREW |
| 35 |
1958679 |
RETURN SPRING |
| 36 |
1941113 |
PLUNGER |
| 37 |
1951567 |
LEVER SHIFT |
| 38 |
0455106 |
PIN |
| 39 |
1945804 |
SHAFT |
| 40 |
1935167 |
COVER,Solenoid switch |
| 43 |
0303311 |
SCR,Clamp,eng cable |
| 45 |
0303783 |
NUT |
| 46 |
0381765 |
LEAD ASSEMBLY, Ground |
| 51 |
0309602 |
LOCK NUT, Steering handle This part replaces 0304632. |
| 52 |
0306519 |
SCR,Coil clamp |
| 53 |
0308335 |
CLAMP, Coil |
| 54 |
0312490 |
BRACKET |
| 54 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 55 |
0311217 |
MANCHON, solénoïde |
| 57 |
0201809 |
SCEW,Starter to cylinder |
| 58 |
0120177 |
L'WASHER, Alternator to brkt |
| 1107566 |
1107566 |
STARTER MOTOR ASSY. |
