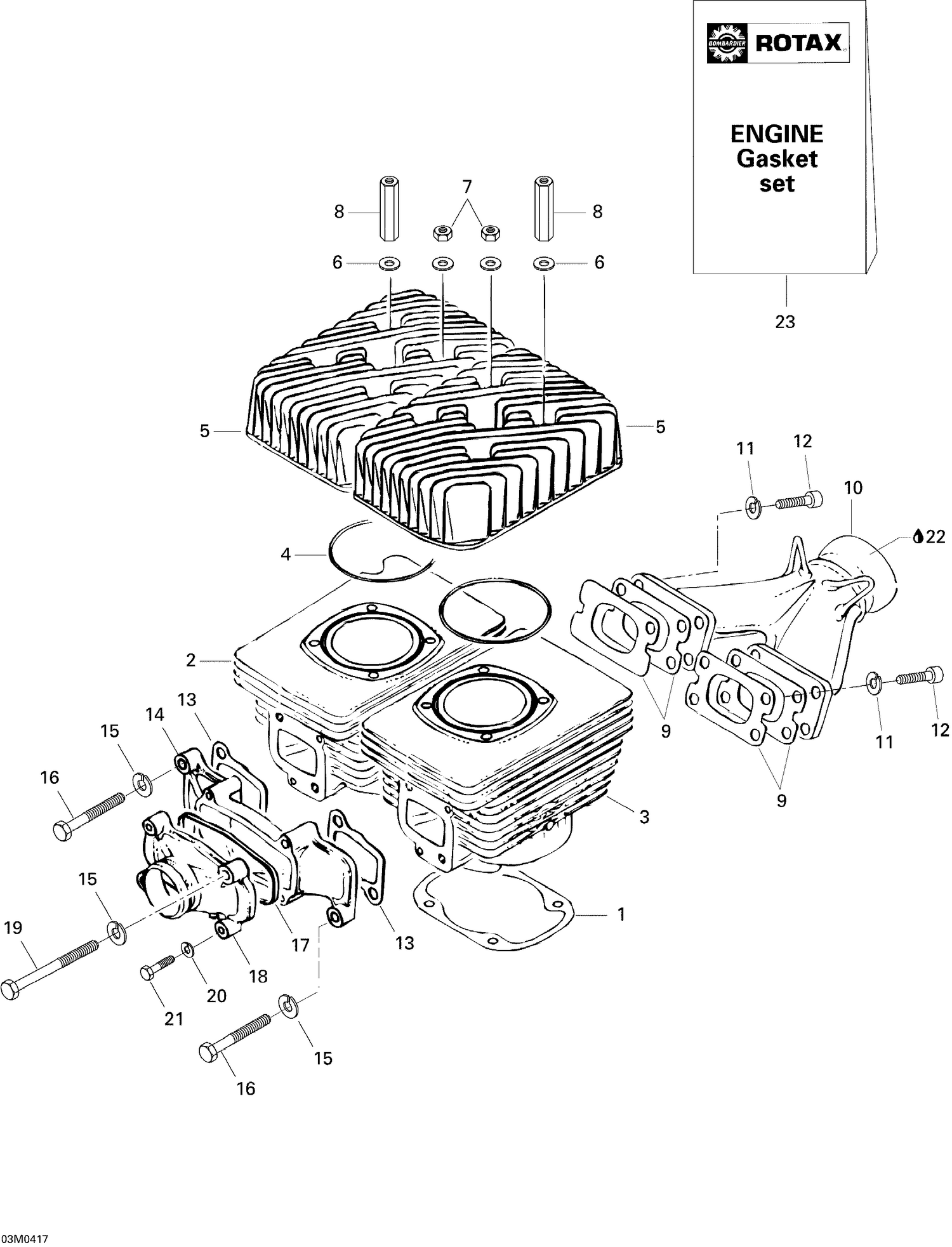

01- Cylinder, Exhaust Manifold
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420430351 | GASKET 0.4 - Call your local BRP dealership This part replaces 420931781. |
| 1 | 420931780 | GASKET 0.3 - Call your local BRP dealership |
| 1 | 420931782 | GASKET 0.6 - Call your local BRP dealership |
| 2 | 420923790 | PTO Side Cylinder |
| 3 | 420923795 | Mag Side Cylinder |
| 4 | 420931380 | O-Ring |
| 5 | 420923377 | CYLINDER HEAD - Call your local BRP dealership |
| 6 | 234081410 | Flat Washer 8 mm |
| 7 | 232081414 | Hex. Nut M8 |
| 8 | 420842208 | DISTANCE NUT M8 X 51 - Call your local BRP dealership |
| 9 | 420850114 | GASKET - Call your local BRP dealership |
| 10 | 420879459 | Exhaust Manifold |
| 11 | 234181401 | Lock Washer 8 mm |
| 12 | M40135 | Socket Head Screw M8 X 30 |
| 13 | 420831867 | INTAKE GASKET 1.0 MM - Call your local BRP dealership |
| 14 | 420867435 | Intake Manifold |
| 15 | 234181401 | Lock Washer 8 mm |
| 16 | 207083544 | Hex. Screw M8 X 35 |
| 17 | 420850190 | RUBBER RING - Call your local BRP dealership |
| 18 | 420867442 | Intake Cover-Intake |
| 19 | 420841201 | Hex. Screw M8 X 70 |
| 20 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 21 | 207162544 | Hex. Screw M6 X 25 |
| 22 | 293800090 | Sealant, Loctite, 80 ml |
