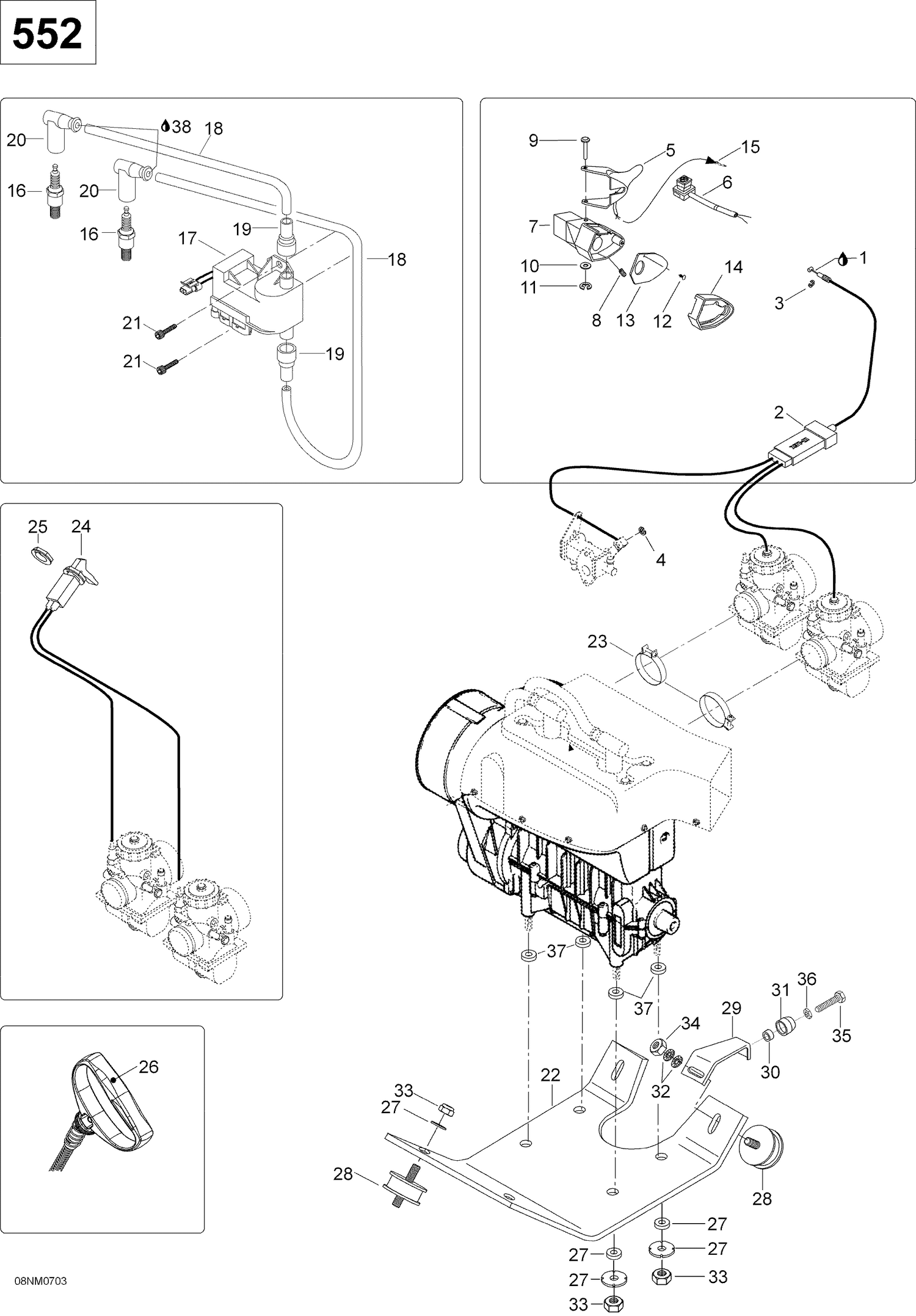

| Ref | Part Number | Description |
|---|
| 1 |
293550004 |
Dielectric grease, 150g |
| 2 |
605249117 |
THROTTLE CABLE - Call your local BRP dealership |
| 3 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 4 |
414753500 |
Circlip This part replaces 31035. |
| 5 |
512060214 |
Handle Assy This part replaces 512059144. |
| 6 |
515177362 |
Kill Switch This part replaces 414612700. |
| 7 |
512059489 |
THROTTLE HOUSING - Call your local BRP dealership |
| 8 |
114144408 |
Screw M8 x 10 |
| 9 |
414438700 |
Pin |
| 10 |
234051600 |
Washer M5 This part replaces 414438900. |
| 11 |
414439000 |
Circlip |
| 12 |
414473200 |
Screw |
| 13 |
512060390 |
Plate This part replaces 512059507. |
| 14 |
572044600 |
THROTTLE COVER - Call your local BRP dealership |
| 15 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 16 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 18 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 19 |
515174900 |
PROTECTION CAP - Call your local BRP dealership |
| 20 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 21 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 22 |
5342951 |
Engine support |
| 23 |
414532700 |
COLLAR - Call your local BRP dealership |
| 25 |
512059094 |
PLASTIC NUT - Call your local BRP dealership |
| 26 |
572084400 |
Grip |
| 27 |
512056700 |
Lock washer |
| 28 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 29 |
539902 |
TORQUE SUPPORT - Call your local BRP dealership |
| 30 |
2846014 |
RUBBER GROMMET - Call your local BRP dealership |
| 31 |
605449240 |
SLEEVE - Call your local BRP dealership |
| 32 |
20068 |
Lock washer |
| 33 |
33012 |
Nut elastic M10 |
| 34 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 35 |
40121 |
Hex Screw M8x40 DIN933 m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 36 |
33003 |
Nut M8 |
| 37 |
5440678 |
SLEEVE - Call your local BRP dealership |
