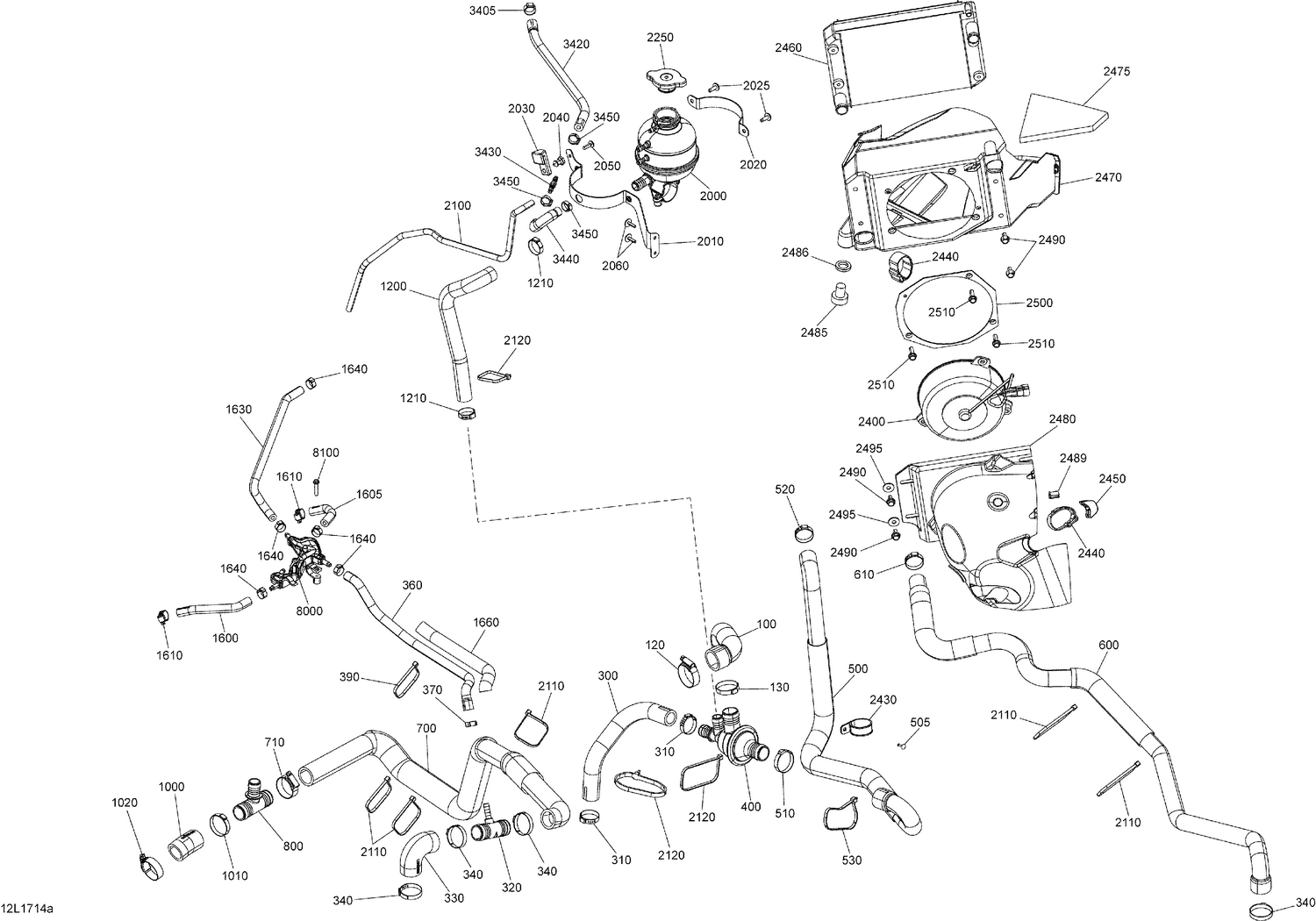

01- Cooling System
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000595 | Engine Outlet Hose |
| 120 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 130 | 509000181 | Oetiker Gear Clamp |
| 300 | 509000523 | Bypass Hose |
| 310 | 293650099 | Crimp Clamp |
| 320 | 509000510 | T-Fitting |
| 330 | 509001066 | Radiator Hose This part replaces 509000671. |
| 340 | 509000529 | Oetiker Gear Clamp |
| 360 | 509000906 | Bleeder Hose |
| 370 | 293650047 | Crimp Clamp, 15.3-706R |
| 390 | 414115200 | Tie-Rap 180 mm |
| 400 | 509000499 | Thermostat Housing |
| 500 | 509000737 | Hose Radiator |
| 505 | 293150102 | Rivet 3/16" |
| 510 | 509000181 | Oetiker Gear Clamp |
| 520 | 293650099 | Crimp Clamp |
| 530 | 414115200 | Tie-Rap 180 mm |
| 600 | 509000993 | Radiator Hose |
| 610 | 293650099 | Crimp Clamp |
| 700 | 509000992 | Radiator Hose |
| 710 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 800 | 509000372 | T-Fitting |
| 1000 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 1010 | 509000181 | Oetiker Gear Clamp |
| 1020 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509000736 | Filling Hose |
| 1210 | 509000442 | Gear Clamp |
| 1600 | 509000818 | Bleeder Hose |
| 1605 | 509000819 | Bleeder Hose |
| 1610 | 293650170 | Tridon Gear Clamp |
| 1630 | 509000998 | Hose |
| 1640 | 293650046 | Oetiker Clamp |
| 1660 | 415080000 | Tubing 16 mm |
| 2000 | 509000368 | Coolant Tank |
| 2010 | 509000852 | Reservoir support |
| 2020 | 509000608 | Support |
| 2025 | 250000676 | Forming Screw M5 x 16 |
| 2030 | 509000609 | Support |
| 2040 | 517303439 | Knob |
| 2050 | 250000720 | Torx Screw K50 X 16 |
| 2060 | 250000725 | Screw M4 X 16 |
| 2100 | 276000048 | Hose 6 mm |
| 2110 | 293750008 | Tie-Rap 368 mm |
| 2120 | 414115200 | Tie-Rap 180 mm |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2400 | 509000837 | Fan |
| 2430 | 27011 | Clamp With Rubber |
| 2440 | 508000820 | Velcro-Strip |
| 2450 | 508000572 | Bumper |
| 2460 | 509000756 | Radiator |
| 2470 | 509001173 | Cooling Fan Shroud This part replaces 509000739. |
| 2475 | 509000615 | Foam |
| 2480 | 509001174 | Deflector This part replaces 509000558. |
| 2485 | 570044700 | Rubber Bumper |
| 2486 | 505072579 | Spacer |
| 2489 | 710000992 | Clip |
| 2490 | 207661244 | Hex. Flange Screw M6 X 12 |
| 2495 | 234062410 | Flat Washer 6 mm |
| 2500 | 509000614 | Screw plate |
| 2510 | 210262040 | Hex. Flanged Screw M6 X 20 |
| 3405 | 293650053 | Crimp Clamp |
| 3420 | 509000880 | Formed Hose |
| 3430 | 293710156 | Straight Connector |
| 3440 | 509000879 | Formed Hose |
| 3450 | 293650047 | Crimp Clamp, 15.3-706R |
| 8000 | 509000803 | Bleed Collector |
