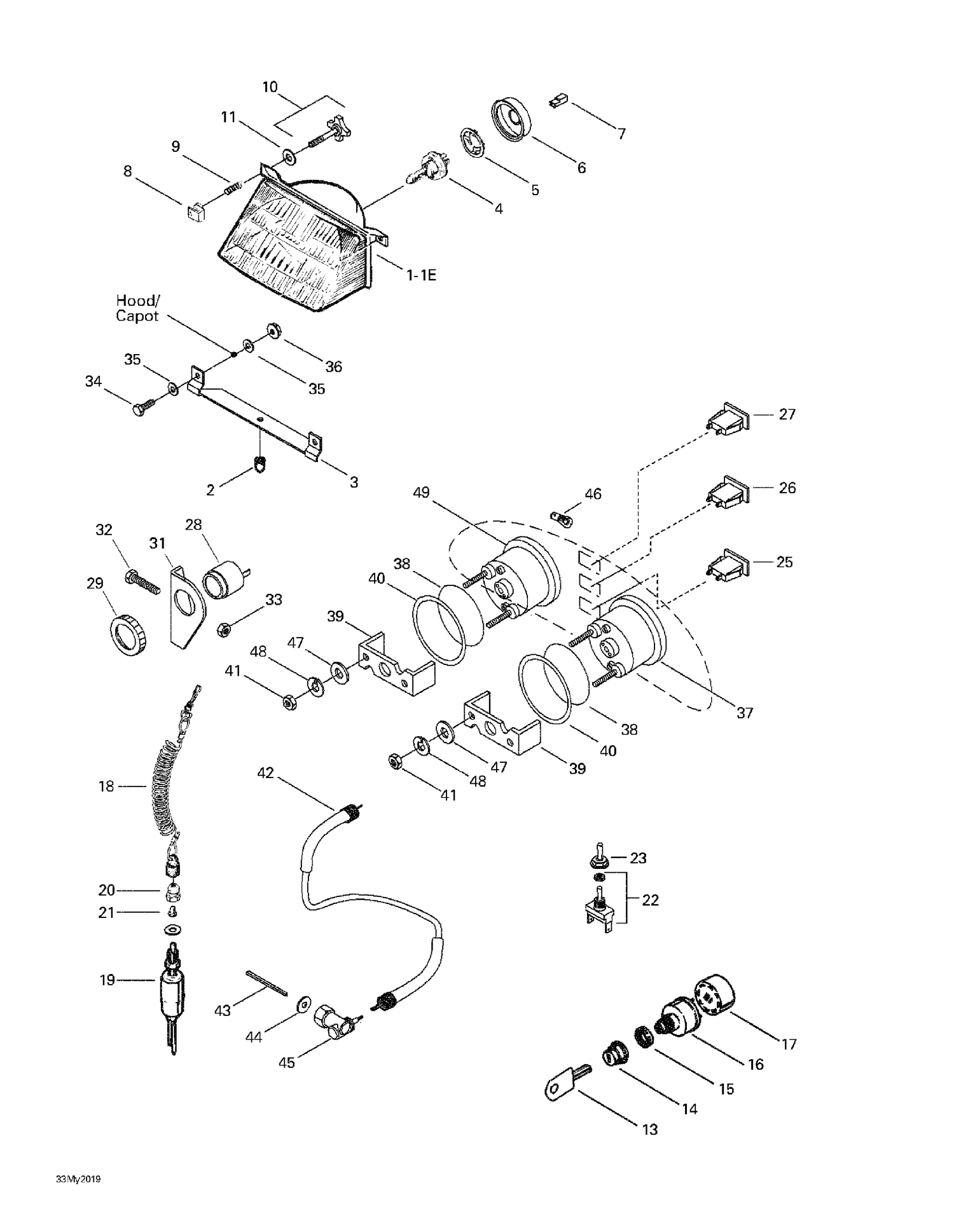

| Ref | Part Number | Description |
|---|
| 1B |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 1C |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 1D |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 1E |
410609300 |
Headlamp |
| 2 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 3 |
M539864 |
HOLDER - Call your local BRP dealership |
| 4 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 5 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 6 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 7 |
M1200909 |
Tab Connector Housing |
| 8 |
572078600 |
Projector Nut |
| 9 |
517168600 |
Spring |
| 10 |
243244040 |
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 11 |
M20001 |
Washer |
| 13 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 14 |
570013700 |
Switch Boot |
| 15 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 16 |
410111300 |
IGNITION SWITCH - Call your local BRP dealership |
| 17 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 18 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 19 |
515175653 |
Brake Switch This part replaces 410106700. |
| 20 |
515145900 |
Switch Nut |
| 21 |
570151100 |
Plunger Cap |
| 22 |
410110700 |
Heat Grip Switch |
| 23 |
515175281 |
Switch Cover |
| 25 |
410109600 |
Pilot Lamp (Blue) |
| 26 |
410109500 |
Pilot Lamp (Red) |
| 28 |
414792102 |
Back-Up Alarm |
| 29 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 31 |
Not |
Available As Spare Part - Support |
| 32 |
207161644 |
Hex. Screw M6 X 16 |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 34 |
M40247 |
Screw M5 X 16 |
| 35 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 36 |
232551414 |
Elastic Stop Nut M5 |
| 38 |
414807100 |
O-Ring |
| 39 |
414806500 |
Case Holder |
| 40 |
517258500 |
Washer |
| 41 |
232551414 |
Elastic Stop Nut M5 |
| 42 |
5344162 |
Speedometer Cable This part replaces M5344162. |
| 43 |
45075 |
Square Pin Nska L=75Mm This part replaces M45075. |
| 44 |
M5444186 |
Washer |
| 45 |
35021 |
Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021. |
| 46 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 47 |
517225900 |
Flat Washer This part replaces 414806800. |
