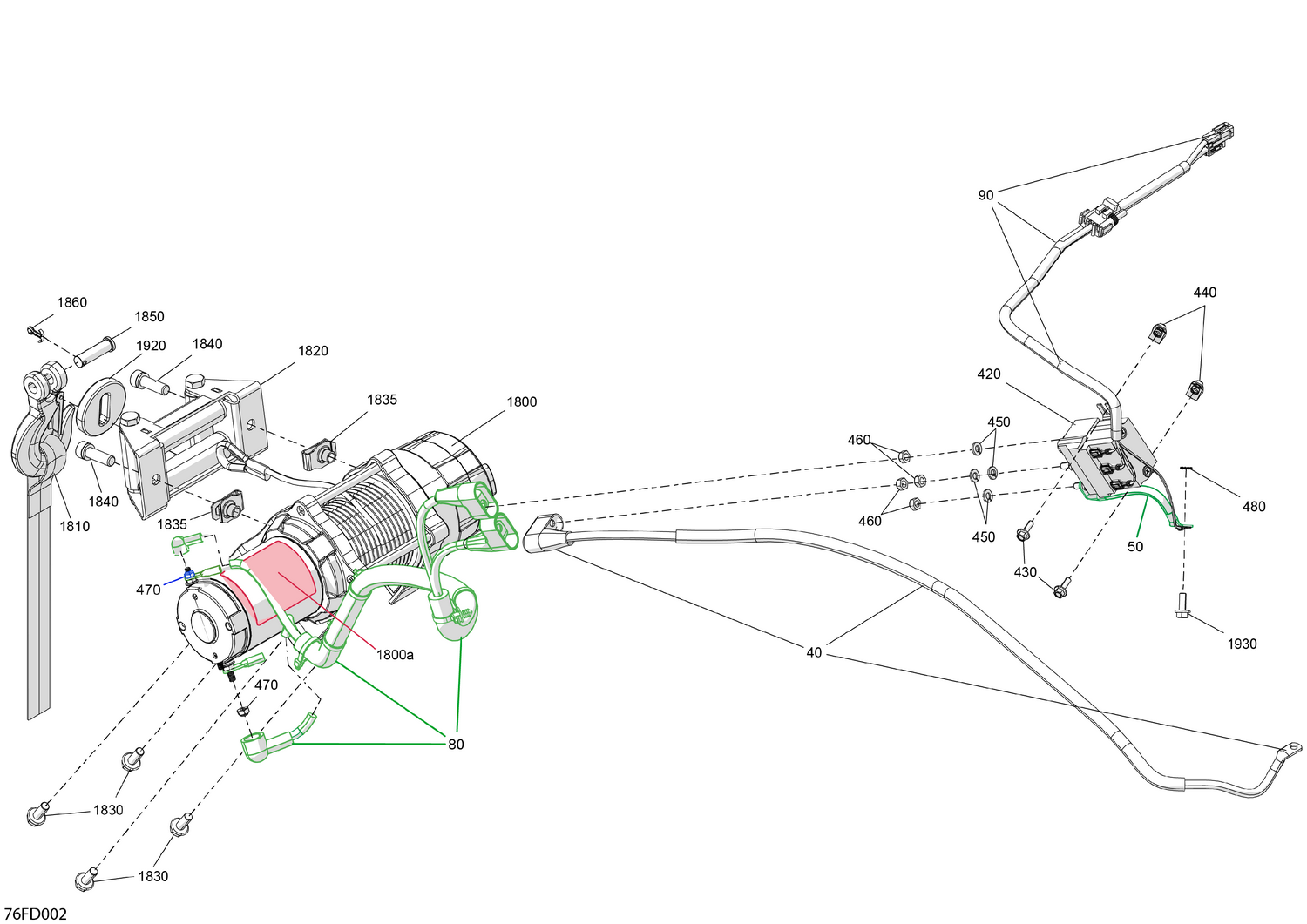

08- Electric - Winch
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 40 | 710006292 | Solenoid Power Cable |
| 50 | 710008878 | Negative Cable |
| 80 | 710006476 | Winch Power Cable |
| 90 | 710006833 | Winch Wiring Harness |
| 420 | 710009454 | Solenoid |
| 430 | 207651646 | Hex. Flange Screw M5 X 16 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 450 | 234161601 | Lock Washer Helical M6 |
| 460 | 232561434 | Elastic Stop Nut M6 |
| 470 | 232561200 | Brass Elastic Stop Nut M6 |
| 480 | 234461608 | External Serrated Lock Washer 6 mm |
| 1810 | 705014949 | Winch Hook Kit |
| 1820 | 710007459 | Fairlead Roller |
| 1830 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 1835 | 250001264 | Panel Nut M10 X 1.5 |
| 1840 | 205003044 | Socket Screw M10 x 30 |
| 1850 | 705014949 | Winch Hook Kit |
| 1860 | 705014949 | Winch Hook Kit |
| 1900 | 219002228 | Winch Instruction Guide |
| 1920 | 710007028 | Stopper |
