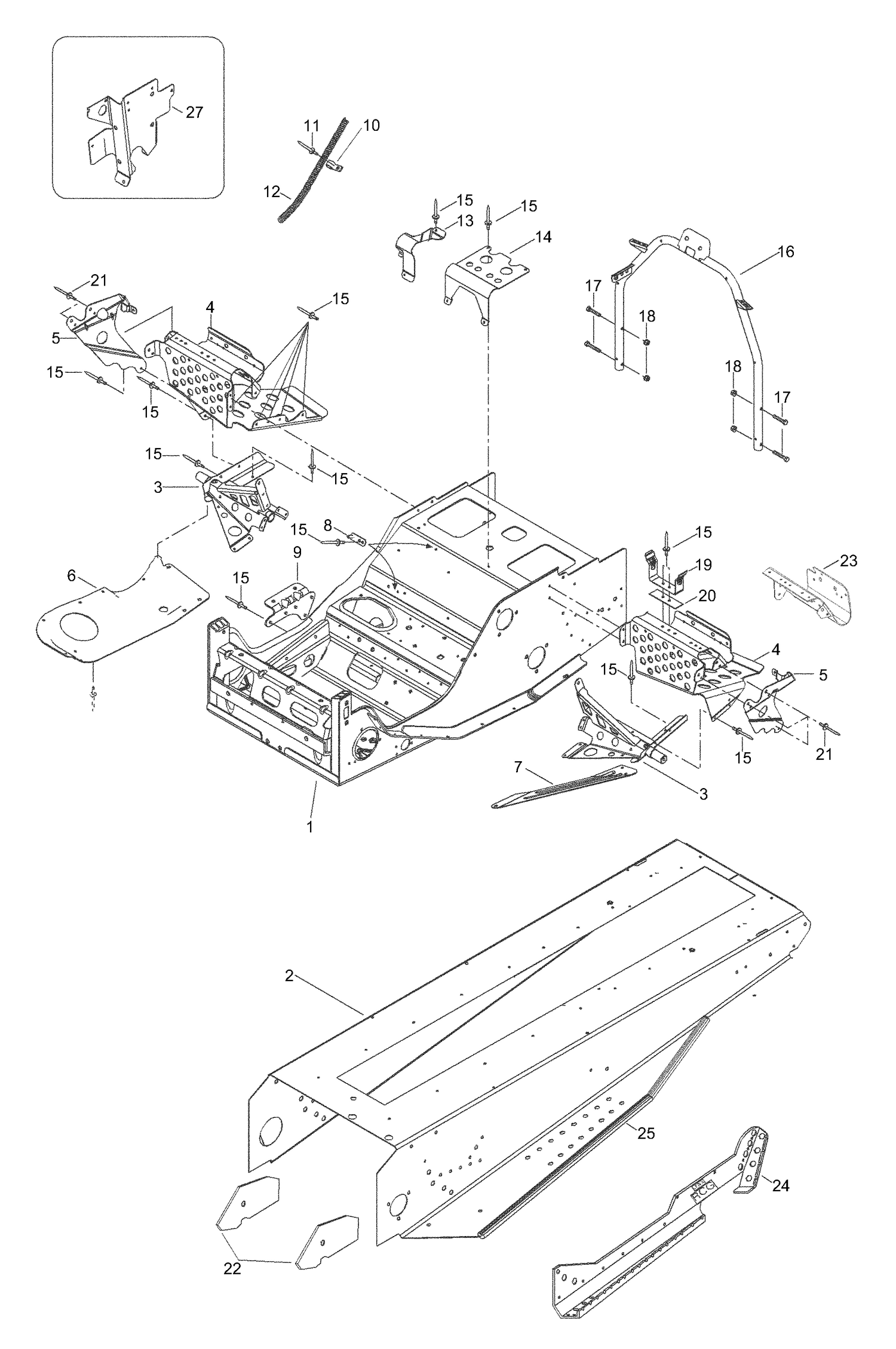

09- Frame
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 5247334 | L.H. support |
| 3 | 5247335 | R.H. support |
| 4 | 5146822 | R.H. front footrest |
| 4 | 5146823 | L.H. front footrest |
| 5 | 5146912 | R.H. footrest reinforcem. |
| 5 | 5146913 | L.H. footrest reinforcem. |
| 6 | 518319760 | R.H. bottom pan plate |
| 7 | 518322119 | LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 8 | 518319728 | Double bracket |
| 9 | 518206300 | Muffler support |
| 10 | 27092 | Clip |
| 11 | 36036 | Rivet |
| 12 | 518321569 | Rope guide |
| 13 | 518319762 | Hose support |
| 14 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 15 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 16 | 518321957 | Handle steering supp. |
| 17 | 40003 | Screw M6x35 |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 | 518202100 | Pulley Guard bracket |
| 20 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 21 | 390402200 | Pop Rivet 3/16 |
| 22 | 5346861 | Support |
| 23 | 5146917 | R.H. toe hold |
| 23 | 5146918 | L.H. toe hold |
| 24 | 5247045 | R.H. holed corner plate |
| 24 | 5247046 | L.H. holed corner plate |
| 25 | 5347260 | L.H. side reinforcement |
| 25 | 5347261 | R.H. side reinforcement |
