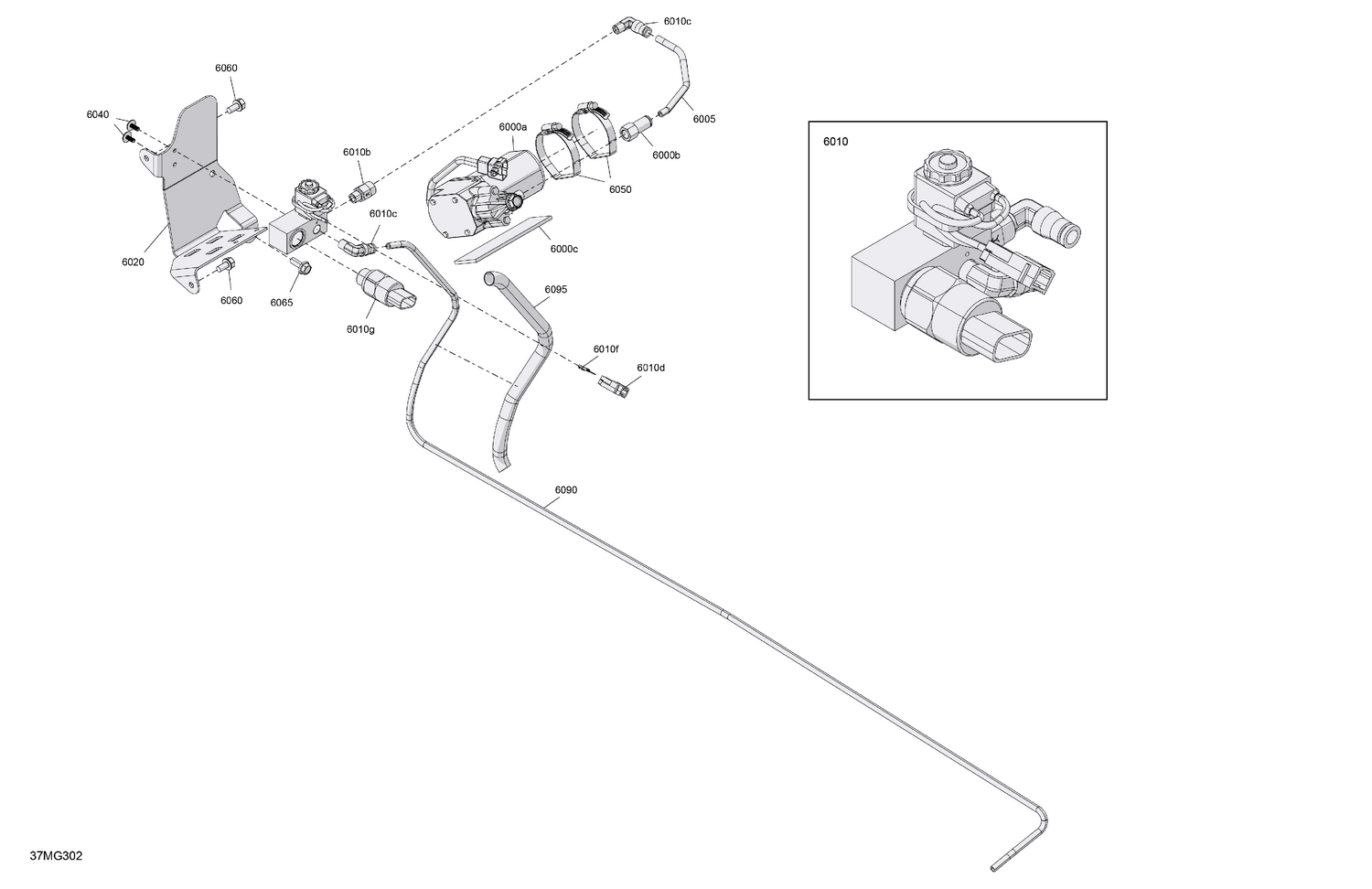

05- Suspension - Air Compressor
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 6000a | 503194941 | Compressor |
| 6000b | 706201253 | Female Connector |
| 6000c | 503191940 | Rubber Damper |
| 6005 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 6010b | 706000860 | Check Valve |
| 6010c | 706000872 | Elbow 90° |
| 6010d | 515175654 | Male Terminal Housing, 2 Circuits |
| 6010f | 515175232 | Male Terminal |
| 6010g | 515179088 | Air Suspension Sensor |
| 6020 | 503195677 | Support Manifold |
| 6040 | 250000565 | Hexalob Screw M4 X 10 |
| 6050 | 293650090 | Norma Gear Clamp |
| 6060 | 210261250 | Hex. Flange Screw M6 X 12 |
| 6065 | 207661654 | Hex. Flange Screw M6 X 16 |
| 6090 | 219704415 | Hose 4.32Mm 3000Mm Long |
