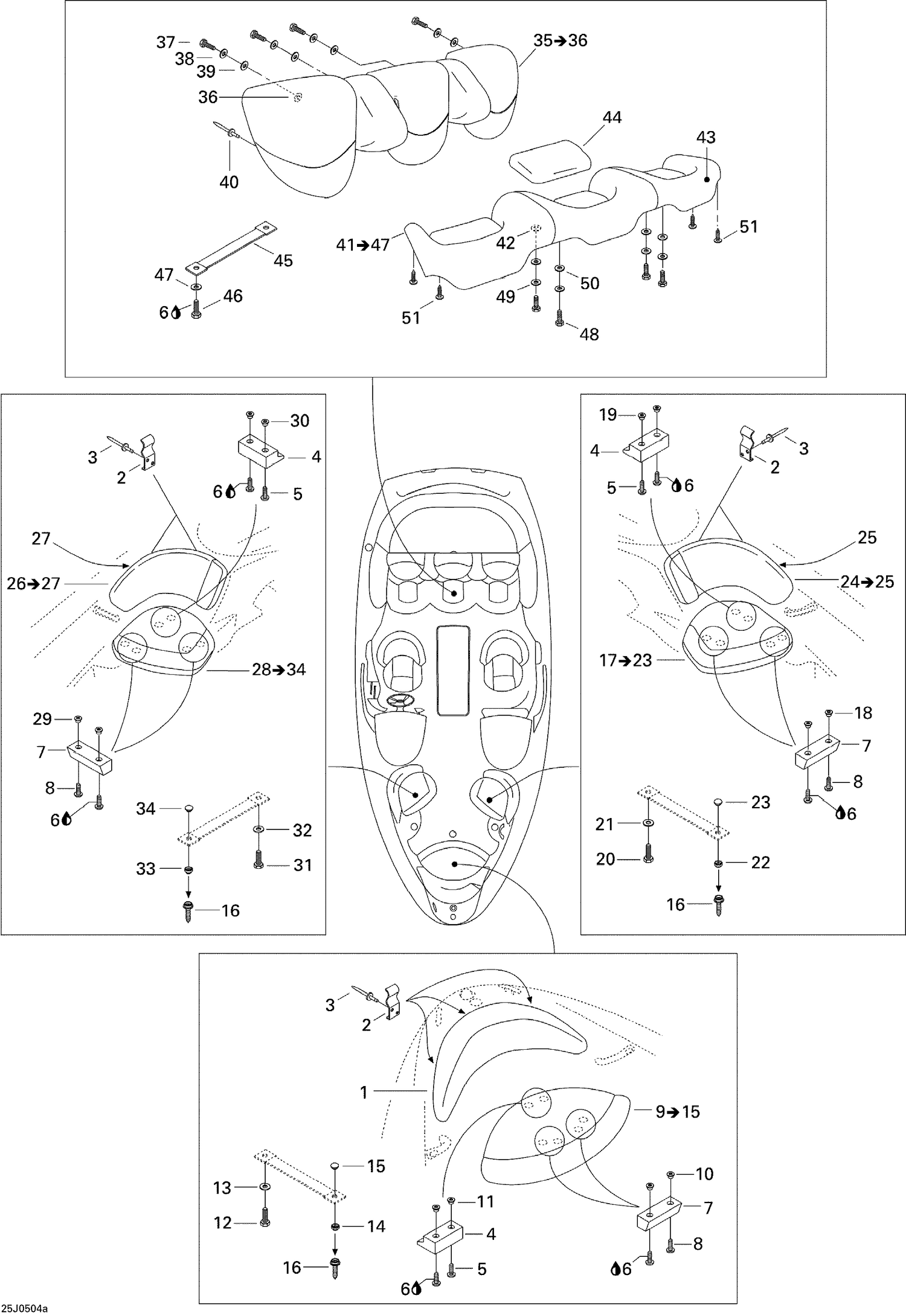

| Ref | Part Number | Description |
|---|
| 1 |
204612118 |
Front Backrest Ass’y |
| 2 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 3 |
293150043 |
Pop Rivet 3/16" |
| 4 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 5 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
204611805 |
LATCH - Call your local BRP dealership |
| 8 |
204100075 |
Screw 10-32 X 1-1/4” |
| 10 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 11 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 12 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 13 |
234042600 |
Flat Washer 4 mm, Stainless |
| 14 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 15 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 16 |
204100046 |
Threaded Stud 5/8” |
| 18 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 19 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 20 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 21 |
234042600 |
Flat Washer 4 mm, Stainless |
| 22 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 23 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 25 |
219704365 |
Was 293200017 Neoprene Seal |
| 27 |
219704365 |
Was 293200017 Neoprene Seal |
| 29 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 30 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 31 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 32 |
234042600 |
Flat Washer 4 mm, Stainless |
| 33 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 34 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 36 |
204100005 |
Anchor Washer |
| 37 |
207364060 |
Hex. Screw M6 X 40, Scotch Grip |
| 38 |
234062600 |
Flat Washer M6, Stainless |
| 39 |
234082600 |
Flat Washer 8 mm, Stainless |
| 40 |
293150065 |
RIVET - Call your local BRP dealership |
| 42 |
204100005 |
Anchor Washer |
| 43 |
204612242 |
Rear Seat Cover |
| 44 |
204612243 |
Rear Seat Cushing |
| 45 |
204612245 |
Rear Seat Strap |
| 46 |
207161660 |
Hex. Screw M6 X 16 |
| 47 |
234062600 |
Flat Washer M6, Stainless |
| 48 |
207364060 |
Hex. Screw M6 X 40, Scotch Grip |
| 49 |
234062600 |
Flat Washer M6, Stainless |
| 50 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
