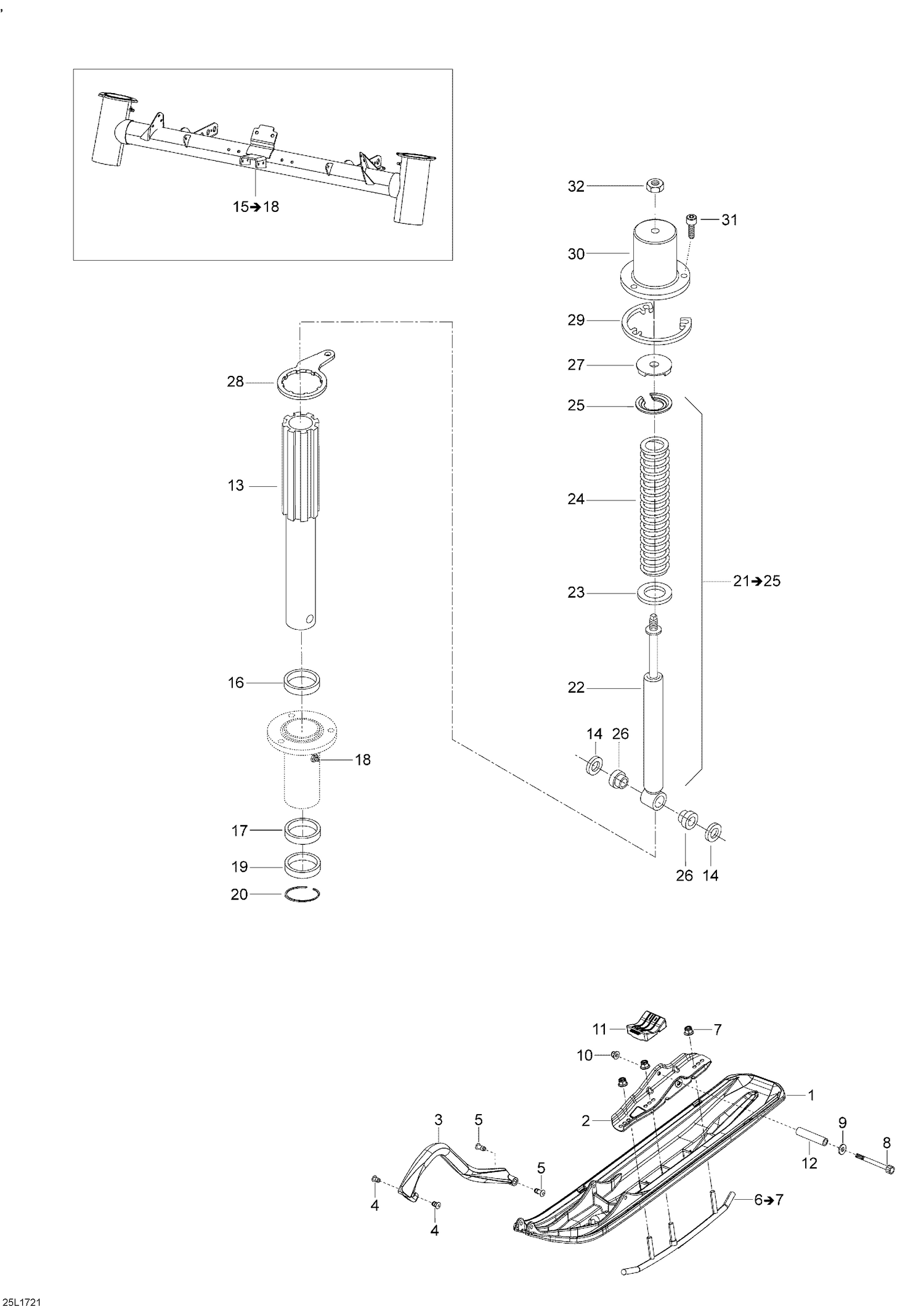

07- Front Suspension And Ski
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505073154 | Black Blade Ski |
| 2 | 505073240 | Ski Bridge |
| 3 | 505072976 | Black, Handle |
| 4 | 505071812 | Retainer 17mm long |
| 5 | 505072133 | Retainer 23mm Long |
| 7 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 8 | 231080044 | Socket HD Screw M10 x 100 |
| 9 | 732900049 | Washer |
| 10 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 11 | 505073411 | Rubber Damper |
| 12 | 505073209 | Ski Axle |
| 13 | 505073200 | Ski Leg |
| 14 | 505072579 | Spacer |
| 16 | 414803100 | Cushion Upper |
| 17 | 414803200 | Cushion Lower |
| 18 | 408200700 | Grease Fitting |
| 19 | 505072696 | Oil Seal |
| 20 | 505072698 | Circlip |
| 22 | 505073046 | Front Shock |
| 23 | 505073207 | Washer |
| 24 | 505072745 | Spring |
| 25 | 505072619 | Spring Stopper |
| 26 | 572034500 | Cushion |
| 27 | 605354835 | Rubber Bumper |
| 28 | 505073823 | Steering Arm |
| 29 | 505073983 | Spacer |
| 30 | 505072874 | LH Cover |
| 30 | 505072875 | RH Cover |
| 31 | 205082044 | Socket HD Screw M8 x 20 |
