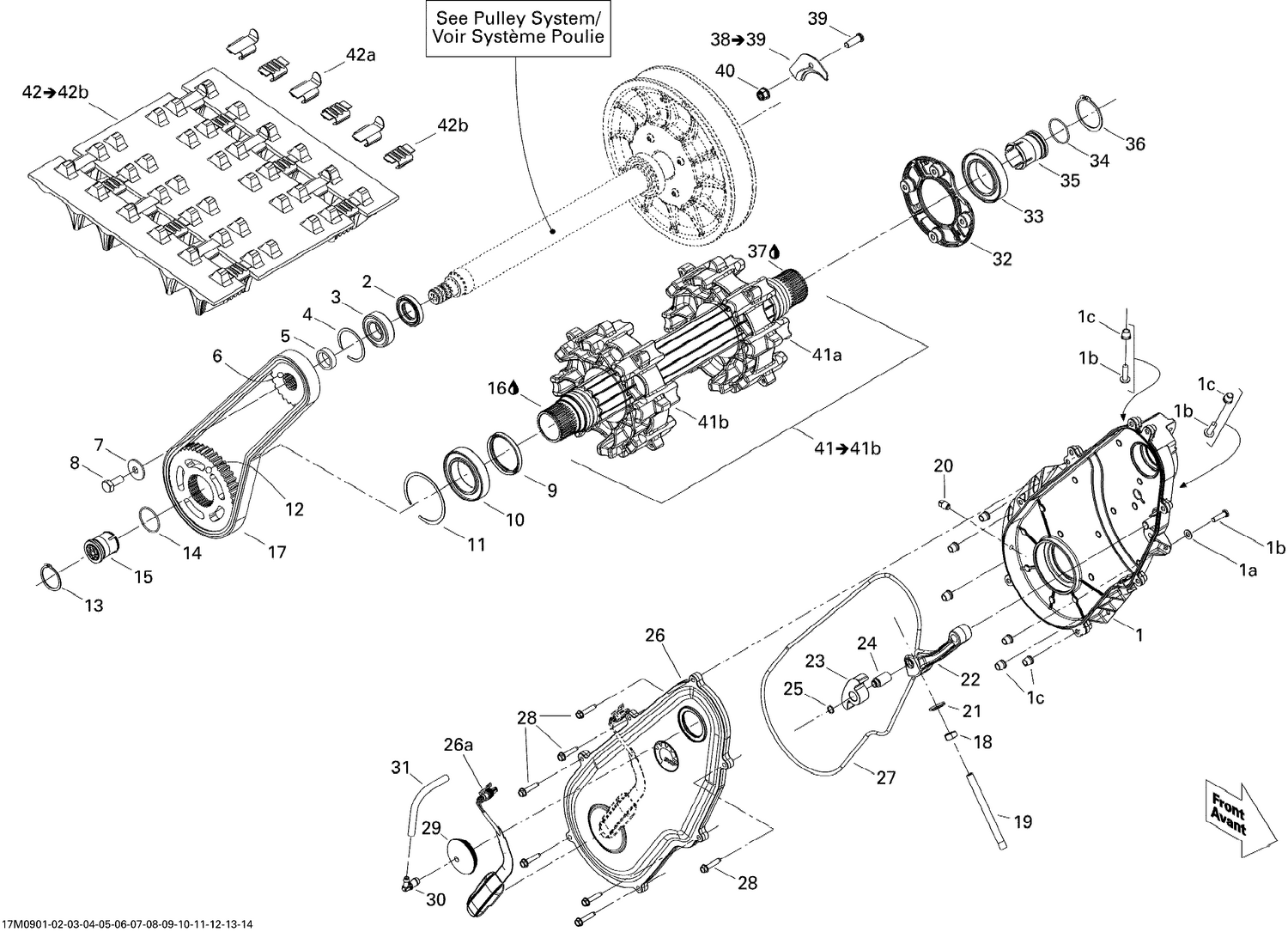

05- Drive System 800R
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504153181 | Chaincase This part replaces 504152865. |
| 1a | 234062410 | Flat Washer 6 mm |
| 1b | 207662034 | Hex. Flange Screw M6 X 20 |
| 1c | 233261434 | Flange Elastic Nut M6 |
| 2 | 293200158 | Oil Seal This part replaces 415049300. |
| 3 | 293350115 | Ball Bearing This part replaces 293350055. |
| 4 | 504152576 | Circlip |
| 5 | 504152628 | Shim |
| 7 | 504152784 | Spring Washer M10 |
| 8 | 207102544 | Hex. Screw M10 X 25 |
| 9 | 293200159 | Oil Seal This part replaces 504152571. |
| 10 | 293350059 | Ball Bearing This part replaces 504152573. |
| 11 | 504152582 | Circlip |
| 12 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 13 | 504152572 | Circlip |
| 14 | 293300122 | O-Ring |
| 15 | 504152619 | Magnetic Cap |
| 16 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 17 | 504152629 | Drive Chain, 104 Links |
| 18 | 232006414 | Hex. Nut M10 X 1.5 |
| 19 | 504152602 | Adjustment Screw |
| 20 | 504152636 | Magnetic Plug 1/8 - 27 NPTF |
| 21 | 250200100 | Bonded Washer |
| 22 | 504153429 | Tensioner chain This part replaces 504152685. |
| 23 | 504152739 | Slider Chain |
| 24 | 504152841 | Tensioner Axle |
| 25 | 504152282 | Circlip |
| 26 | 504153147 | Chaincase Cover Ass'y This part replaces 504152763. |
| 26a | 504152896 | Rotation Sensor This part replaces 504152732. |
| 27 | 293300130 | Tight Seal |
| 28 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 |
| 29 | 504152860 | Cap |
| 30 | 414580700 | Male Connector |
| 31 | 219704410 | Polyurethane Hose 10000Mm Long |
| 32 | 507032437 | Bearing Housing |
| 33 | 293350059 | Ball Bearing |
| 34 | 293300122 | O-Ring |
| 35 | 504152619 | Magnetic Cap |
| 36 | 504152572 | Circlip |
| 37 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 39 | 250300028 | Clinch Stud, M8 X 25 |
| 40 | 233281414 | Hex. Flange Elastic Nut M8 |
| 41a | Not | Available As Spare Part - Sprocket 8th |
| 41b | Not | Available As Spare Part - Sprocket 8th |
