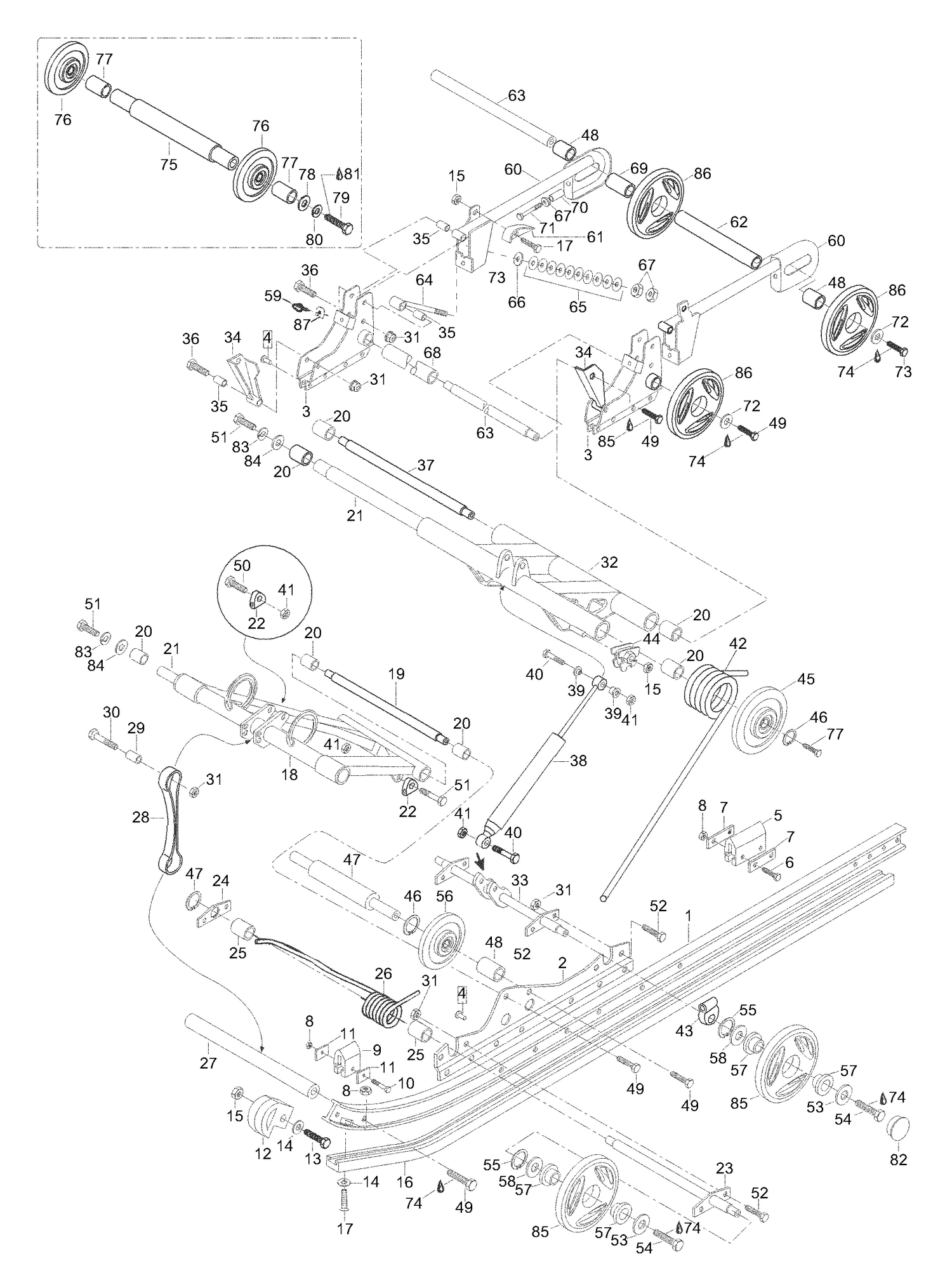

| Ref | Part Number | Description |
|---|
| 1 |
5142864 |
RUNNER - Call your local BRP dealership |
| 2 |
5344810 |
Side plate L.H. |
| 2 |
5344811 |
Side plate R.H. |
| 3 |
539672 |
Extension plate R.H. |
| 3 |
539673 |
Extension plate L.H. |
| 4 |
544212 |
Rivet - Call your local BRP dealership |
| 5 |
570023100 |
Rubber damper |
| 6 |
40002 |
Screw M6x40 |
| 7 |
548387 |
Support plate - Call your local BRP dealership |
| 8 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 9 |
5442328 |
STOPPER-RUBBER - Call your local BRP dealership |
| 10 |
40032 |
Screw M6x30 |
| 11 |
548470 |
Washer |
| 12 |
534578 |
Slide piece |
| 13 |
40031 |
Screw M6x25 |
| 14 |
20003 |
Washer |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 16 |
549582 |
Slide surface |
| 17 |
40030 |
Screw M6x20 |
| 18 |
538796 |
Front Arm Welding - Call your local BRP dealership |
| 19 |
548944 |
Arm Shaft - Call your local BRP dealership |
| 20 |
31046 |
Slide Bearing |
| 21 |
538945 |
Shaft |
| 22 |
548799 |
Crank block |
| 23 |
538802 |
Support wheel shaft |
| 24 |
548469 |
Support Plate - Call your local BRP dealership |
| 25 |
548841 |
Support Spacer - Call your local BRP dealership |
| 26 |
538797 |
Spring, L.H. d=9.0 |
| 26 |
538798 |
SPRING-RH - Call your local BRP dealership |
| 27 |
546599 |
Axle - Call your local BRP dealership |
| 28 |
5445988 |
Stopper Strap - Call your local BRP dealership |
| 29 |
546065 |
Sleeve |
| 30 |
40122 |
Screw M8x50 |
| 31 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 32 |
538801 |
Rear Arm - Call your local BRP dealership |
| 33 |
538803 |
Shaft |
| 34 |
5440349 |
Lever, L.H. |
| 34 |
5440350 |
Lever, R.H. |
| 35 |
545758 |
Sleeve |
| 36 |
207084544 |
Hex. Screw M8 X 45 This part replaces 40008. |
| 37 |
548946 |
Shaft |
| 38 |
23133 |
SHOCK - Call your local BRP dealership This part replaces 23016. |
| 39 |
544417 |
Shock Spacer - Call your local BRP dealership |
| 40 |
40017 |
Screw M10x50 |
| 41 |
33012 |
Nut elastic M10 |
| 42 |
5342228 |
Spring, L.H. d=11 |
| 42 |
5342229 |
Spring, R.H. d=11 |
| 43 |
548804 |
Spring crank block |
| 44 |
572030800 |
LH ADJUST CAM - Call your local BRP dealership |
| 44 |
572030900 |
RH ADJUST CAM - Call your local BRP dealership |
| 45 |
46031 |
Support wheel, 165/BK |
| 46 |
31001 |
Circlip |
| 47 |
5445985 |
SHAFT-SUPPORT - Call your local BRP dealership |
| 48 |
5444098 |
Spacer - Call your local BRP dealership |
| 49 |
40335 |
Allen screw M10x30 |
| 50 |
40018 |
Screw M10x55 |
| 51 |
40042 |
Screw M10x35 |
| 52 |
40035 |
Screw M8x16 |
| 53 |
503183100 |
Washer |
| 54 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 55 |
293370056 |
Circlip 20X1.75 DIN471 This part replaces 31007. |
| 56 |
46035 |
Support wheel, 135/BK |
| 57 |
503189534 |
Insert |
| 58 |
31091 |
Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership |
| 59 |
535455 |
Rubber Stopper - Call your local BRP dealership |
| 60 |
5243098 |
Extension L.H. |
| 60 |
5243099 |
Extension R.H. |
| 61 |
548262 |
Track guard |
| 62 |
5444096 |
Sleeve |
| 63 |
5445986 |
Rear Shaft - Call your local BRP dealership |
| 64 |
5440377 |
BOLT-EYE ADJUSTER - Call your local BRP dealership |
| 65 |
25004 |
Cup Spring |
| 66 |
234002410 |
Flat Washer 10 mm This part replaces 20011. |
| 67 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 68 |
542105 |
Sleeve,L=176 |
| 69 |
5444097 |
Sleeve |
| 70 |
546668 |
Spacer - Call your local BRP dealership |
| 71 |
40239 |
Screw M10x100 |
| 72 |
503183300 |
Washer |
| 73 |
250000019 |
Locking screw |
| 74 |
293800060 |
Loctite 243 |
| 75 |
503153600 |
Shaft |
| 76 |
572043500 |
Idler Wheel |
| 77 |
572048300 |
Sleeve |
| 78 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 79 |
40047 |
Screw M8x30 |
| 80 |
20014 |
Spring washer |
| 81 |
293800005 |
Loctite 271, 10ml |
| 82 |
570063600 |
Cap |
| 83 |
20047 |
Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 84 |
20105 |
Washer, hardened |
| 85 |
5345345 |
Support wheel, 135/BL |
| 86 |
5345346 |
Support wheel, 165/BL |
