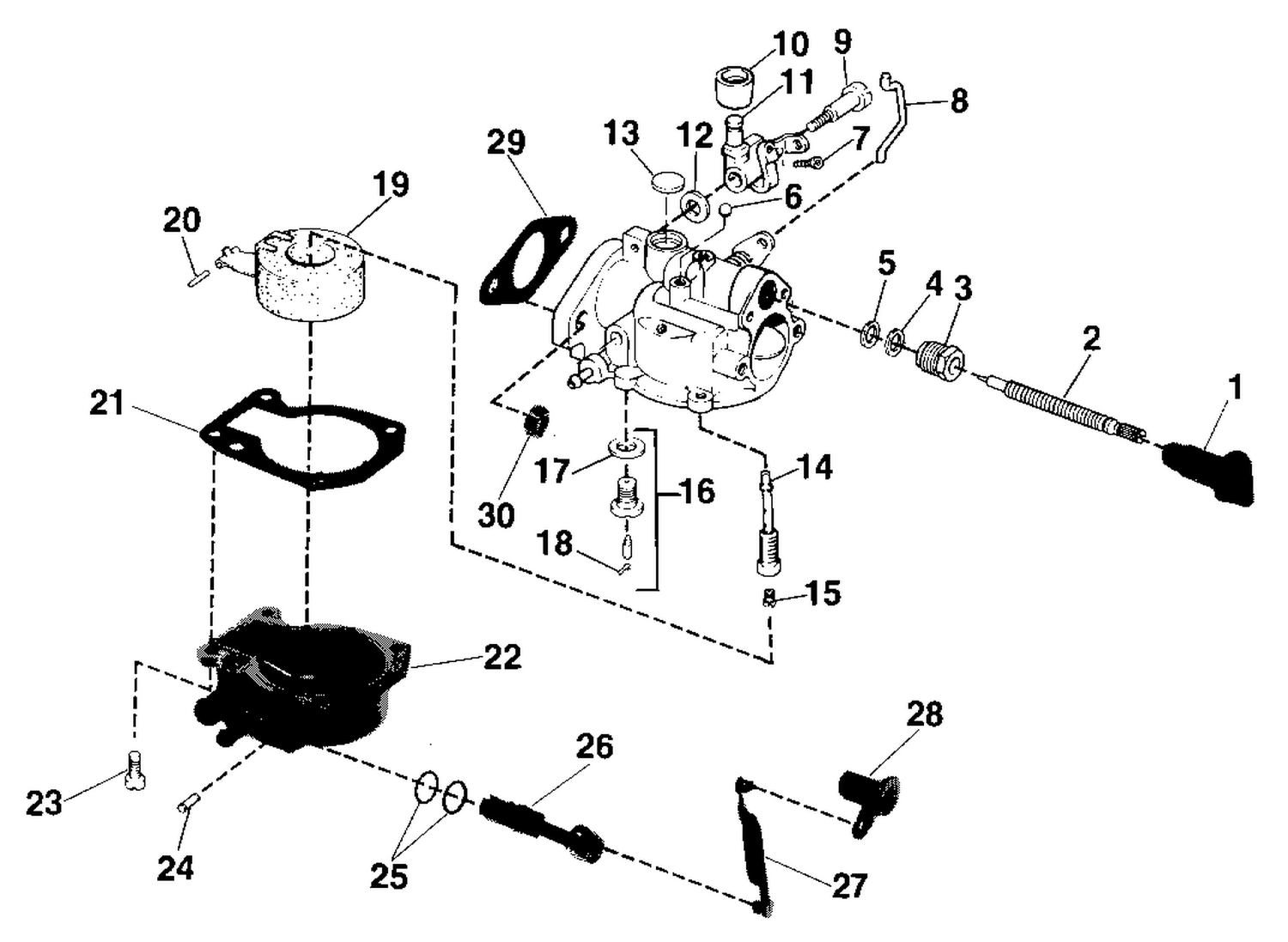

| Ref | Part Number | Description |
|---|
| 1 |
0331372 |
KNOB, Adjusting, slow speed needle valve |
| 2 |
0431634 |
NEEDLE VALVE ASSY., Slow speed adjustment This part replaces 0398712. |
| 8 |
0330192 |
LINK, Cam follower |
| 10 |
0323828 |
ROLLER, Cam follower |
| 12 |
0330130 |
ROLLER |
| 18 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 22 |
0397460 |
CHAMBER ASSY., Float |
| 26 |
0331467 |
VALVE, Fuel shut-off |
| 27 |
0332029 |
LINK, Fuel shut-off lever to valve |
| 28 |
0331368 |
LEVER, Primer pump assy., fuel shutoff |
| 29 |
0323452 |
GASKET |
| 30 |
0328742 |
NUT This part replaces 0306338. |
| 0396470 |
0396470 |
CARBURETOR ASSEMBLY |
| 0396512 |
0396512 |
CARBURETOR ASSEMBLY |
