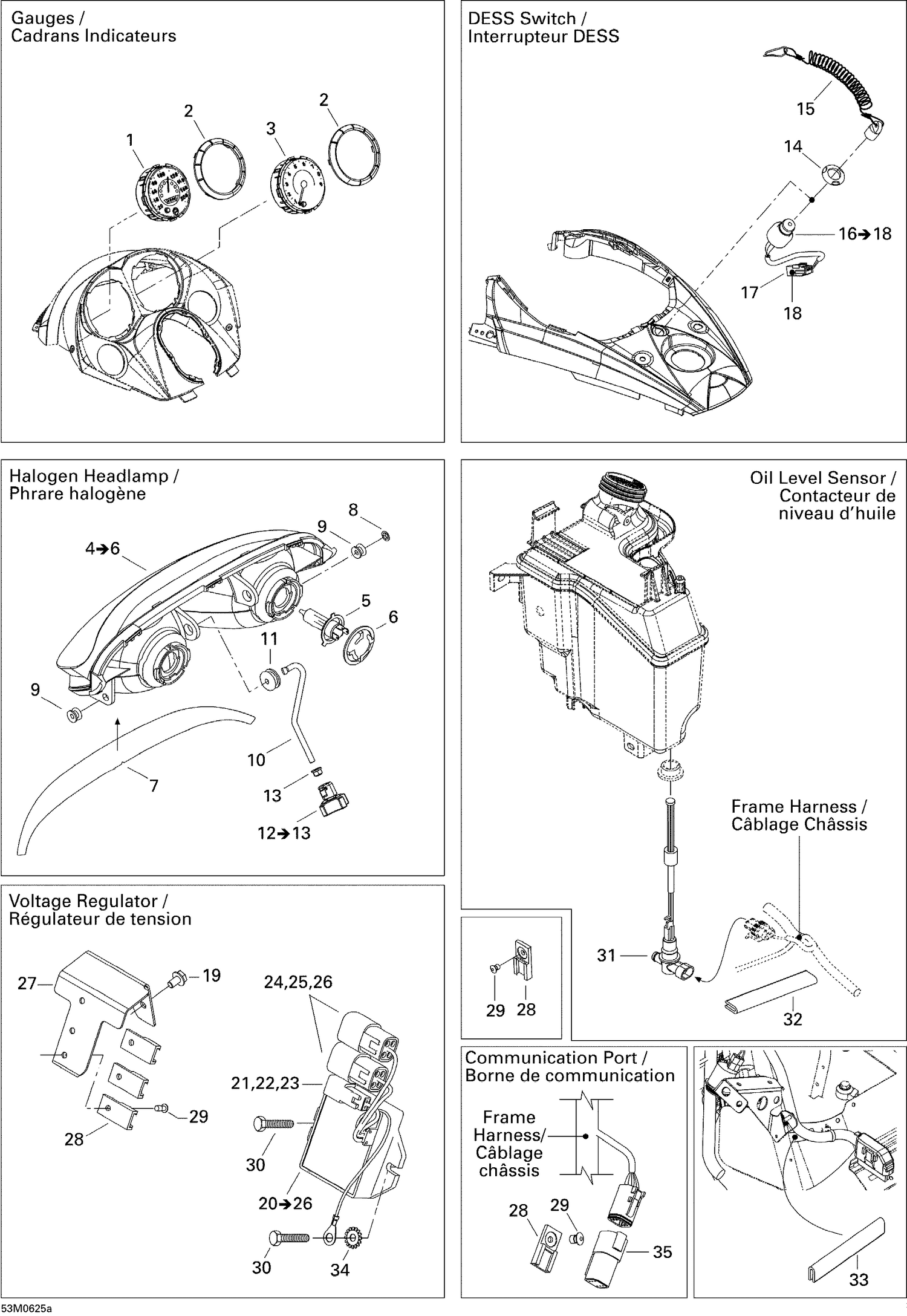

| Ref | Part Number | Description |
|---|
| 1 |
515176302 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176303 |
TACHOMETER - Call your local BRP dealership |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
516001328 |
HEADLAMP DECAL - Call your local BRP dealership |
| 8 |
732610072 |
Push Nut |
| 9 |
515175760 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 10 |
515175521 |
ADJUSTER ROD - Call your local BRP dealership |
| 11 |
415100800 |
Grommet - Call your local BRP dealership |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 15 |
515178284 |
DESS This part replaces 515176446. |
| 17 |
515175232 |
Male Terminal |
| 18 |
515175494 |
Male Housing, 3 Circuits |
| 19 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 21 |
409206900 |
Male Housing, 2 Circuits |
| 22 |
278000631 |
Male Terminal |
| 23 |
409207500 |
Male Lock, 2 Circuits |
| 24 |
278000635 |
Female Housing, 4 Circuits |
| 25 |
515175568 |
Male Terminal |
| 26 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 27 |
515176191 |
HOUSING SUPPORT - Call your local BRP dealership |
| 28 |
270000141 |
Clip This part replaces 515175917. |
| 29 |
293150037 |
Avdel Rivet 3/16" |
| 30 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 31 |
515176327 |
OIL LEVEL SENSOR - Call your local BRP dealership |
| 32 |
509000263 |
TRIM - Call your local BRP dealership |
| 33 |
219704353 |
Was 271000110 Protection Trim |
| 34 |
250200041 |
Lock Washer Serrated M6 |
