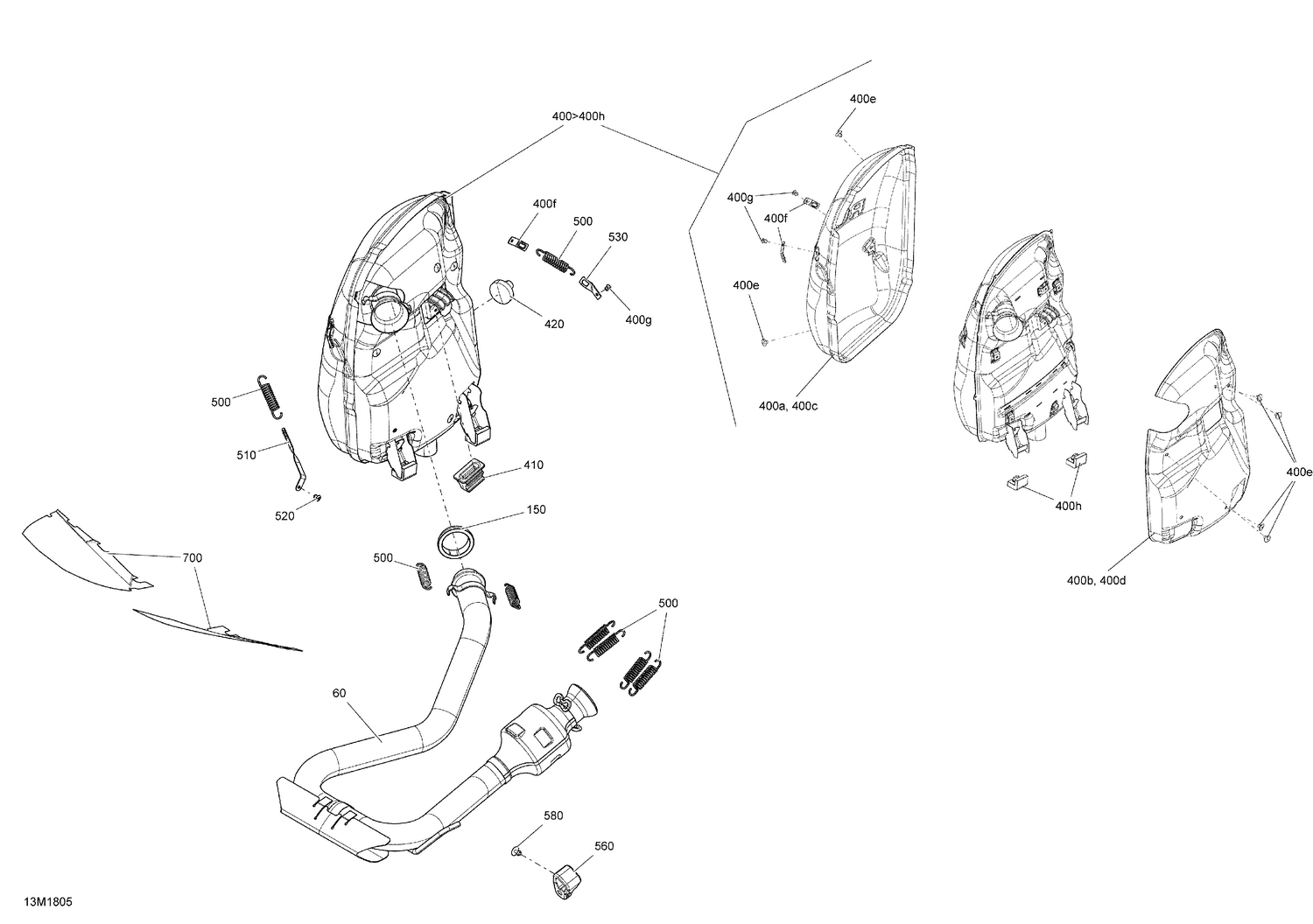

01- Exhaust 900 ACE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 514054960 | Welded Pipe |
| 150 | 707601033 | Exhaust Gasket |
| 400a | 514055325 | RH Heat Shield |
| 400b | 514055128 | LH HEAT SHIELD - Call your local BRP dealership |
| 400c | 514054769 | RH Insulating Wool |
| 400d | 514054881 | LH Insulating Wool |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054522 | Spring Bracket |
| 400g | 390909200 | Avex Rivet |
| 400h | 514054496 | Lower Stopper |
| 410 | 514055298 | UPPER STOPPER - Call your local BRP dealership |
| 420 | 514053654 | Rubber Bumper |
| 500 | 415107100 | Spring |
| 510 | 514055030 | Spring Bracket |
| 520 | 293150144 | Stavex Rivet |
| 530 | 514055037 | Spring Bracket |
| 560 | 514055012 | Rubber |
| 580 | 293150104 | Pop Rivet 3/16" |
