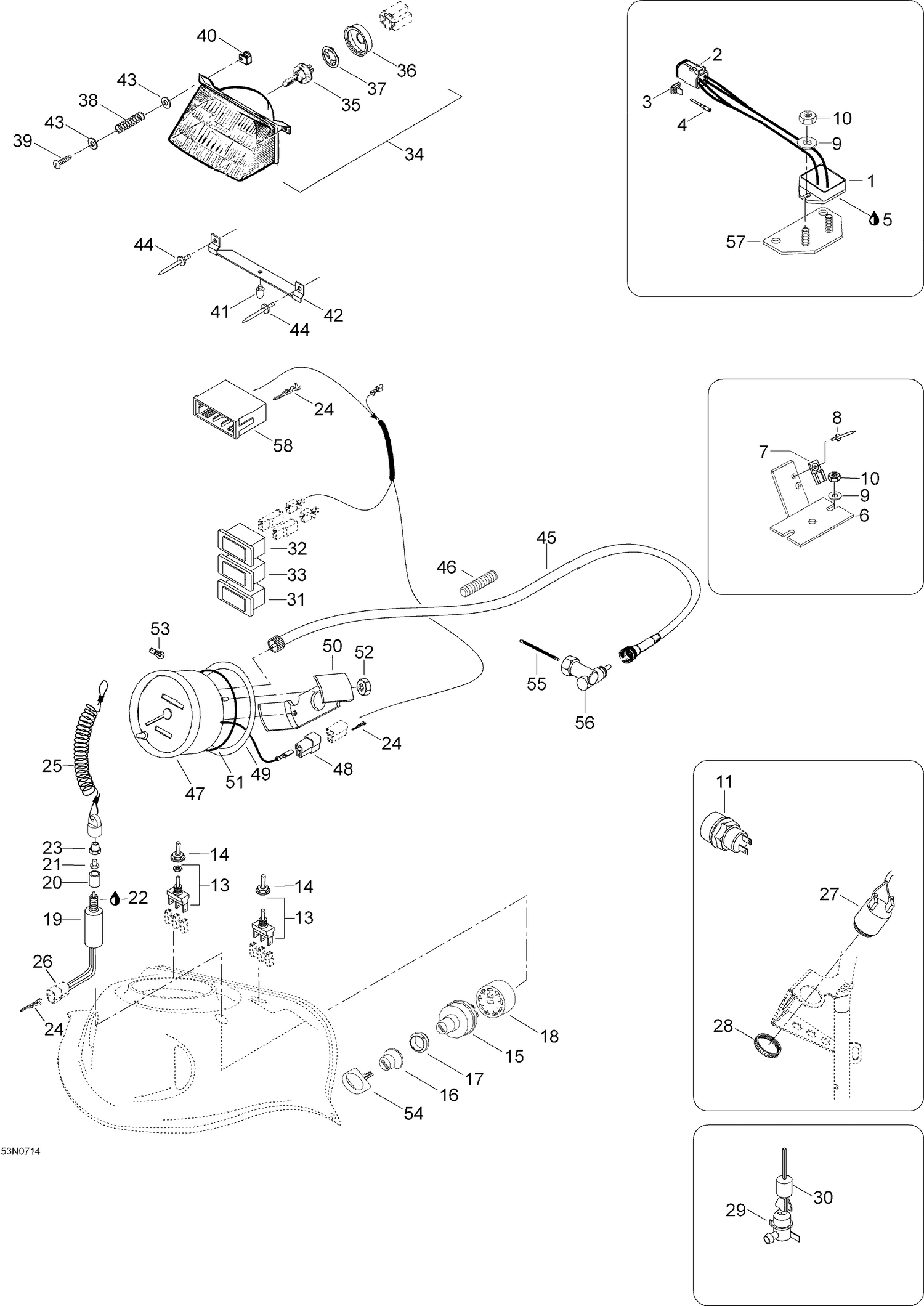

| Ref | Part Number | Description |
|---|
| 2 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 3 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 4 |
515175568 |
Female terminal |
| 5 |
413707500 |
Grease tube LMZ, 400 g |
| 6 |
605350731 |
Cooling plate |
| 7 |
270000141 |
Clip |
| 8 |
36005 |
RIVET 4.8X12 AL BLACK,(1 PAC <=> 50 PC) |
| 9 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 10 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 11 |
415130372 |
Push Button This part replaces 415101200. |
| 13 |
410107300 |
Katkaisin, käsien lämmitin |
| 14 |
515175281 |
Rubber cover for switch |
| 15 |
42019 |
Ignition switch |
| 16 |
570013700 |
Suukappale, virtalukko |
| 17 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 18 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 19 |
515175653 |
Brake Switch This part replaces 515175571. |
| 20 |
605352540 |
SPACER - Call your local BRP dealership |
| 21 |
570151000 |
Cap protection, black |
| 23 |
515145900 |
Switch Nut |
| 24 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 25 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 26 |
42268 |
Liitinkotelo (2-nap. naaras) |
| 27 |
515176035 |
HORN - Call your local BRP dealership |
| 28 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 29 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 30 |
414681900 |
Float for sensor |
| 31 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 32 |
410109600 |
Pilot lamp (Headlamp) |
| 33 |
410109500 |
Pilot lamp (Oil level) |
| 35 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410503700. |
| 36 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 37 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 38 |
517168600 |
Fjäder |
| 39 |
243244040 |
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 40 |
572078600 |
Projector nut |
| 41 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 42 |
539864 |
Strållkastare stöd |
| 43 |
20002 |
Washer A5,3 DIN125 -St m Zne |
| 44 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 45 |
45006 |
Cable for speedometer - Call your local BRP dealership |
| 46 |
390004 |
Suojaspiraali (2400 mm) |
| 47 |
605152889 |
Hastighetsmätare, vit |
| 48 |
42268 |
Liitinkotelo (2-nap. naaras) |
| 49 |
517258500 |
Tukirengas |
| 50 |
414806500 |
Housing support |
| 51 |
414807100 |
O-rengas |
| 52 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 53 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 54 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 55 |
45075 |
Mellan vajer l=75mm |
| 56 |
35021 |
Vinkelväxel 1:1.4 |
| 57 |
605351360 |
REGULATOR BRACKET - Call your local BRP dealership |
