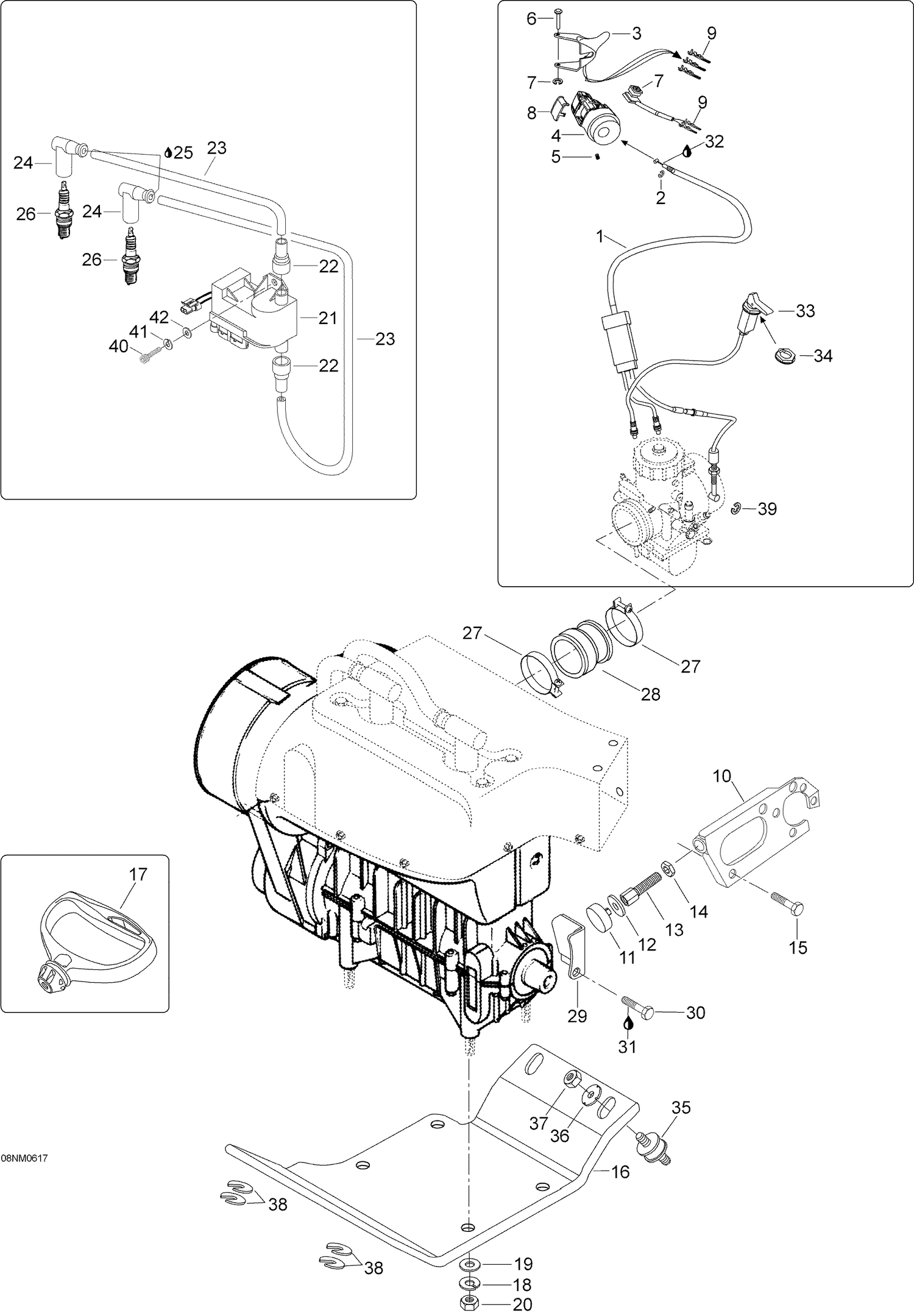

| Ref | Part Number | Description |
|---|
| 1 |
5145673 |
Throttle Cable This part replaces M5145673. |
| 2 |
M31038 |
Circlip |
| 3 |
512060214 |
Handle Ass'y This part replaces 512059767. |
| 4 |
572100900 |
Throttle Handle Housing |
| 5 |
414438700 |
Lever Pin |
| 6 |
414439000 |
Circlip |
| 7 |
515175410 |
Kill Switch |
| 8 |
572100901 |
Switch Cover |
| 9 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 10 |
605350127 |
PLATE SUPPORT - Call your local BRP dealership |
| 11 |
512059710 |
STOPPER - Call your local BRP dealership |
| 12 |
M20028 |
Washer |
| 13 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 14 |
M33218 |
Hex. Jam Nut |
| 15 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 16 |
M5246291 |
SUPPORT-ENGINE - Call your local BRP dealership |
| 17 |
572084400 |
Starter Grip |
| 18 |
M20047 |
Lock Washer |
| 19 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 20 |
232006414 |
Hex. Nut M10 X 1.5 |
| 22 |
515174900 |
PROTECTION CAP - Call your local BRP dealership |
| 23 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 24 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 25 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 26 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 27 |
512059005 |
GEMI CLAMP - Call your local BRP dealership |
| 28 |
420867481 |
Flange |
| 29 |
M5344446 |
Welded Stopper Plate |
| 30 |
207181644 |
Hex. Screw M8 x 16 |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 34 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 35 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 36 |
512056700 |
Lock Washer |
| 37 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 38 |
M546221 |
Washer |
| 39 |
414753500 |
Circlip This part replaces M31035. |
| 40 |
M40332 |
SCREW - Call your local BRP dealership |
| 41 |
234161471 |
Lock Washer M6, Black |
