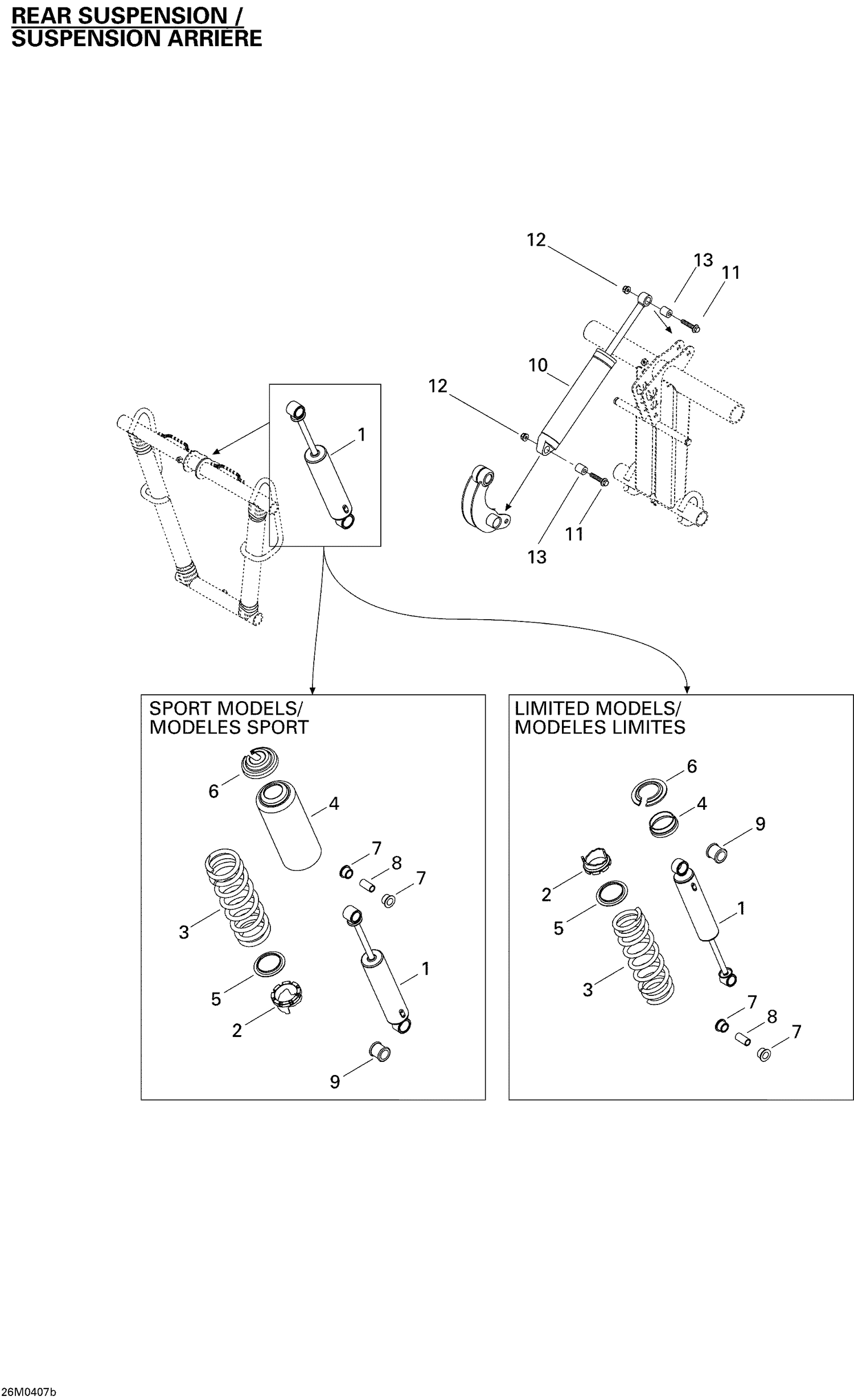

08- Rear Shocks
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 3 | 503189686 | Black, Spring |
| 5 | 503191872 | Spring Guide This part replaces 517184300. |
| 7 | 503189117 | Urethane Bushing |
| 8 | 503189282 | Bushing |
| 9 | 503189271 | Bushing |
| 11 | 207684044 | Hex. Flange Screw M8 X 40 |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 |
