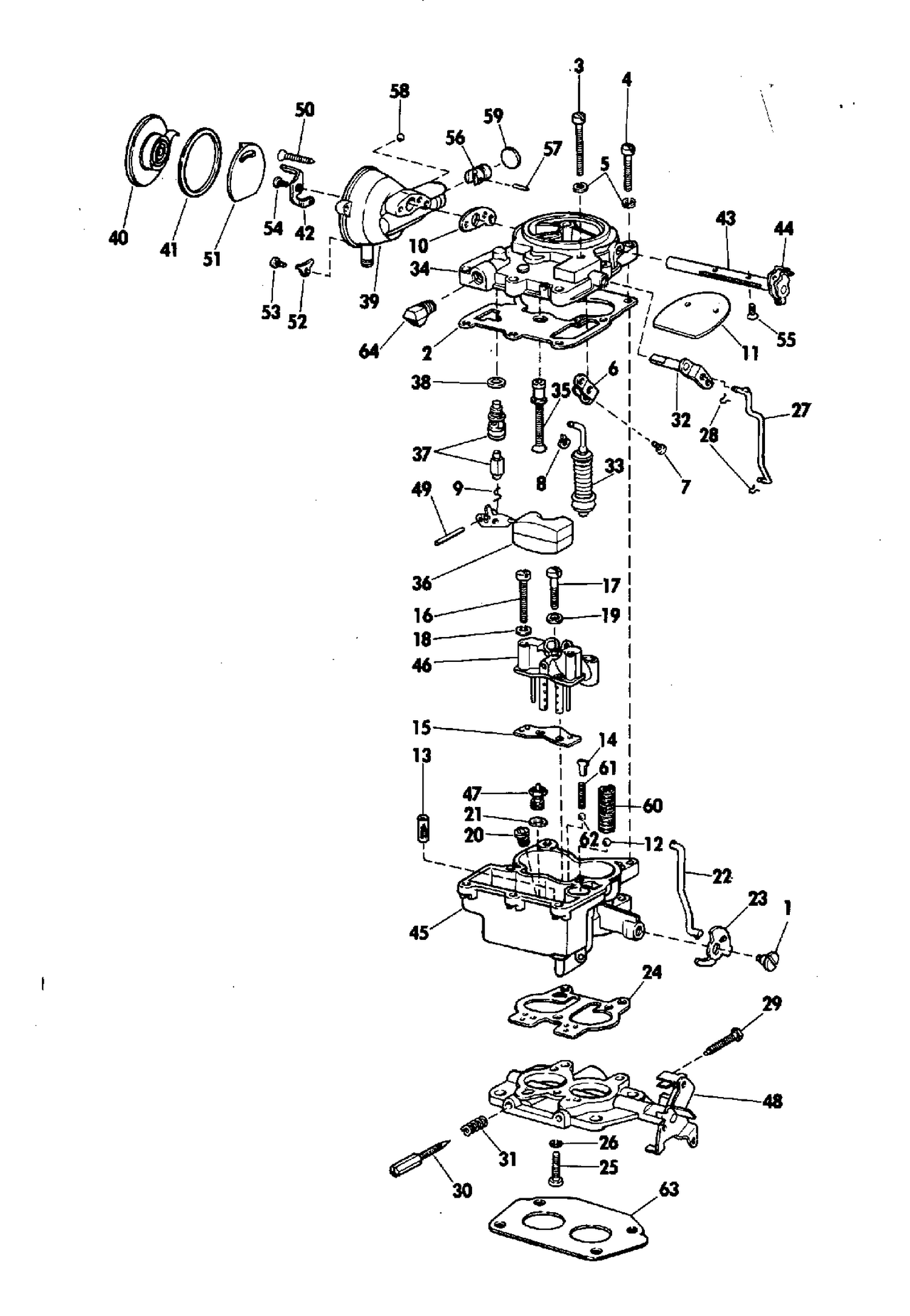

| Ref | Part Number | Description |
|---|
| 1 |
0311651 |
SCREW, Idle stop |
| 2 |
0312415 |
GASKET,Air horn |
| 2 |
0314565 |
GASKET,Air horn |
| 3 |
0312416 |
SCREW, Air horn |
| 4 |
0312417 |
SCREW, Air honr, short |
| 6 |
0312419 |
LEVER, Pump inside |
| 7 |
0311661 |
SCREW, Pump lever |
| 8 |
0312421 |
CLIP, Pump stem |
| 9 |
0312423 |
CLIP, Float valve |
| 10 |
0312424 |
GASKET,Choke housing |
| 11 |
0312425 |
CHOKE VALVE |
| 12 |
0312426 |
BALL,Pump inlet check (aluminum) |
| 13 |
0312427 |
SCREEN,Pump inlet |
| 14 |
0312428 |
GUIDE,Pump discharge spring |
| 15 |
0312429 |
GASKET,Venturi cluster |
| 15 |
0314566 |
GASKET,Venturi cluster |
| 16 |
0312430 |
SCREW, Venturi cluster outer |
| 17 |
0312431 |
SCREW, Venturi cluster, center |
| 18 |
0312432 |
LKWASH, Outer cluster screw |
| 19 |
0312433 |
GASKET,Center venturi cluster screw |
| 20 |
0313119 |
MAIN METERING JET |
| 20 |
0314567 |
MAIN METERING JET |
| 21 |
0312435 |
GASKET,Power valve |
| 22 |
0312436 |
CHOKE ROD |
| 22 |
0313057 |
CHOCKE ROD |
| 23 |
0312437 |
STOP, Idel speed screw |
| 24 |
0312438 |
GASKET,Throttle body |
| 25 |
0312439 |
SCREW, Throttle body |
| 26 |
0312440 |
LOCKWASHER, Throttle body |
| 27 |
0312441 |
PUMP ROD |
| 27 |
0384469 |
PUMP ROD & CLIP ASSY This part replaces 0313058. |
| 28 |
0312442 |
CLIP, Pump rod |
| 29 |
0312443 |
SCREW, Idle stop |
| 30 |
0312444 |
NEEDLE,Idle adjusting |
| 31 |
0312445 |
SPRING, Idle needle |
| 32 |
0381385 |
PUMP SHAFT & LEVER ASSEMBLY |
| 32 |
0382010 |
PUMP SHAFT AND LEVER ASSEMBLY |
| 33 |
0381386 |
PUMP ASSEMBLY |
| 33 |
0383093 |
PUMP ASSEMBLY |
| 34 |
0381387 |
AIR HORN ASSEMBLY |
| 35 |
0382128 |
POWER PISTON ASSEMBLY |
| 35 |
0383094 |
POWER PISTON ASSEMBLY |
| 36 |
0381389 |
FLOAT ASSEMBLY |
| 37 |
0381390 |
NEEDLE AND SEAT ASSEMBLY |
| 37 |
0383095 |
NEEDLE AND SEAT ASSEMBLY |
| 38 |
0312422 |
GASKET,Needle seat |
| 39 |
0381391 |
CHOKE HOUSING ASSEMBLY |
| 40 |
0980005 |
COVER COIL & GASKET This part replaces 0381392. |
| 41 |
0311670 |
GASKET,Thermostat cover |
| 42 |
0381394 |
CHOKE LEVER & LINK ASSEMBLY |
| 43 |
0381395 |
CHOKE SHAFT ASSEMBLY |
| 44 |
0381393 |
CHOKE LEVER & COLLAR ASSEMBLY |
| 44 |
0382015 |
CHOKE LEVER AND COLLAR ASSEMBLY |
| 45 |
0382129 |
FLOAT BOWL ASSEMBLY |
| 45 |
0383096 |
FLOAT BOWL ASSEMBLY |
| 46 |
0382130 |
VENTURI CLUSTER ASSEMBLY |
| 46 |
0383097 |
VENTURI CLUSTER ASS. |
| 47 |
0381398 |
POWER VALVE ASSEMBLY |
| 47 |
0382020 |
POWER VALVE ASSEMBLY |
| 48 |
0381399 |
THROTTLE BODY ASSEMBLY |
| 48 |
0383098 |
THROTTLE BODY ASSY |
| 49 |
0311677 |
PIN, Float hinge |
| 50 |
0311672 |
SCREW, Choke housing |
| 51 |
0311671 |
BAFFLE PALTE |
| 52 |
0311662 |
RETAINER, Therm cover |
| 53 |
0311661 |
SCREW, Pump lever |
| 54 |
0311669 |
SCREW, Choke lever |
| 55 |
0311666 |
SCREW, Choke valve |
| 56 |
0311665 |
CHOKE PISTON |
| 57 |
0311664 |
PIN, Choke piston |
| 58 |
0311673 |
PLUG, Lead ball |
| 59 |
0311663 |
PLUG, Expansion |
| 60 |
0311660 |
SPRING,Pump return |
| 61 |
0311656 |
SPRING,Pump discharge |
| 62 |
0311655 |
BALL, Pump discharge |
| 63 |
0312240 |
GASKET, Carb to manf 155 |
| 64 |
0312239 |
FITTING,Carburetor to fuel line |
| 0382132 |
0382132 |
CARBURETOR & BASKET ASSEMBLY |
| 0382733 |
0382733 |
CARBURETOR ASSEMBLY |
