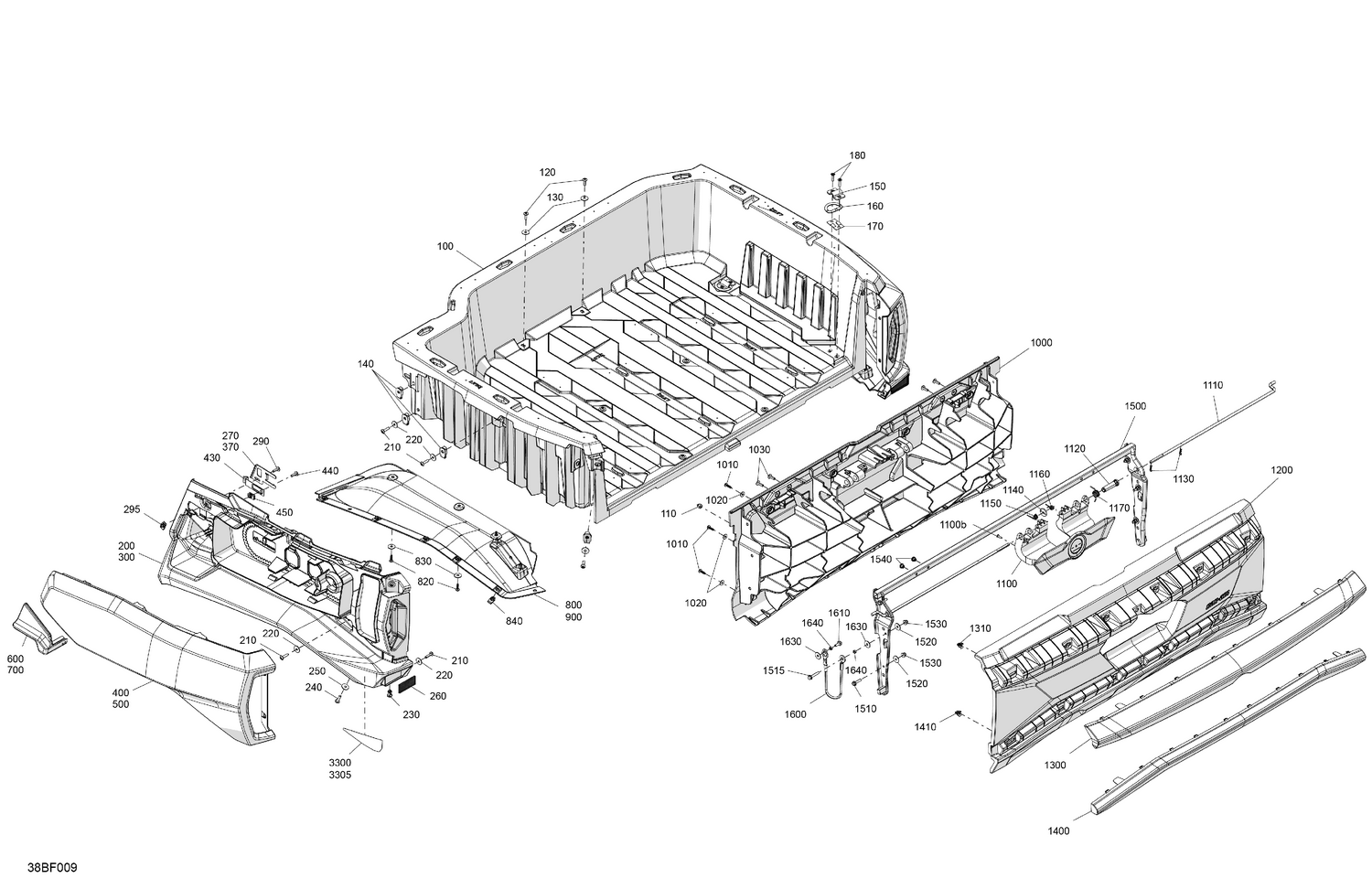

07- Body - Cargo - Upper Section
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 715009860 | Open Carrier Kit |
| 110 | 293830005 | Rubber Bumper |
| 120 | 250000807 | Torx Truss Screw M6 X 25 |
| 130 | 250200162 | Flat Washer M6.6 X 22 |
| 140 | 250100224 | Panel Nut M6 X 1.0 |
| 150 | 708302992 | Tie-Down Ring Bracket |
| 160 | 708302990 | D-Ring |
| 170 | 708302991 | Tie-Down Ring Spring |
| 180 | 250001107 | Torx Flat Head Screw T-30 S.Grip M6X25 |
| 200 | 705015041 | LH Rear Mud Guard |
| 210 | 250000807 | Torx Truss Screw M6 X 25 |
| 220 | 250200162 | Flat Washer M6.6 X 22 |
| 230 | 293150230 | Tuflok Plastic Rivet |
| 240 | 250000807 | Torx Truss Screw M6 X 25 |
| 250 | 250200162 | Flat Washer M6.6 X 22 |
| 260 | 520001820 | Red Reflector |
| 270 | 708303718 | LH Stop Plate |
| 290 | 250000722 | Torx Screw M6 X 20 |
| 295 | 250100198 | Panel Nut M6 X 1.0 |
| 300 | 705015042 | RH Rear Mud Guard |
| 370 | 708303719 | RH Stop Plate |
| 400 | 708304853 | Fiery Red, LH Open Carrier Trim |
| 430 | 708303717 | Latch |
| 440 | 250000722 | Torx Screw M6 X 20 |
| 450 | 250100198 | Panel Nut M6 X 1.0 |
| 500 | 708304854 | Fiery Red, RH Open Carrier Trim |
| 600 | 708304070 | LH Handle |
| 700 | 708304071 | RH Handle |
| 800 | 705015482 | LH Rear Wheel Arch Protector |
| 820 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 830 | 250200162 | Flat Washer M6.6 X 22 |
| 840 | 250100198 | Panel Nut M6 X 1.0 |
| 900 | 705015483 | RH Rear Wheel Arch Protector |
| 1000 | 708303573 | Tailgate Liner |
| 1010 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1020 | 250200025 | Washer M5 |
| 1030 | 250000722 | Torx Screw M6 X 20 |
| 1100b | 250000759 | Torx Truss Pt K40 X 16 |
| 1110 | 708303590 | Latch Rod |
| 1120 | 708304564 | Bushing Hinge |
| 1130 | 269800431 | Hairpin Cotter |
| 1140 | 708301653 | Washer |
| 1150 | 705009470 | Spring |
| 1160 | 705009471 | Spring |
| 1170 | 705009468 | Spring |
| 1200 | 708303389 | Exterior Tailgate Panel |
| 1300 | 708304857 | Fiery Red, Upper Tailgate Trim |
| 1310 | 517306478 | Clip |
| 1400 | 708304858 | Fiery Red, Lower Tailgate Trim |
| 1410 | 517306478 | Clip |
| 1500 | 708303996 | Male Panel Hinge |
| 1510 | 207662554 | Hex. Flange Screw M6 X 25 |
| 1515 | 207663554 | Hex. Flange Screw M6 X 35 |
| 1520 | 250200162 | Flat Washer M6.6 X 22 |
| 1530 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1540 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1600 | 708301491 | Cable |
| 1610 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1630 | 250200162 | Flat Washer M6.6 X 22 |
| 1640 | 708300737 | Bushing |
| 3300 | 705019346 | Red, LH Reflector |
