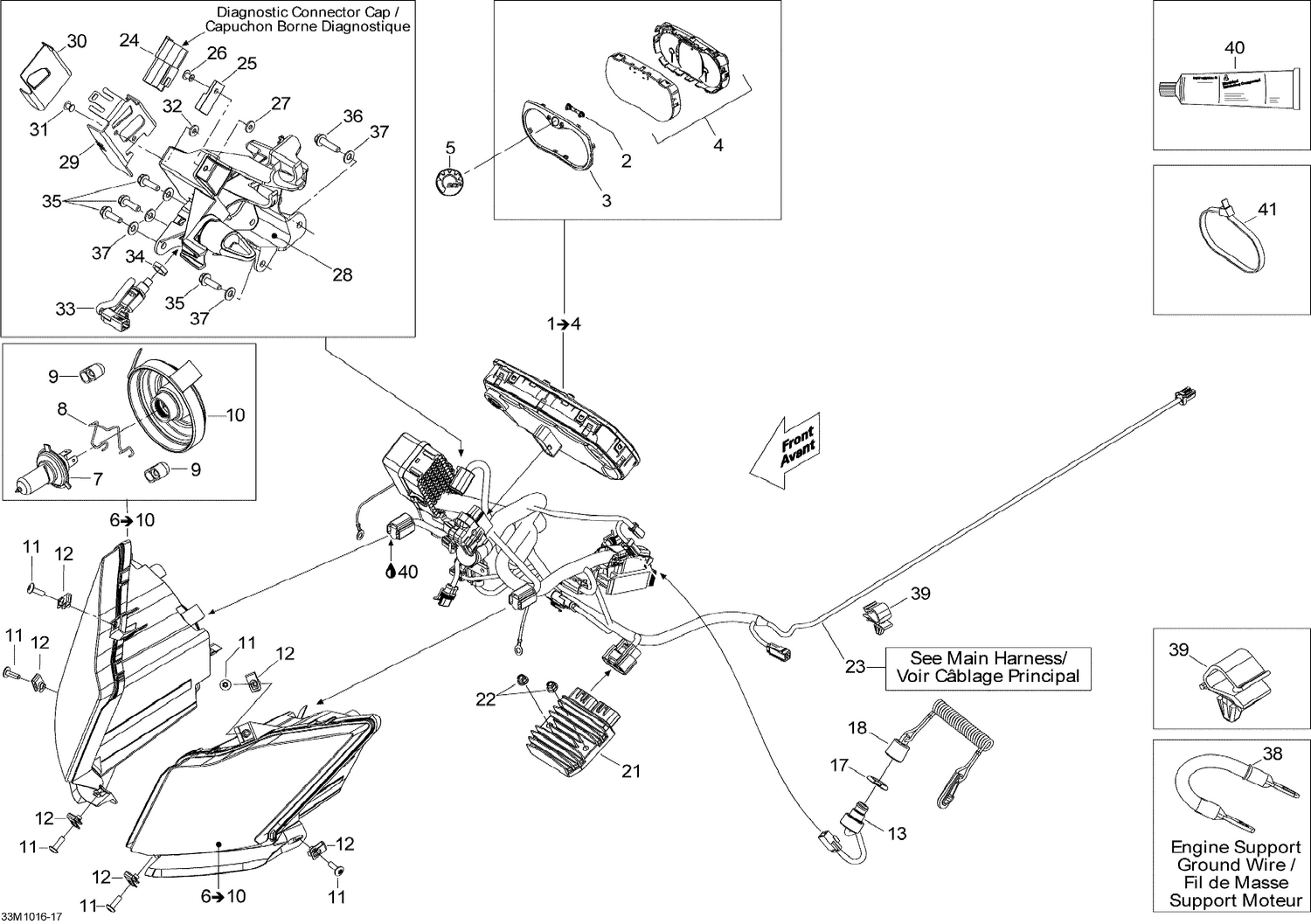

| Ref | Part Number | Description |
|---|
| 2 |
415129355 |
Speedometer Button |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8 |
515176493 |
BULB HOLDER - Call your local BRP dealership |
| 9 |
515176498 |
Cap |
| 10 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 11 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 12 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 13 |
515177249 |
DESS Switch This part replaces 515176815. |
| 17 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 18 |
515178284 |
DESS This part replaces 515176461. |
| 21 |
710010539 |
Voltage Regulator This part replaces 278002021. |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 23 |
515176836 |
Main Harness |
| 24 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 25 |
234051410 |
Flat Washer M5 |
| 25 |
270000141 |
Clip |
| 26 |
390402200 |
Pop Rivet 3/16" |
| 28 |
515177044 |
PLATE - Call your local BRP dealership This part replaces 515176544. |
| 29 |
515177549 |
Fuse Support - Call Your Local BRP Dealership This part replaces 515176514. |
| 30 |
515176637 |
PROTECTOR - Call your local BRP dealership |
| 31 |
390402200 |
Pop Rivet 3/16" |
| 32 |
234051410 |
Flat Washer M5 |
| 33 |
515176472 |
Switch Ass'y |
| 34 |
250000373 |
BRASS NUT - Call your local BRP dealership |
| 35 |
210262040 |
Hex. Flange Screw M6 X 20 |
| 36 |
210262550 |
Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 37 |
224061121 |
Flat Washer |
| 38 |
515176358 |
Ground Wire |
| 39 |
515176795 |
Tie Rap Mount (screwable) |
| 40 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 41 |
293750002 |
Tie Wrap 142 mm |
| 41 |
293750008 |
Tie Wrap 368 mm |
| 41 |
414115200 |
Tie-Rap 180 mm |
