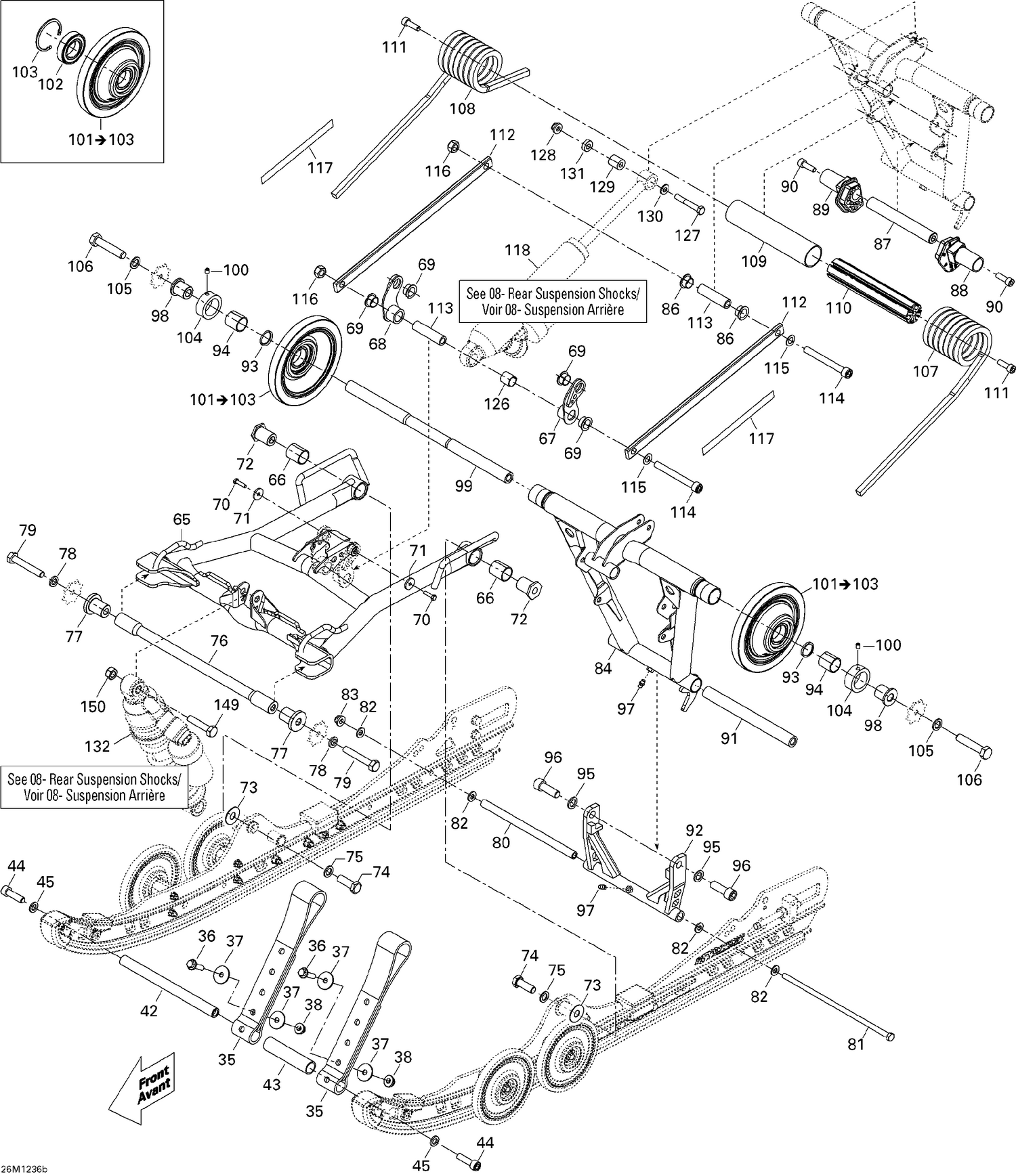

08- Rear Suspension Arm
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 503192360 | Stopper Strap |
| 36 | 207683044 | Hex. Flange Screw M8 X 30 |
| 37 | 224081301 | Flat Washer |
| 38 | 233281414 | Hex. Flange Elastic Nut M8 |
| 42 | 503192115 | RUNNER AXEL - Call your local BRP dealership |
| 43 | 503189265 | Spacer |
| 44 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 45 | 503189564 | Washer |
| 66 | 503191554 | Bushing |
| 67 | 503192706 | LH ROCKER ARM - Call your local BRP dealership |
| 68 | 503192707 | RH ROCKER ARM - Call your local BRP dealership |
| 69 | 503191555 | Swivel Bushing |
| 70 | 207152044 | Hex. Screw M5 X 20 |
| 71 | 250200016 | Washer |
| 72 | 503191966 | Lower Axle |
| 73 | 503190656 | Washer |
| 74 | 250000537 | Hex. Cap Screw M12 X 35 This part replaces 250000225. |
| 75 | 503189276 | Washer |
| 76 | 503192713 | Slide Bushing |
| 77 | 503192721 | Bushing |
| 78 | 503189564 | Washer |
| 79 | 207206534 | Hex. Screw M10 X 65, Scotch Grip |
| 80 | 503189156 | Pivot Arm Axle |
| 81 | 503192440 | Bolt M8 X 248mm |
| 82 | 503192494 | Washer |
| 83 | 250100131 | Elastic Flange Nut M8 |
| 84 | 503193126 | Rear Arm |
| 86 | 503191555 | Swivel Bushing |
| 87 | 503191178 | Spring Cam Axe |
| 88 | 503191191 | LH Spring Cam |
| 89 | 503191190 | RH Spring Cam |
| 90 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 91 | 503192095 | Lower Shaft |
| 92 | 503192701 | Pivot Arm |
| 93 | 503191774 | Washer |
| 94 | 503191773 | Bushing |
| 95 | 503189148 | Washer |
| 96 | 205523587 | Socket Head Screw Scotch Grip Din.912 |
| 97 | 408200700 | Grease Fitting |
| 98 | 503191775 | Bushing |
| 99 | 503191776 | Upper Shaft |
| 100 | 206260844 | Socket Set Screw M6 X 8 |
| 102 | 503191778 | Ball Bearing |
| 103 | 415129598 | Retaining Ring |
| 104 | 503191782 | Retaining Ring |
| 105 | 503189276 | Washer |
| 106 | 207226044 | HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 107 | 503191615 | LH Spring, Square |
| 108 | 503191614 | RH Spring, Square |
| 109 | 503191345 | Plastic Bushing |
| 110 | 503191344 | Spring Axle |
| 111 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 112 | 503192712 | ROD_LINK - Call your local BRP dealership |
| 113 | 503191192 | Bar Axle |
| 114 | 205009044 | Socket Screw M10 X 90 |
| 115 | 503175800 | Washer |
| 116 | 232500416 | Elastic Stop Nut M10 |
| 117 | 516005609 | Shock Position Decal This part replaces 516004619. |
| 118 | Not | Available As Spare Part - See 08- Rear Suspension Shocks |
| 126 | 505072663 | Leg Cushion |
| 127 | 207085586 | Hex. Screw M8 X 55 |
| 128 | 233281416 | Hex. Elastic Flange Nut M8 |
| 129 | 414936000 | Bushing |
| 130 | 503189157 | Washer |
| 131 | 503190526 | Spacer |
| 132 | Not | Available As Spare Part - See 08- Rear Suspension Shocks |
| 149 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
