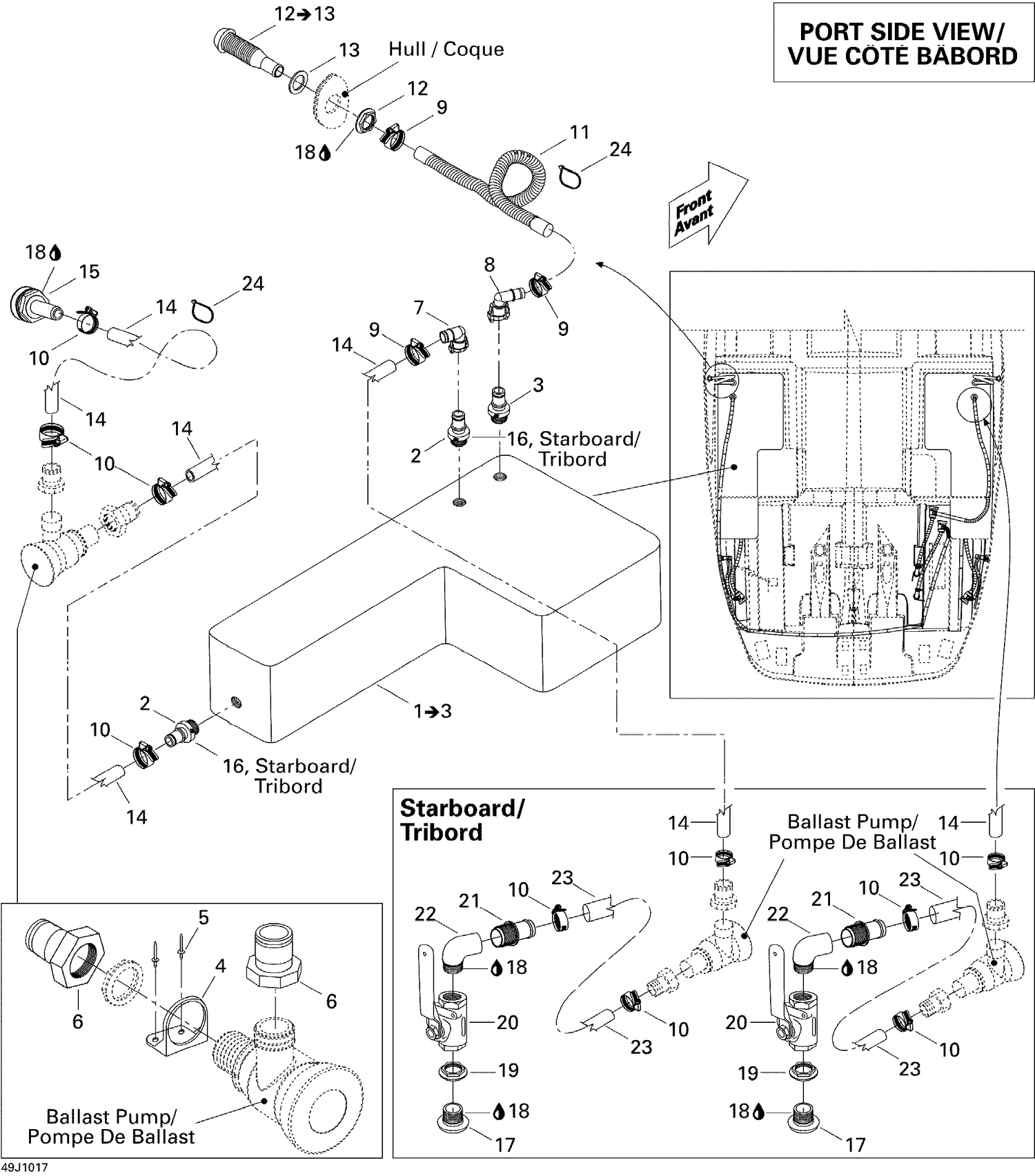

| Ref | Part Number | Description |
|---|
| 2 |
204130265 |
VALVE FITTING 1 - Call your local BRP dealership |
| 3 |
204130188 |
FITTING - Call your local BRP dealership |
| 4 |
204061378 |
MOUNTING PUMP BRACKET - Call your local BRP dealership |
| 5 |
293150065 |
RIVET - Call your local BRP dealership |
| 6 |
204130266 |
PUMP FITTING - Call your local BRP dealership |
| 7 |
204130267 |
ELBOW FITTING 1 - Call your local BRP dealership |
| 8 |
204130189 |
ELBOW FITTING - Call your local BRP dealership |
| 9 |
293650016 |
Tridon Clamp |
| 10 |
293650045 |
Tridon Gear Clamp |
| 11 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 13 |
293250006 |
GASKET - Call your local BRP dealership This part replaces 293250251. |
| 14 |
204061377 |
BALLAST HOSE 1-1/8 - Call your local BRP dealership |
| 15 |
204130269 |
THRU HULL 1-18 STANLESS STEEL - Call your local BRP dealership |
| 16 |
204130268 |
STRAIGHT FITTING 1 - Call your local BRP dealership |
| 17 |
204061017 |
THRU HULL FITTING, 3/4 - Call your local BRP dealership |
| 18 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 19 |
204100165 |
Flange Nut 3/4", Bronze |
| 20 |
204061379 |
Shut-OFF Valve |
| 21 |
204300133 |
Hose Fitting - Call your local BRP dealership |
| 22 |
204130270 |
ELBOW FITTING 3/4, YELLOW - Call your local BRP dealership |
| 23 |
204061380 |
RUBBER HOSE, PORT - Call your local BRP dealership |
