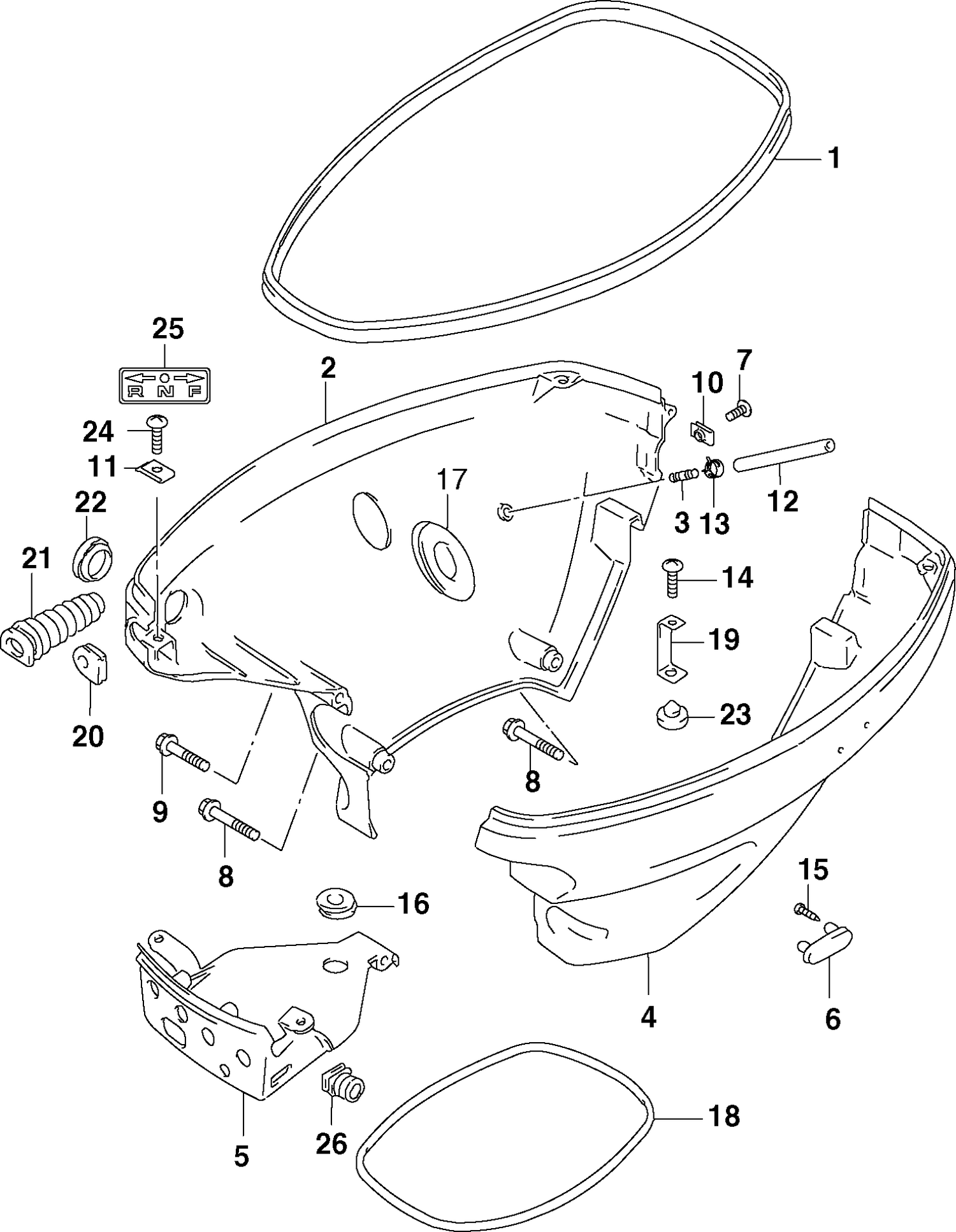

LOWER ENGINE COVER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033207 | CAOUTCHOUC, CAPOT LATÉRAL |
| 6 | 5032135 | PROTECTION, CAPOT LATÉRAL |
| 7 | 5032944 | SCREW (6X16) |
| 8 | 5032947 | SCREW (6X55) |
| 9 | 5032948 | SCREW (6X75) |
| 11 | 5032952 | Nut |
| 14 | 5031690 | VIS |
| 16 | 5033208 | JOINT, VIDANGE CAPOT LATÉRAL |
| 17 | 5033209 | BOUCHON, VIDANGE CAPOT LATÉRAL |
| 19 | 5033213 | HOLDER, SIDE COVER |
| 20 | 5033225 | GROMMET, REMOTE CABLE |
| 21 | 5033226 | GROMMET, CLUTCH LINK |
| 22 | 5032999 | FICHE |
| 23 | 5033021 | CUSHION |
| 24 | 5031690 | VIS |
