Parts Catalog

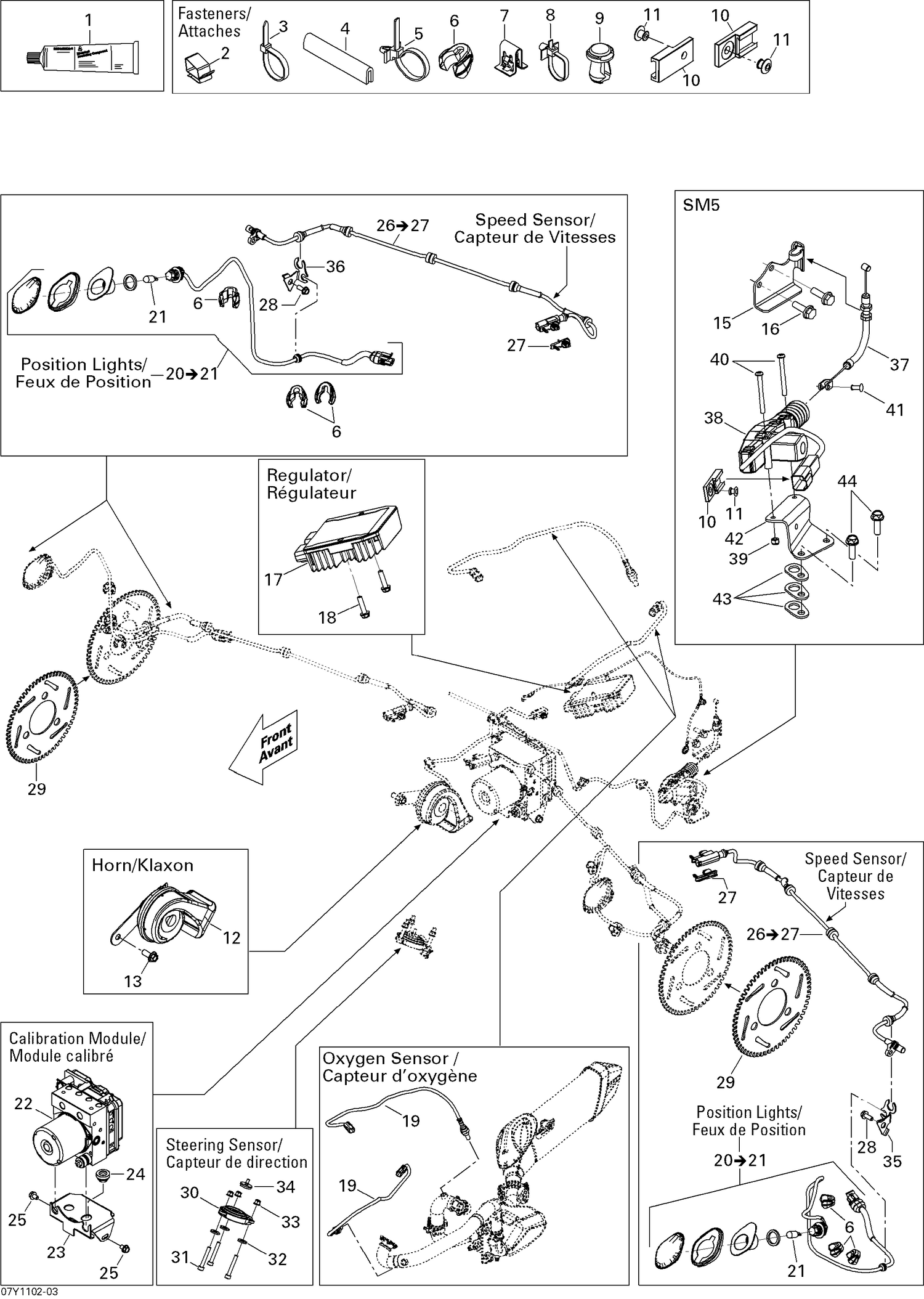

10- Electrical Accessories, Front

Parts (40)

Ref	Part Number	Description
1	219704453	Was 293550004 Dielectric Grease, 150 g
2	414227300	Clip
3	414115200	Tie-Rap 180 mm
3	515175220	Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership
4	219704354	Trim 1000Mm Long
5	293750009	Tie-Rap 173 mm
6	710001452	WIRE BRACKET - Call your local BRP dealership
8	710002197	UNLOCKING CLIP - Call your local BRP dealership
9	293150230	Tuflok Plastic Rivet This part replaces 293150089.
10	270000141	Clip
11	390402400	Pop Rivet 3/16"
12	710004229	HORN - Call your local BRP dealership This part replaces 710002318.
13	207682044	Hex. Flange Screw M8 X 20
15	XXX	Not Available As Spare Parts
16	XXX	Not Available As Spare Parts
17	710001191	Voltage Regulator
18	210262550	Hex. Flange Forming Screw M6 X 25 This part replaces 210262580.
19	707600872	Oxygen Sensor
21	410922994	BULB 5W. - Call your local BRP dealership
22	219800097	VSS Hydraulic Unit
23	705600602	MODULE BRACKET - Call your local BRP dealership
24	710000938	STOPPER - Call your local BRP dealership
25	210261250	Hex. Flange Screw M6 X 12 This part replaces 210261280.
27	219800059	Speed Sensor Clip
28	210261650	Hex. Flange Screw M6 X 16 This part replaces 210261680.
29	705600436	TONE WHEEL - Call your local BRP dealership
30	709400363	Steering Position Sensor
31	205053588	Socket Head Screw M5 X 35
32	234051410	Flat Washer M5
33	233251434	Flange Elastic Nut M5 This part replaces 233251414.
34	709400362	ENCODER MAGNET - Call your local BRP dealership
35	710002019	LH WIRE SUPPORT - Call your local BRP dealership
36	710002018	RH WIRE SUPPORT - Call your local BRP dealership
37	XXX	Not Available As Spare Parts
38	XXX	Not Available As Spare Parts
39	XXX	Not Available As Spare Parts
40	XXX	Not Available As Spare Parts
41	XXX	Not Available As Spare Parts
42	XXX	Not Available As Spare Parts
43	XXX	Not Available As Spare Parts
