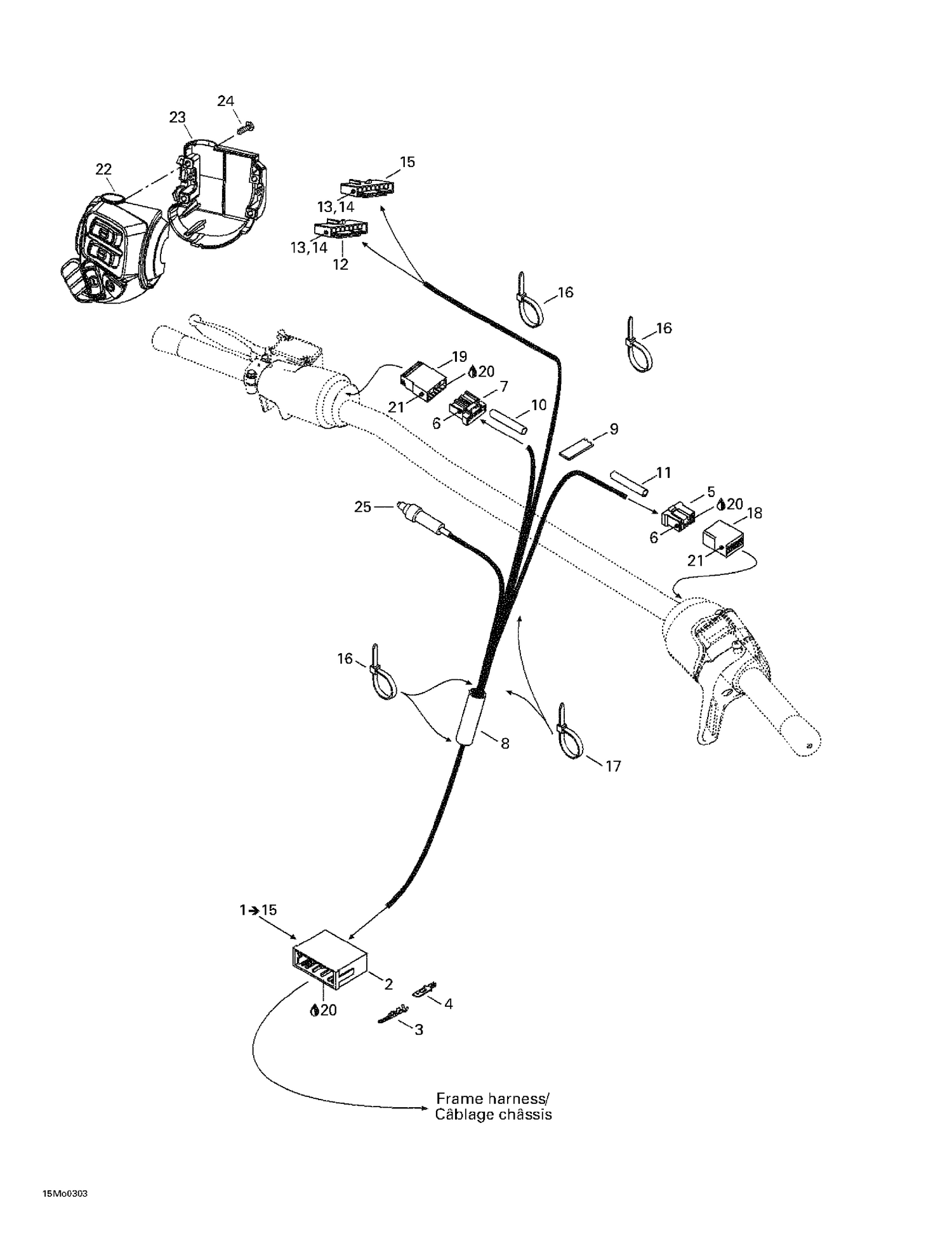

| Ref | Part Number | Description |
|---|
| 2 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 3 |
515175232 |
Male Terminal |
| 4 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 5 |
515175819 |
Female Terminal Housing, 8 Circuits |
| 6 |
515175231 |
Female Terminal |
| 7 |
515175543 |
Female Terminal Housing, 6 Circuits |
| 8 |
415079000 |
Tubing 10 mm |
| 9 |
293740005 |
Tape |
| 10 |
219704427 |
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - Tubing 10 mm |
| 12 |
515175807 |
FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 13 |
515175809 |
FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 14 |
515175808 |
FEMALE TERMINAL - Call your local BRP dealership |
| 15 |
515175810 |
FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 16 |
414115200 |
Tie-Rap 180 mm |
| 17 |
293750008 |
Tie Wrap 368 mm |
| 18 |
515175817 |
Male Terminal Housing, 8 Circuits |
| 19 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 20 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 21 |
515175232 |
Male Terminal |
| 23 |
515175926 |
Switch Housing Plate |
| 24 |
250000263 |
Torx Screw #8-18 This part replaces 250000100. |
