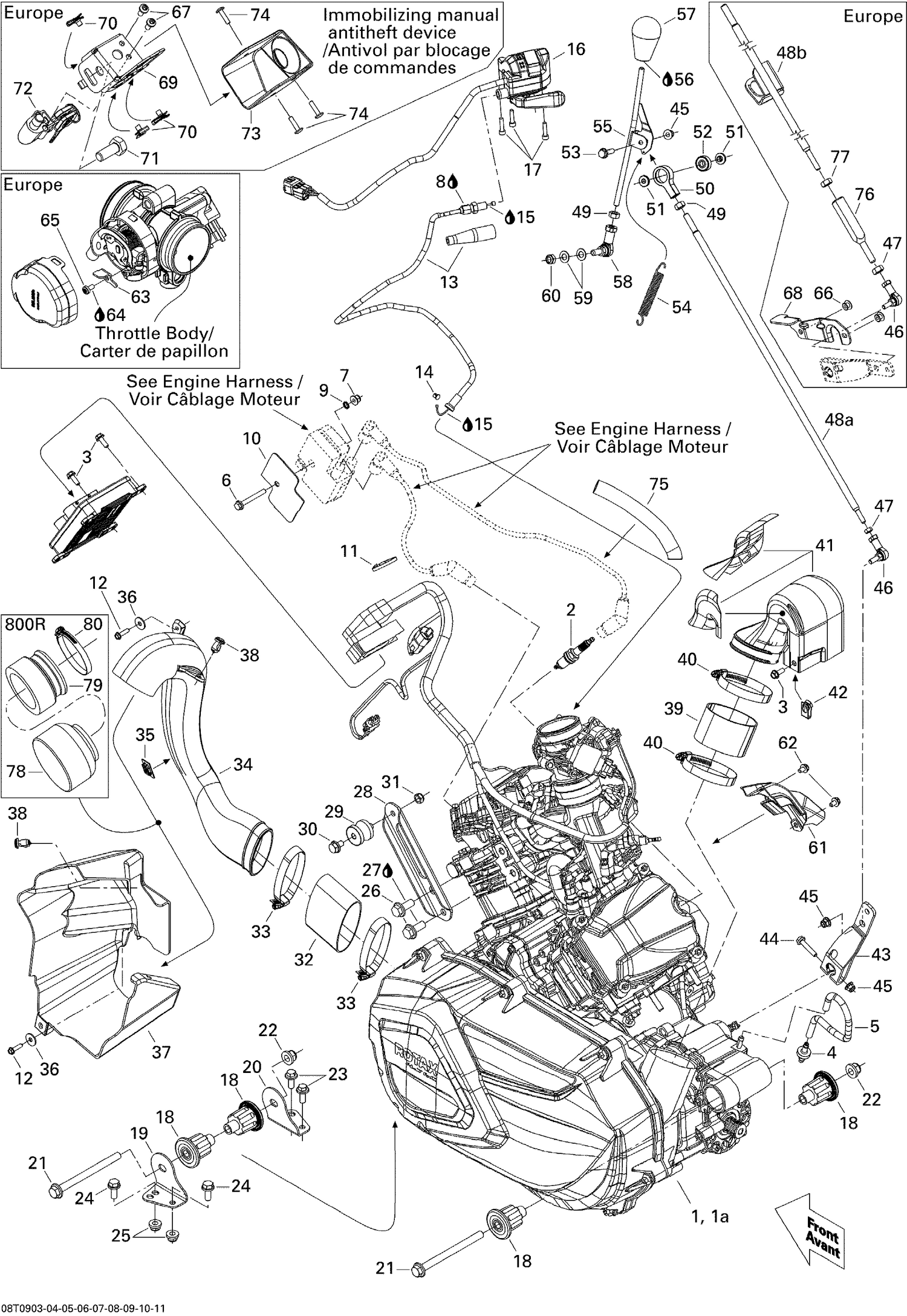

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Rotax 4 Stroke Engine, 500 EFI |
| 1a |
420049038 |
LONG BLOCK, 500 EFI - Call your local BRP dealership This part replaces 420049030. |
| 2 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
| 3 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 4 |
275500398 |
Check Valve |
| 5 |
219704360 |
Hose 6 Mm 15000Mm Long |
| 6 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 9 |
234461608 |
External Serrated Lock Washer 6 mm |
| 10 |
710000073 |
Insulator Pad |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
250000992 |
Screw-Forming Hex.Hd.Fl.Bzn M5 X 20 This part replaces 210252040. |
| 13 |
707000393 |
Throttle Cable |
| 14 |
707000434 |
Cable Guide |
| 15 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 16 |
707000595 |
Throttle Handle |
| 17 |
205052588 |
Socket Head Screw M5 X 25 |
| 18 |
707001169 |
Vibration Damper This part replaces 707000426. |
| 19 |
707000802 |
ENGINE BRACKET - Call your local BRP dealership This part replaces 707000364. |
| 20 |
707000803 |
ENGINE BRACKET - Call your local BRP dealership This part replaces 707000396. |
| 21 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 22 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 23 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 24 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 26 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
707000883 |
UPPER ENGINE BRACKET, BLACK - Call your local BRP dealership This part replaces 707000371. |
| 29 |
707000949 |
Rubber Isolator This part replaces 274000839. |
| 30 |
207581046 |
Flange Screw M8 x 10, Scotch Grip |
| 31 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 32 |
707002585 |
Flexibale Adaptor This part replaces 707000719. |
| 33 |
293650091 |
Norma Clamp |
| 34 |
706600008 |
AIR INLET - Call your local BRP dealership |
| 35 |
293750040 |
Tie-rap Mount (square - self-adhsive) |
| 36 |
250200082 |
Flat Washer This part replaces 391302000. |
| 37 |
707000779 |
WATER DEFLECTOR - Call your local BRP dealership This part replaces 707000461. |
| 38 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 39 |
707000789 |
Adaptor This part replaces 706600007. |
| 40 |
293650118 |
Norma Gear Clamp This part replaces 514052859. |
| 41 |
707000459 |
AIR OUTLET ASS'Y - Call your local BRP dealership |
| 42 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 43 |
707000691 |
Lever |
| 44 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 45 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 46 |
707000545 |
LH BALL JOINT - Call your local BRP dealership |
| 47 |
232066414 |
LH HEX. NUT M6 - Call your local BRP dealership |
| 48a |
707000579 |
THREADED ROD - Call your local BRP dealership |
| 49 |
232081414 |
Hex. Nut M8 |
| 50 |
707000575 |
PIVOT - Call your local BRP dealership |
| 51 |
707000576 |
BUSHING - Call your local BRP dealership |
| 52 |
293350039 |
BALL BEARING - Call your local BRP dealership |
| 53 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 54 |
707000577 |
Spring |
| 55 |
707000783 |
Lever Arm This part replaces 707000578. |
| 56 |
293800060 |
Loctite 243, 10 ml |
| 57 |
705500022 |
LEVER BUTTON - Call your local BRP dealership |
| 58 |
707001959 |
RH Ball Joint This part replaces 707000546. |
| 59 |
506151252 |
Washer |
| 60 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 61 |
707000410 |
Cover OPS |
| 62 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
