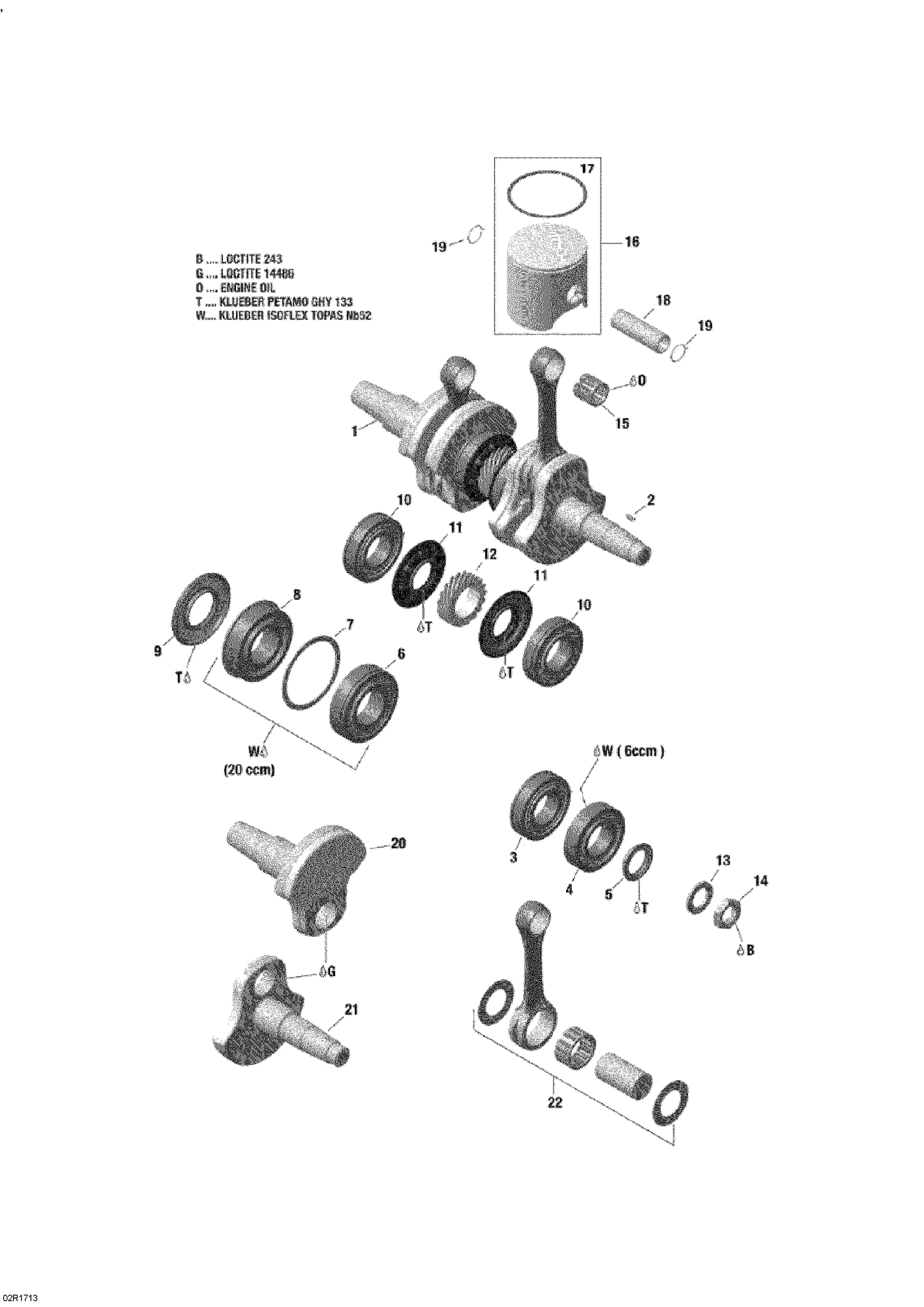

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| G |
Not |
Available As Spare Part - Loctite 648 |
| O |
Not |
Available As Spare Part - Engine Oil |
| T |
Not |
Available As Spare Part - Grease |
| 2 |
420246015 |
Woodruff Key |
| 3 |
420832175 |
Ball Bearing |
| 4 |
420832575 |
Ball Bearing 6207 |
| 6 |
420832672 |
Ball Bearing Sealed, 6208 This part replaces 420832602. |
| 7 |
420926190 |
Washer |
| 8 |
420832702 |
Ball Bearing |
| 10 |
420832175 |
Ball Bearing |
| 12 |
420834565 |
CENTRAL GEAR - Call your local BRP dealership |
| 13 |
420945759 |
Lock Washer |
| 15 |
420832030 |
Needle Bearing |
| 17 |
420815416 |
Semi-Trapez Ring |
| 18 |
420916480 |
Piston Pin |
| 20 |
Not |
Available As Spare Part - Crankshaft (PTO Side) |
| 21 |
Not |
Available As Spare Part - Crankshaft (MAG Side) |
| 22 |
420892568 |
Rod Repair Kit (MAG Side) |
| 22 |
420892569 |
Rod Repair Kit (PTO Side) |
