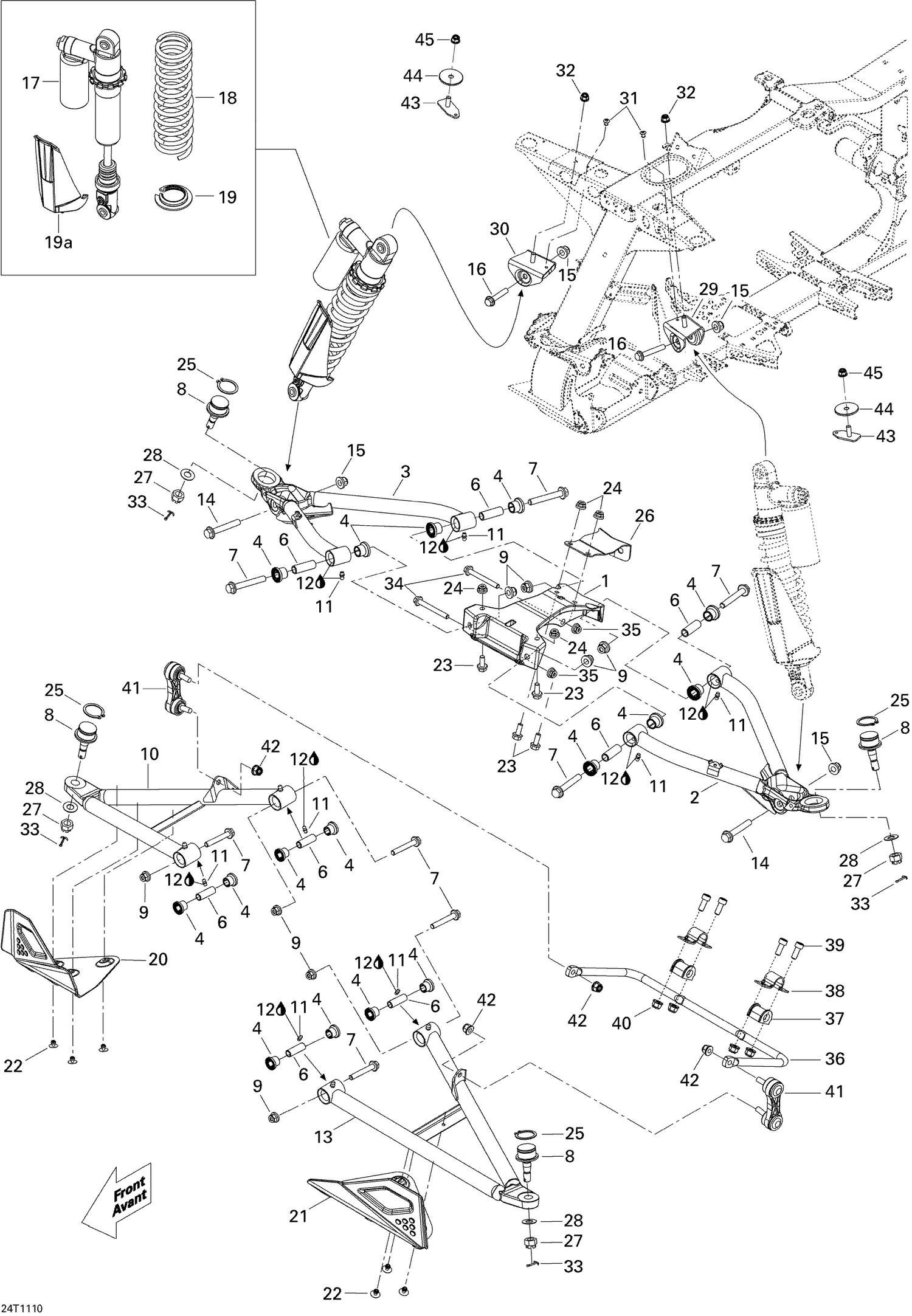

| Ref | Part Number | Description |
|---|
| 1 |
706201360 |
Upper Arm Bracket This part replaces 706200476. |
| 2 |
706201209 |
LH PAINT UPPER ARM - Call your local BRP dealership |
| 3 |
706201212 |
RH PAINT UPPER ARM - Call your local BRP dealership |
| 4 |
706200181 |
Bushing |
| 6 |
706201587 |
Sleeve This part replaces 706200678. |
| 7 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 8 |
706200653 |
Ball Joint |
| 9 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 10 |
706201047 |
ARM_SUSPENSION RH ECOAT - Call your local BRP dealership |
| 11 |
408200700 |
Grease Fitting |
| 12 |
293550010 |
Synthetic Grease, 400 G |
| 13 |
706201045 |
ARM_SUSPENSION LH ECOAT - Call your local BRP dealership |
| 14 |
207606536 |
Hex. Flange Screw M10 X 65 This part replaces 207606546. |
| 15 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 16 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 17 |
706200672 |
FRONT SHOCK - Call your local BRP dealership |
| 18 |
706200827 |
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership |
| 19 |
706000567 |
Spring Stopper |
| 19a |
706201286 |
ROD PROTECTOR - Call your local BRP dealership |
| 20 |
706201670 |
RH Protector This part replaces 706200616. |
| 21 |
706201669 |
LH Protector This part replaces 706200615. |
| 22 |
293150104 |
Pop Rivet 3/16" |
| 23 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 24 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 25 |
293370009 |
Circlip 32 mm |
| 26 |
706201014 |
BRACKET - Call your local BRP dealership |
| 27 |
250100099 |
Nut M12 |
| 28 |
706200281 |
Hardened Washer |
| 29 |
706201039 |
LH UPPER ARM BRACKET - Call your local BRP dealership |
| 30 |
706201040 |
RH UPPER ARM BRACKET - Call your local BRP dealership |
| 31 |
390402300 |
Pop Rivet 3/16" |
| 32 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 33 |
211400017 |
Cotter Pin |
| 34 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 35 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 36 |
706200777 |
SWAY BAR - Call your local BRP dealership |
| 37 |
706201049 |
BUSHING - Call your local BRP dealership |
| 38 |
506095800 |
CLAMP - Call your local BRP dealership |
| 39 |
205082044 |
Socket Head Screw M8 X 20 |
| 40 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 41 |
706201077 |
BALL JOINT - Call your local BRP dealership |
| 42 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 43 |
706201226 |
Paint Upper Bracket |
| 44 |
706200724 |
SPACER - Call your local BRP dealership |
