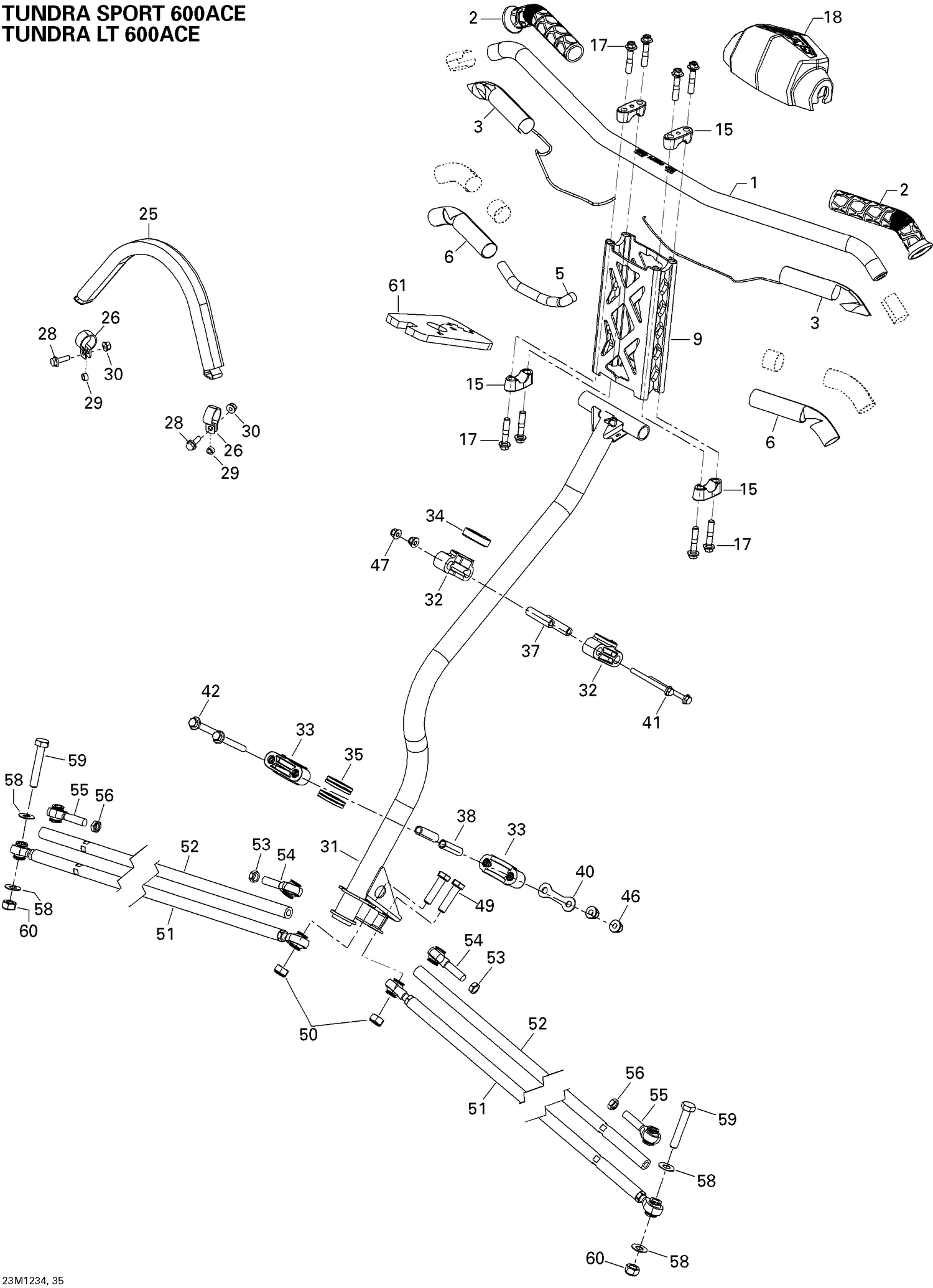

07- Steering
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152710 | BLACK HANDLE BAR - Call your local BRP dealership This part replaces 506152362. |
| 2 | 506152486 | Grip This part replaces 506152226. |
| 3 | 506152484 | Heating Element 20W |
| 5 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 6 | 506152360 | Insulant |
| 9 | 860200821 | Extension Kit ( 205mm ) This part replaces 860200269. |
| 15 | 506152751 | Steering Support This part replaces 506152395. |
| 17 | 250000352 | Hex. Flange Screw M8 X 40 |
| 18 | 506152192 | Steering Pad |
| 25 | 506152115 | Strap Ass'y |
| 26 | 506152536 | Black Support Plate |
| 28 | 207662084 | Hex. Flange Screw M6 X 20 |
| 29 | 506152156 | Bushing |
| 30 | 233261494 | Hex. Flange Elastic Nut M6 |
| 31 | 506152964 | Steering Column This part replaces 506152469. |
| 32 | 506152508 | Upper Half-Housing |
| 33 | 506152217 | Lower Half-Housing |
| 34 | 506152509 | Upper Anti-Vibration Gasket |
| 35 | 506152518 | Lower Vibration Ring |
| 37 | 506152297 | Housing Bushing |
| 38 | 506152388 | Lower Housing Bushing |
| 40 | 506152389 | Stopper Plate |
| 41 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 42 | 207686534 | Hex. Flange Screw M8 x 65 |
| 46 | 233281414 | Hex. Flange Elastic Nut M8 |
| 47 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 49 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 50 | 232500416 | Elastic Stop Nut M10 |
| 51 | Not | Available As Spare Part - Tie-Rod Ass'y |
| 52 | 506152377 | ROD_LINK - Call your local BRP dealership |
| 53 | 506152081 | LH Thread Ball Joint |
| 54 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 55 | 506152019 | RH Threaded Ball Joint |
| 56 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 58 | 506152194 | Washer |
| 59 | 207004544 | Hex. Screw M10 X 45 |
| 60 | 232500416 | Elastic Stop Nut M10 |
